TOORX MSX 60 - Assembly Instructions

Assembly instructions

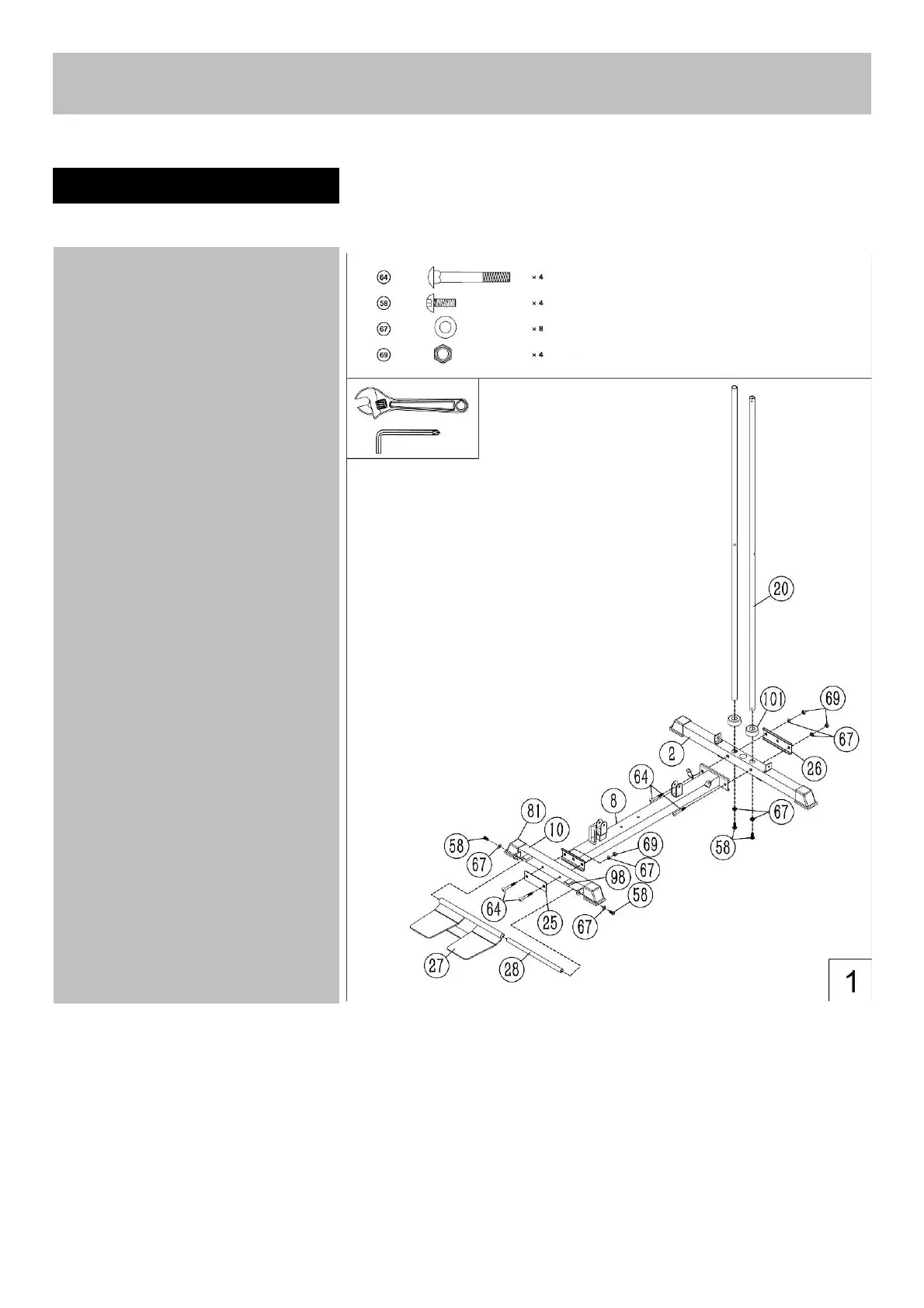

(A) Insert the 2pcs guide rods (20)
into the holes of the rear
stabilizer (2) separately . and
Secure them with 2 pcs Ø10mm
Washers (67) and 2 pcs M10 x
25mm Allen Bolts (58) . Slide the
2pcs rubber bumpers (101) along
the 2 pcs guide rods from the top
to the bottom.
(B) Attach the main base frame (8) to
the rear stabilizer(2), Secure them
with 2pcs M10×70 carriage
bolts(64), one pc bracket(26),
2pcs Ø10 washers(67) and 2 pcs
M10 Aircraft nuts(69).
(C) Attach the front stabilizer(10) to
the main base frame(8), Secure
them with one pc bracket(25),
2pcs M10×70 carriage bolts(64),
2pcsØ10 washers(67) and 2 pcs
M10 aircraft nuts(69).
(D) Attach the foot palte (27) to the
front stabilizer(10), Fix them with
one pc foot plate tube(28), two
pcs M10*25 Allen bolt(58),
2pcsØ10 washer(67)
.
Step 1
