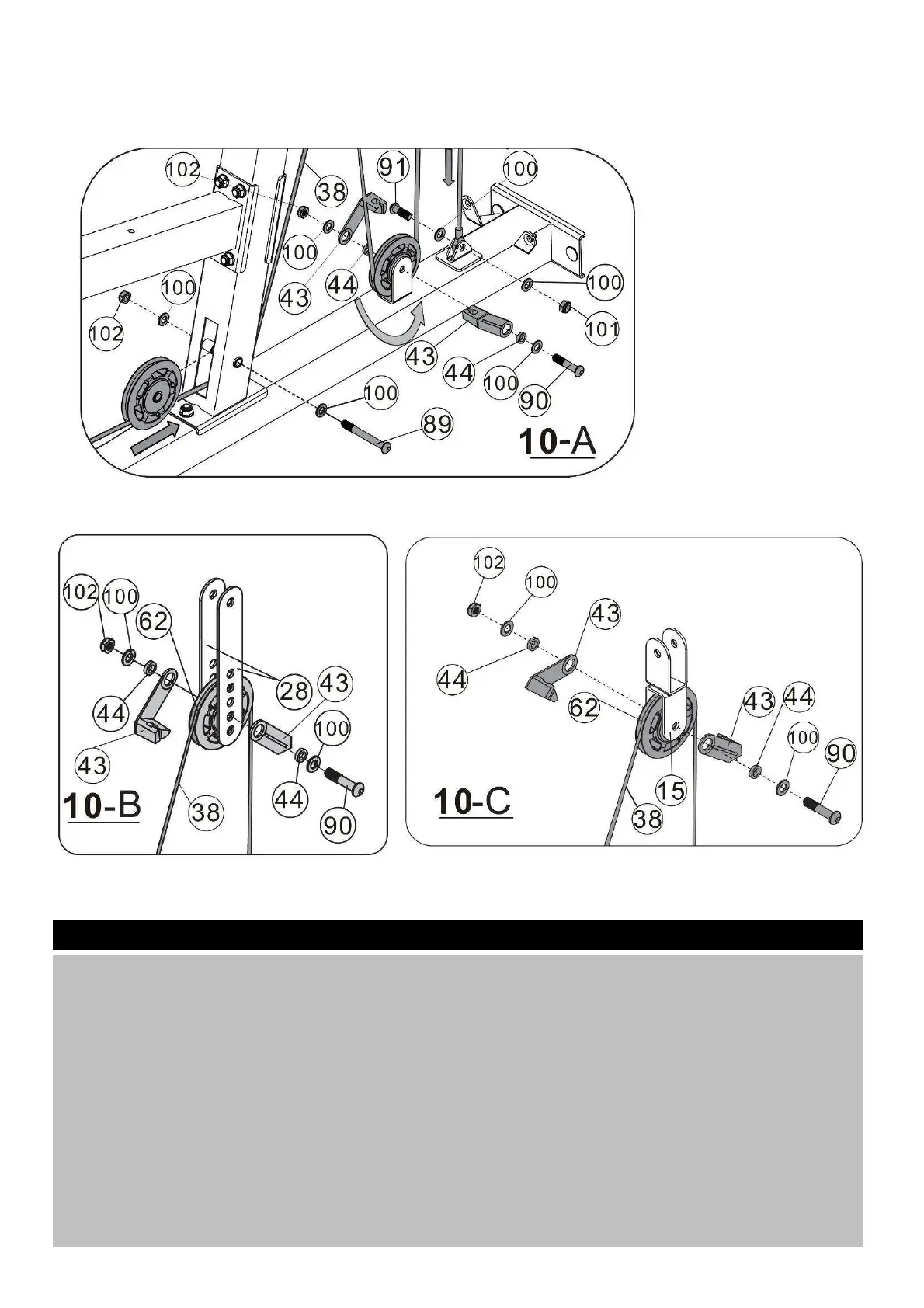

(A) Draw the lower cable(35) through the first opening,make sure that the ball stopper should be in front
of the opening. Place one pc pulley onto the lower cable, Secure the pulley with one pc M10*65
allen bolt(89), 2 pcs Ø10 washers (100) and one pc M10 aircraft nut(102) .
(B) Draw the cable as the diagram shows and reach the angled floating pulley bracket(15),Place one pc
pulley below the cable , and secure the angled floating pulley bracket(15),pulley (62), 2 pcs cable
retainer(43) together with one pc M10*50 Allen bolt(90), 2 pcs Ø10 washers (100),2 pcs cable
retainer bushing (44) and M10 aircraft nut(102).
(C) Place one pc pulley onto the cable and secure it with the same way in (B)
(D) Draw the cable upwards and reach the double floating pulley bracket(28),Repeat the same way in
(B) to install the pulley and 2 pcs cable retainer(43).
(E) Draw the cable around the pulley and downwards , Secure the end with one pc M10*30 allen
bolt(91), 2 pcs Ø10 washers (100) and one pc M10 aircraft(102).
(F) Connect the leg developer(10) and the end of lower cable with 2pcs 7# gourd hook(81) and one pc
15-joint chain(82)
Step 10
