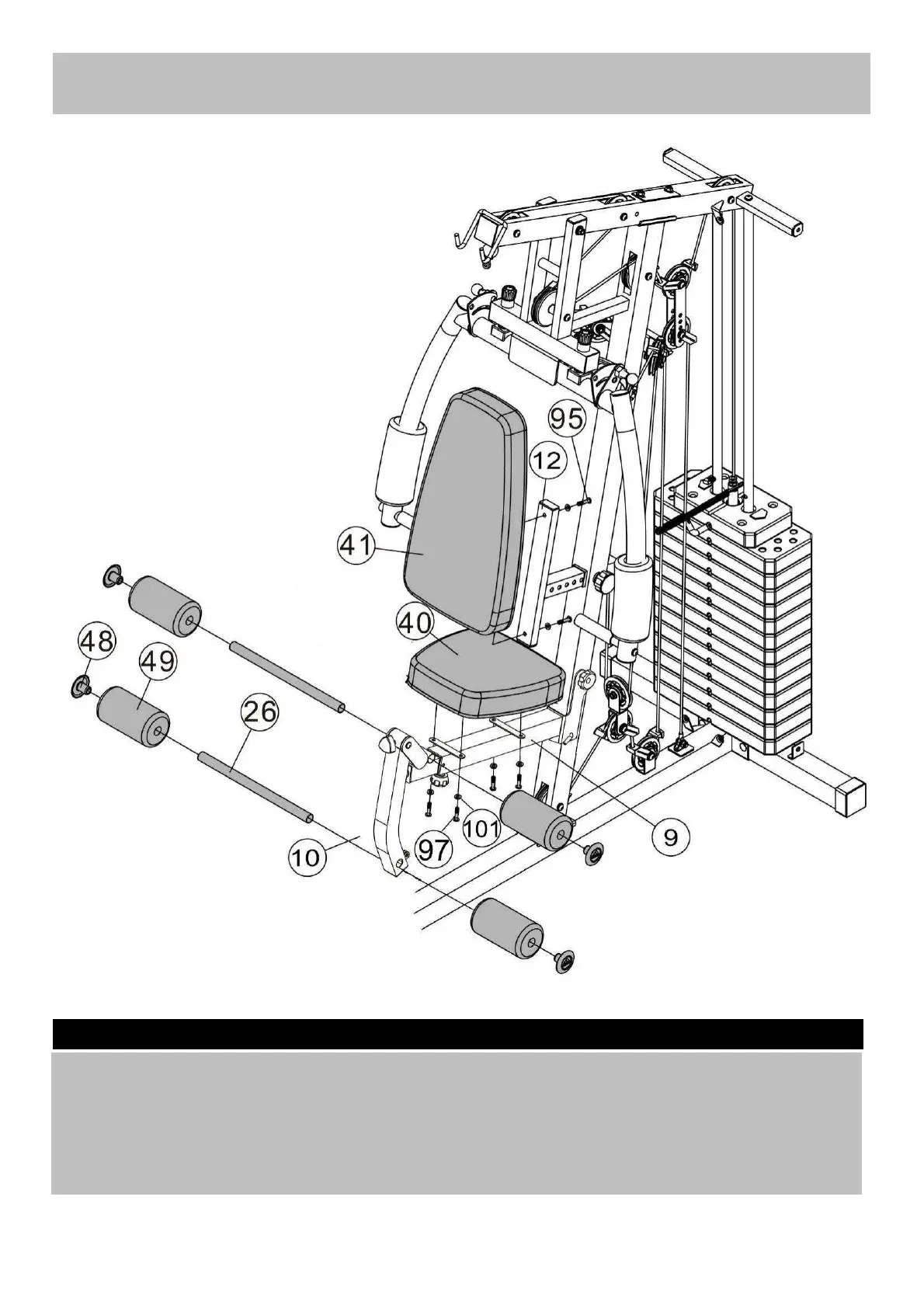

(A) Attach the backrest pad(41) to the backrest pad support(12) , Align the holes and secure them with 2
pcs M8*40 allen bolt(95) and 2 pcs Ø8 washers (101) .
(B) Place the seat pad(40) onto the seat pad support (9), Sucure them with 4pcs Ø8 washer(101) and
4pcs M8*18 allen bolt (97).
(C) Insert the 2 pcs foam roll tube(26) into the holes halfway, and then push the 4pcs foam rolls(49) from
both ends seperately, and then push the foam roll end cap (48).
Step 11
Assembly instructions
19
