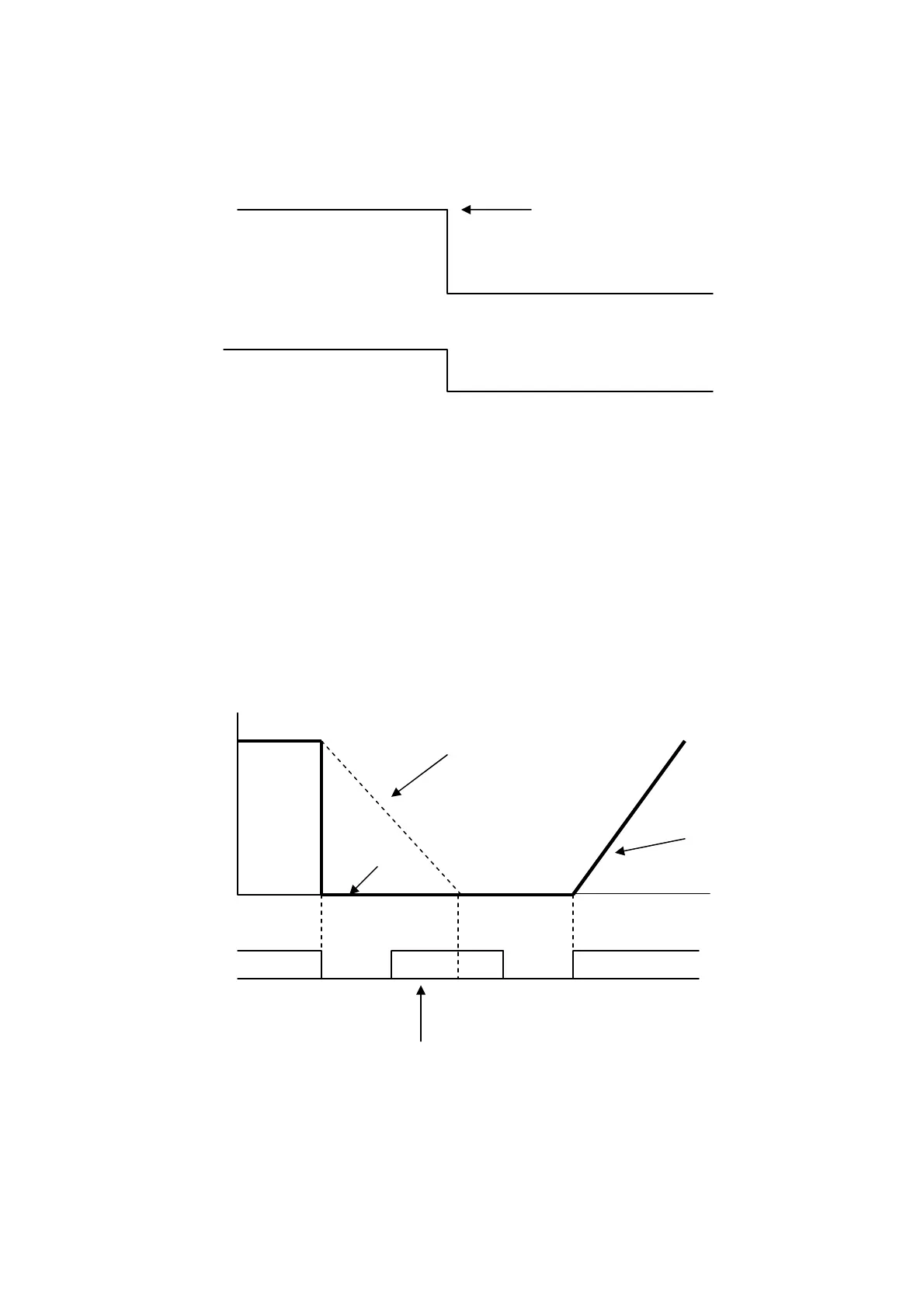

(b) Coast to Stop (H004=1)
Output Frequency Inverter output is shut OFF when stop
Command is input.
Run Command
ON OFF
Upon removal of the FWD (REV) run command, the motor starts coasting.
(2) Coast to Stop with Timer
(a) Coast to Stop with Timer 1 (H004=2)
Example of accel/decal time 1 selection
Output Frequency
Decel Time 1
(H020)
Accel Time 1
Coasting (H019)
Time
FWD (REV) ON ON ON
Run Command
Run Command Disabled
A run command is not accepted while the motor decelerates after a stop command is given. However,
if the time required for the motor to decelerate to a stop is shorter than the time set in constant H053
(minimum baseblock time), a run command is not accepted during the baseblock time.
