mast

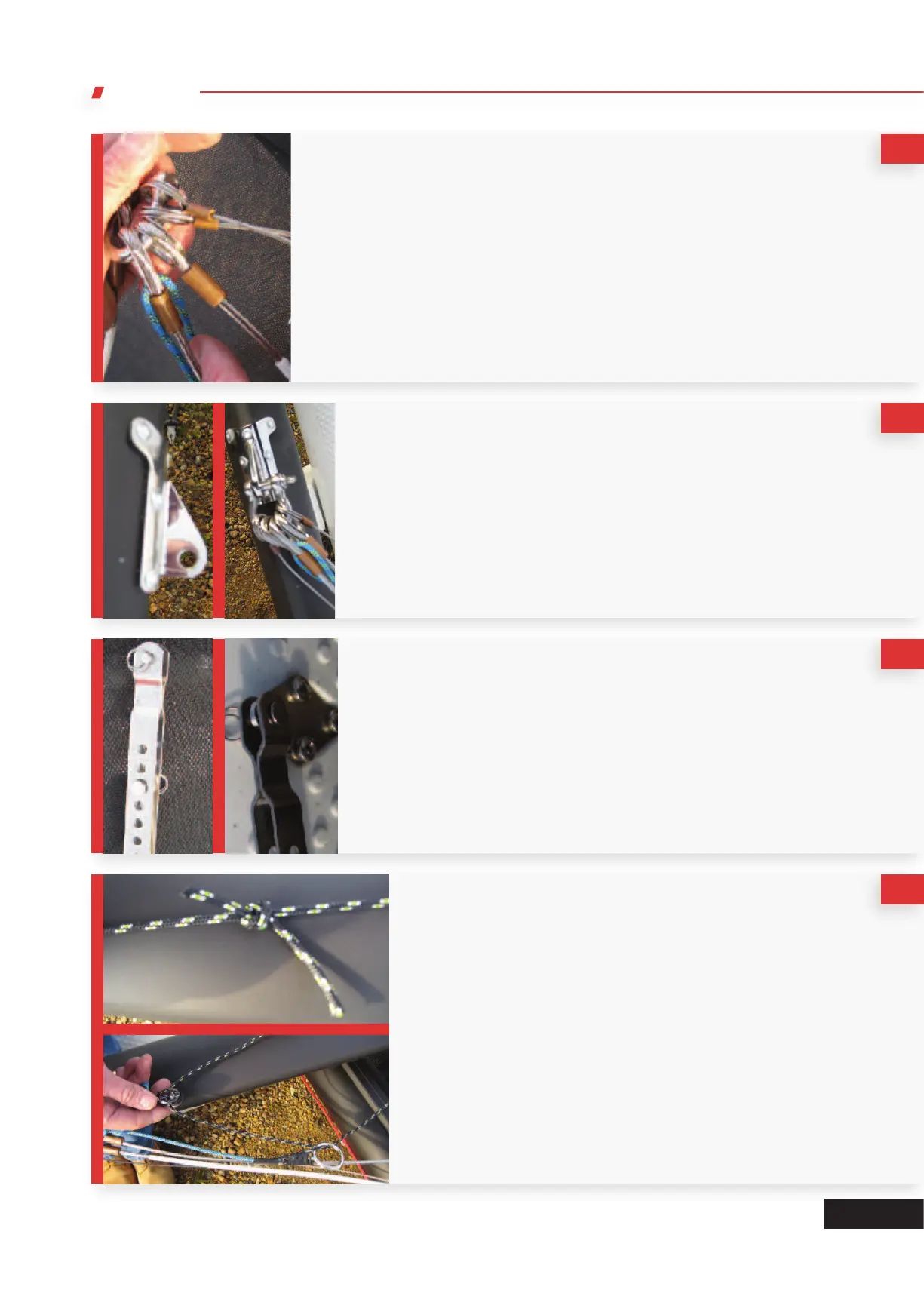

Lay mast section along centre of boat with the top of the
mast pointing towards the back of the boat.
Attach the rigging to the mast using the large bow shackle(1).
The rigging includes;
1x set of shrouds (coated in white plastic)
2x trapeze wires
1x forestay (metal ring and pulley).
located on the front of the mast section. It is important to
tighten this shackle.
Then you need to tidy the rigging lines in readiness for
erecting the mast.
Attach the shroud wires (coated in white plastic) onto the
chain plates on either side of the boat (3) Use the third hole
from the bottom of the chain plates. (4) Then secure chain
plates to the hull as shown.
1
2
3
Lay trapeze wires to either side of the mast, so that they are
roughly in the correct position ready to be attached once the
mast is upright.
Next is the jib halyard, this comes in two parts (5).
Ensure one section is fed through ring (6) and small pulley (7)
on forestay.
4
