Topcon Liquid Systems CM-40 - Page 5

Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 5 / 28
Revision. A Rev. Date 18/01/2022

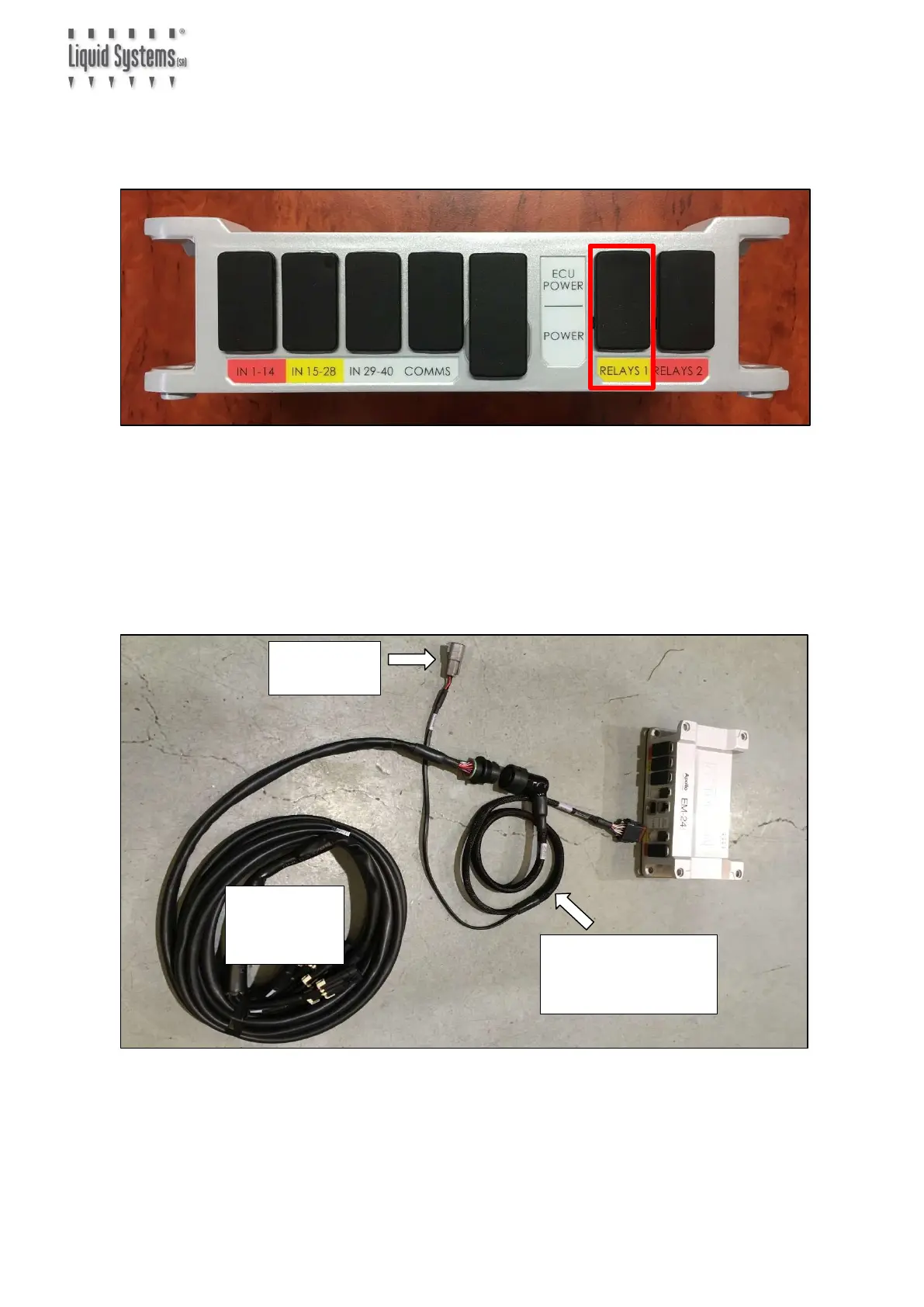

4. Plug Apollo EM-24 Section Adapter Loom (TC-1013025-01) into Relays 1 port on EM-24
ECU
5. Connect the other end of Apollo EM-24 Section Adapter Loom to Section Loom (LL07013
or LL07023). Connect & route Section Extension Looms (LL07014 or LL07021) in between
if additional length is required to reach LQS section module.
Connect Valve Power connector on Apollo EM-24 Section Adapter Loom to Valve Power
receptacle on the Seeder Harness.
Section Loom
(LL07013 or
LL07023)
Apollo EM
-
24 Section
Adapter Loom
(TC-1013025-01)
Valve Power
Connector
