To Mount on a Blade or Screed
With pavers, motor graders, dozers, and scrapers, the LS-B2
attaches to a pole or mast that is mounted on the screed or blade.
Clamp the LS-B2 to the pole just as you clamp it to a pipe.
To Mount the RD-2 Remote Display
Using the head bolts and nuts supplied, mount the RD-2 to either a
vertical or horizontal surface in the cab.

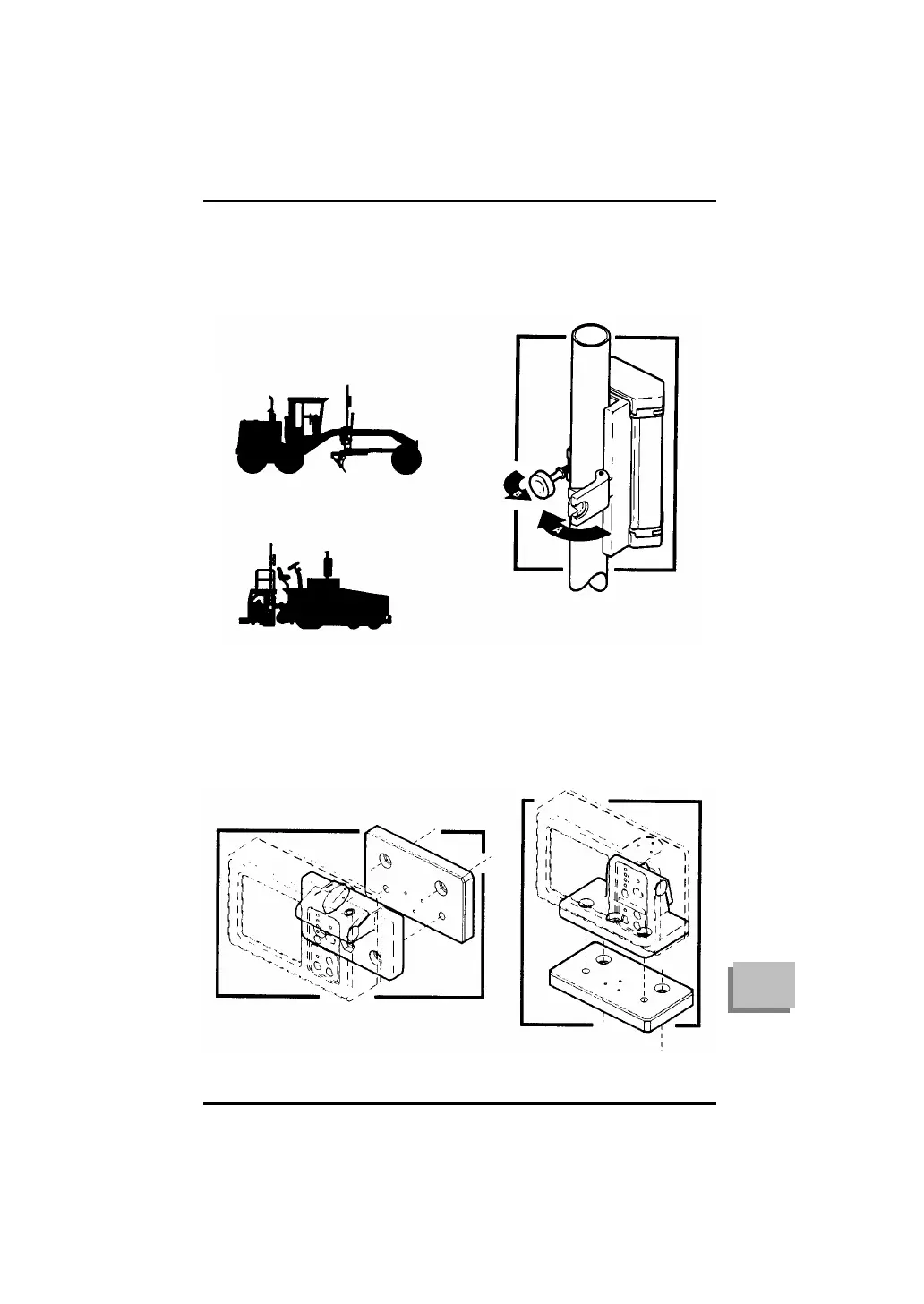

Mounting LS
-
B2
on a Motorgrader
Mounti
ng LS
-
B2
on an Asphalt Paver
To Mount LS
-
B2:
A: Close Bracket Over Pole or Mast.
B: Close Other Half of Bracket so Threaded
Shaft w/Centering Ball Sits Firmly in Slot.
C: Turn Handle Until Tight.
HORIZONTAL MOUNT
VERTICAL MOUNT
