Installation
LS-B2 Operator’s Manual
4
Installation
Mounting the System
Before installing your LS-B2 system, turn to page 7 to confirm that
you have received all system components. If you have not, contact
your local Topcon Laser Systems dealer for help.
The LS-B2 has been fitted with a clamp that attaches the unit to any
round pipe or pole 1.74" to 2.0" (44.45mm to 50.8mm) in diameter
or square pipes with sides from 1.5" to 1.95" (38.1mm to 50mm).
To Mount on a Machine Stick
To mount the LS-B2 on a backhoe or excavator, you must first have
a pipe attached to the machine stick. Weld two brackets to your
stick. Bolt or otherwise attach your mounting pipe to the brackets.
Then, clamp the LS-B2 onto the pipe.

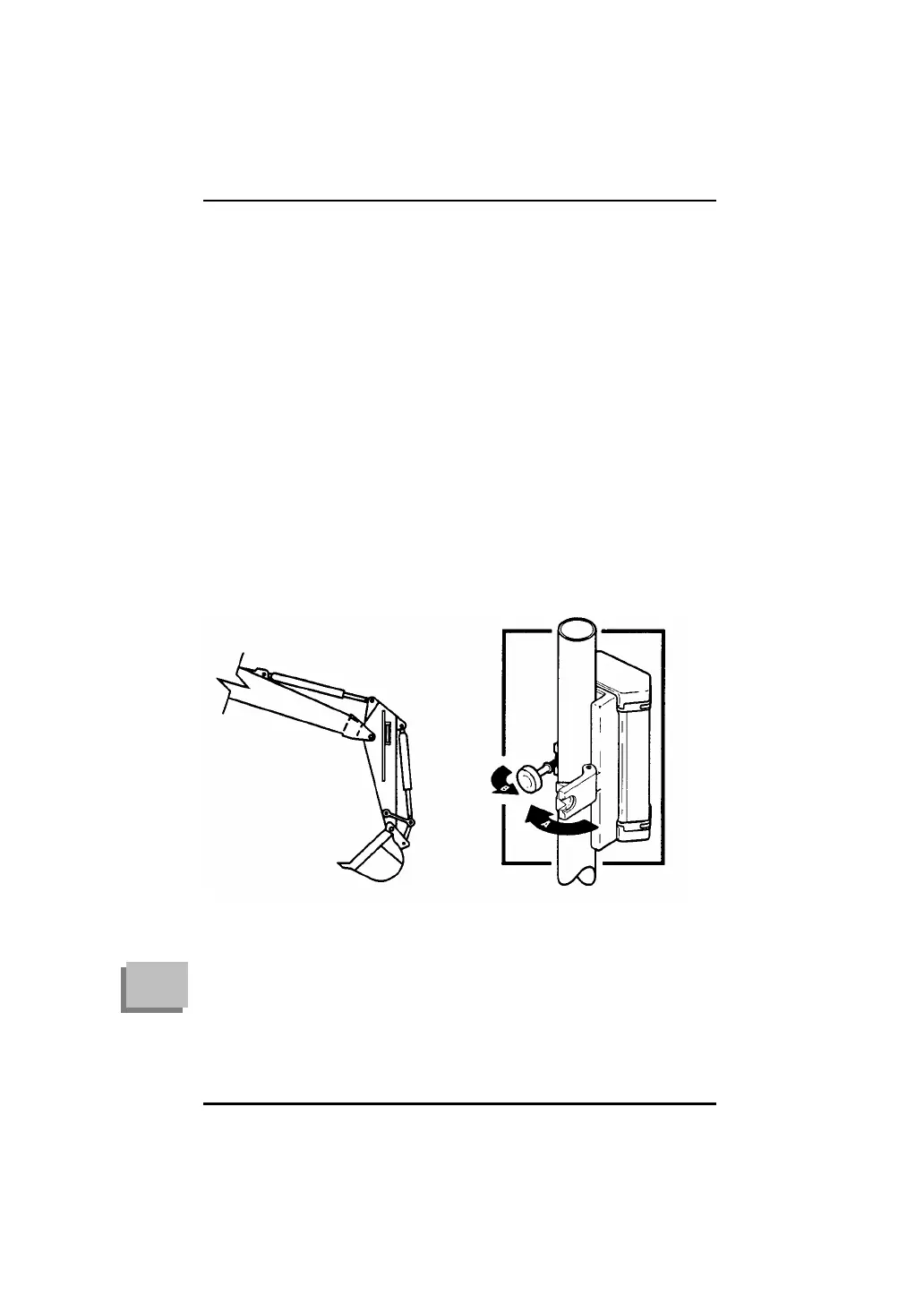

To Mount LS-B2:
A: Close Bracket Over Pipe.
B:
Close Other Half of Bracket so
Threaded Shaft w/Centering Ball Sits
Firmly in Slot.
C: Turn Handle Until Tight.
on Excavator or Backhoe Stick
