Operating the System
To Operate the LS-B2
1 Set-up and power-on the rotating laser.

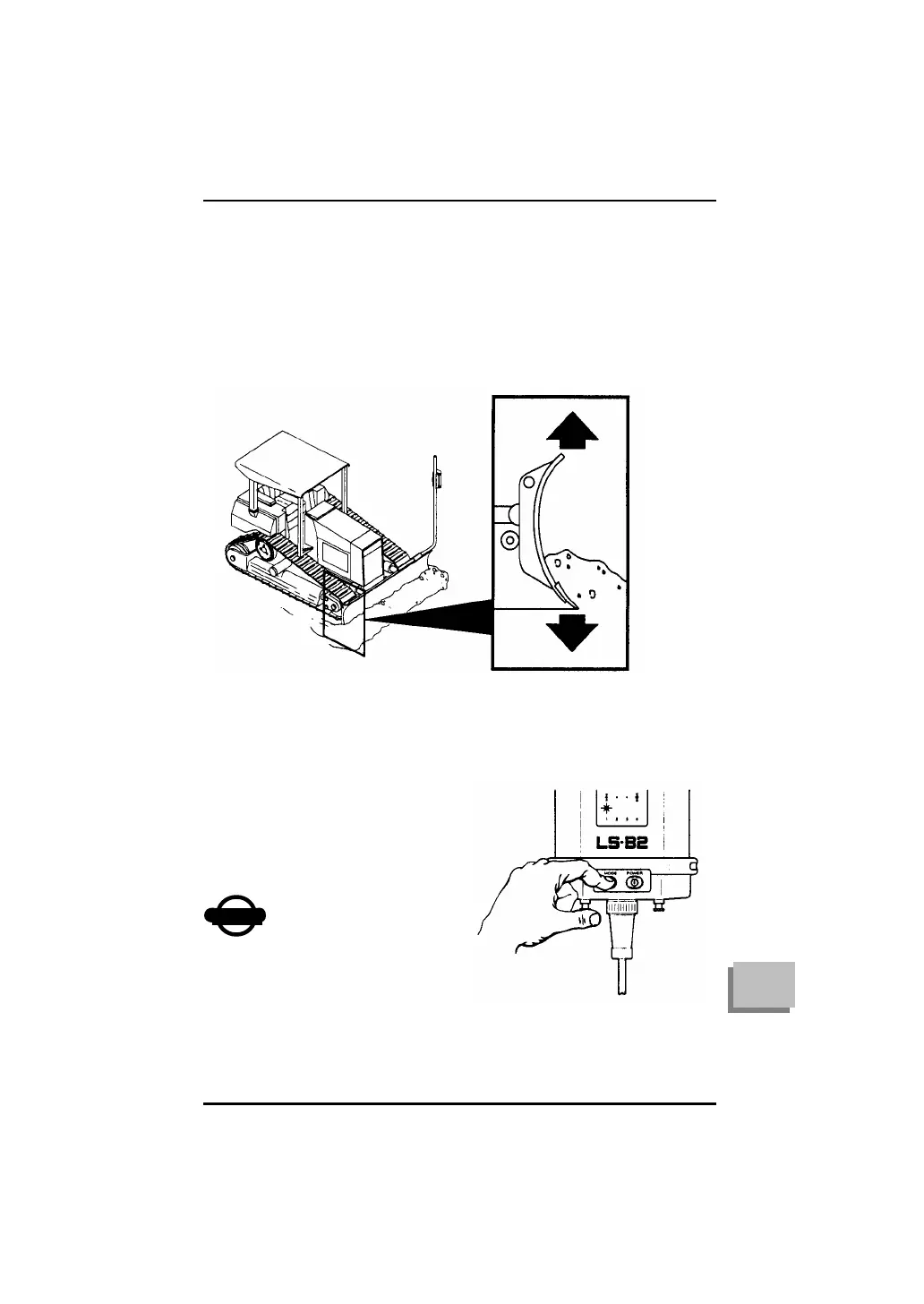

2 Set your machine’s cutting edge at the desired elevation.
SET CUTTING EDGE
AT DESIRED ELEVATION
3 Mount the LS-B2 to the pole or pipe. Connect the LS-
B2 to the machine’s battery with the cable or attach the
BT-39Q battery pack and power-on.
4
Select the desired level of
on-
grade precision from
1 for super-
high precision
to 4 for very rough grading.
See page 20 for details
NOTICE
When cable-
connected, the
On/Off Switch is disabled, and
the LS-B2 is always on. Cable
SELECT LEVEL OF ON-GRADE PRECISION
BY PRESSING THE “MODE” BUTTON
communication always overrides infrared communication.
