63
11. MEASUREMENT WITH AUTO TRACKING

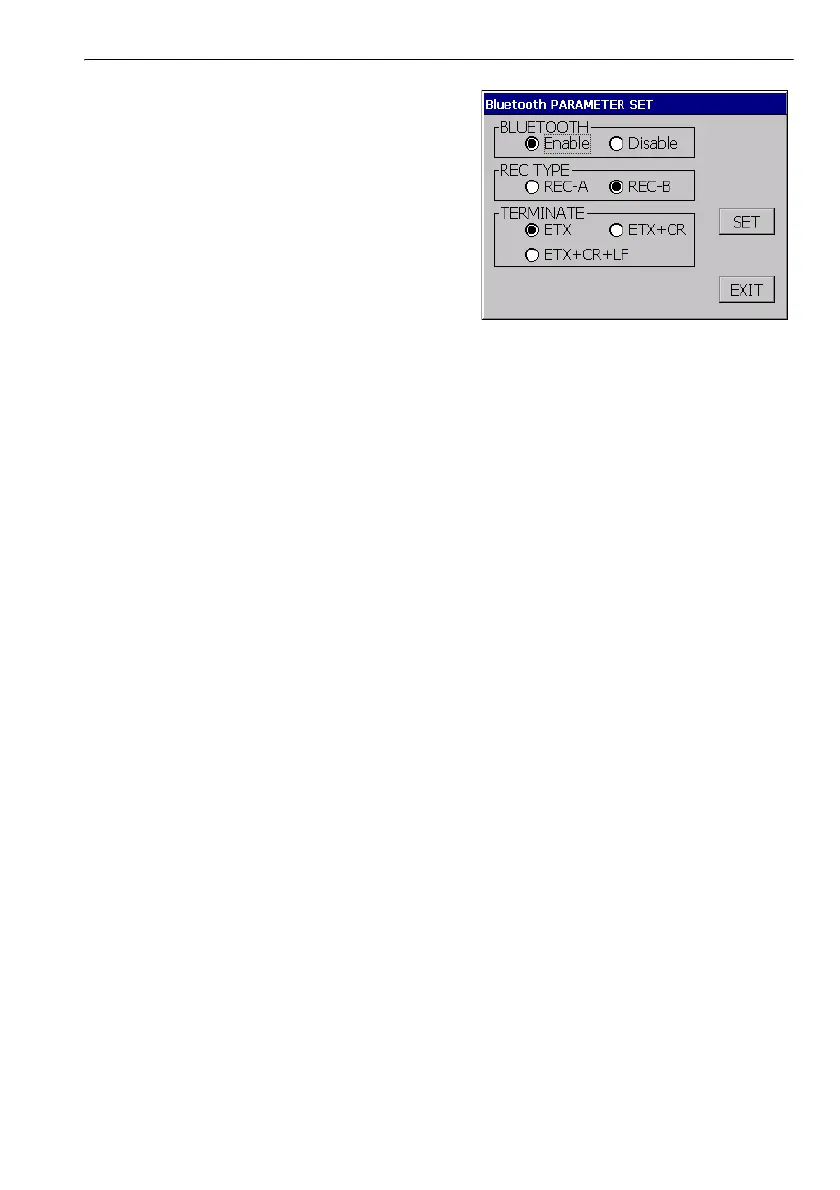

4. Set communication conditions for the data
collector used.
Items set and options (*: Factory setting)
(1) Bluetooth : Enable*/Disable
(2) REC Type : REC-A (newly measured
data is output)/REC-B
(displayed data is output)*
(3) Terminate
& : ETX*/ETX+CR/ETX+CR+LF
C"9.1 Wireless Communication using
Bluetooth Technology & Terminate"
5. Press [SET] to finish settings and return to the
screen in step 2.
$
• Items set and options of pressing [RS-232C] in step 3 are as follows.
Baud rate : 1200/2400/4800/9600*/19200/38400/57600/115200bps
Data bits : 7/8* bits
Parity : Not set*/Odd/Even
Stop bit : 1*/ 2 bits
REC Type : REC-A (newly measured data is output)/REC-B (displayed data is output)*
Terminate : ETX*/ETX+CR/ETX+CR+LF
RTS : Low/High*
