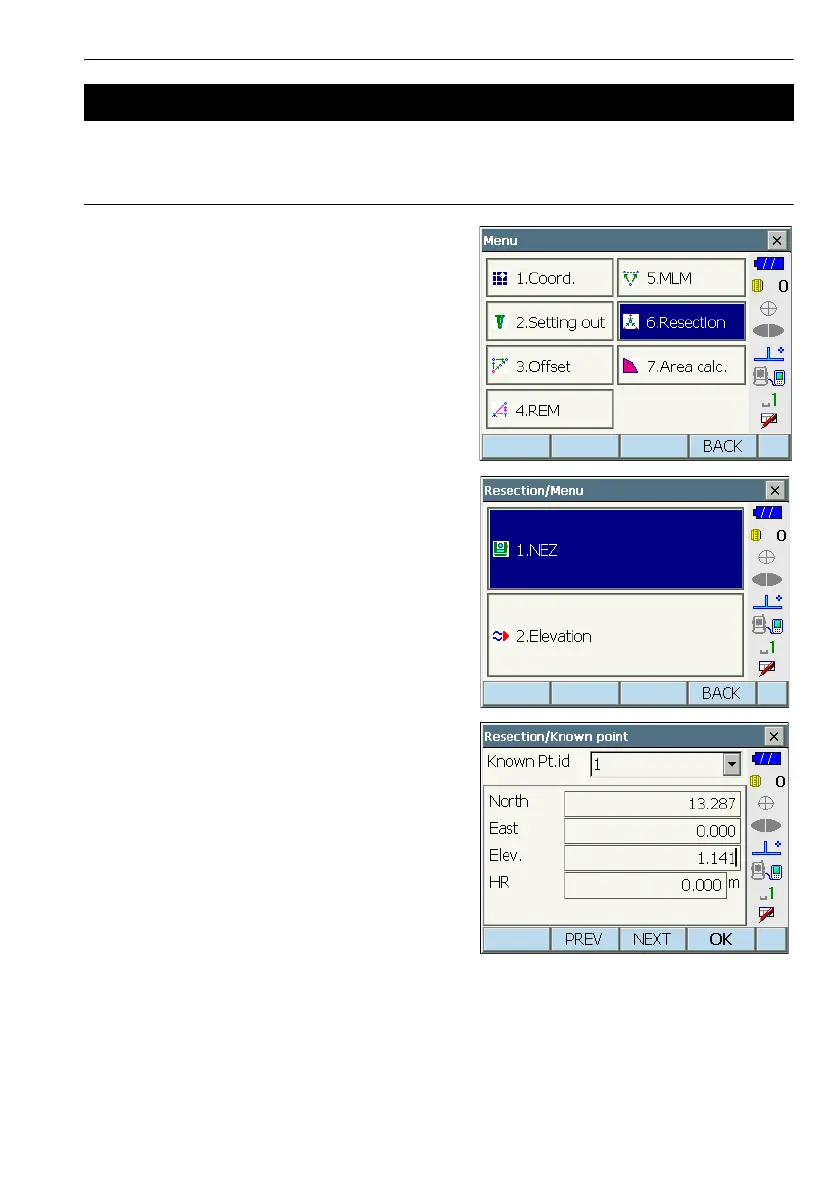

15.
RESECTION MEASUREMENT
N, E, Z of an instrument station is determined b
y the measurement.
PROCEDURE
1.
Select "Resection" in <Menu>.
2.
Select "NEZ" to display <Resection
/Known
point>.
3.
Input the known point.
After setting the coordinates and target height for
the first known point press
[NEXT]
to move to the
second point.
•P
r
e
s
s
[PREV]
to return to settings for the
previous point.
When all required known points have been set,
press
[OK]
.
15.1
Coordinate Resection Measurement
90
92
Table of Contents
Table of Contents
4
Precautions for Safe Operation
7
Precautions
10
Laser Safety Information
13
Product Outline
15
Parts of the Instrument
15
Mode Structure
20
Bluetooth Wireless Technology
21
Basic Operation
23
Basic Key Operation
23
Display Functions
27
Inputting Characters Using the Input Panel
31
Starkey Mode
32
Using the Program Selection Screen
37
Using the Battery
38
Battery Charging
38
Installing/Removing the Battery
39
Setting up the Instrument
41
Centering
41
Levelling
42
Power On/Off
44
Configuring the Touch Panel
45
Resolving Software Issues
46
Powering ON/OFF from an External Instrument
47
Connecting to External Devices
48
Wireless Communication Using Bluetooth Technology
48
Communication between the PS and Companion Device
52
Connection Via RS232C Cable
53
SS Wireless Communication
54
Connecting Via USB Cable
55
Inserting USB Memory
58
Target Sighting
59
Auto Pointing Settings
60
Auto-Pointing Function for Target Sighting
62
Manually Sighting the Target
64
Measurement with Auto Tracking
66
Auto Tracking Settings
66
Stating up External Link and Settings
68
Measurement with Auto Tracking
70
Angle Measurement
73
Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°)
73
Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold)
74
Turning the Instrument from the Reference Angle to a Specified Angle
75
Angle Measurement and Outputting the Data
76
Distance Measurement
77
Returned Signal Checking
77
Using the Guide Light in Distance Measurement
79
Distance and Angle Measurement
80
Distance Measurement and Outputting the Data
81
REM Measurement
82
Coordinate Measurement
84
Entering Instrument Station Data
84
Azimuth Angle Setting
85
3-D Coordinate Measurement
88
Resection Measurement
90
Coordinate Resection Measurement
91
Height Resection Measurement
95
Setting-Out Measurement
100
Using the Guide Light in Setting-Out Measurement
100
Distance Setting-Out Measurement
101
Coordinates Setting-Out Measurement
105
REM Setting-Out Measurement
109
Offset Measurement
111
Offset Single-Distance Measurement
111
Offset Angle Measurement
113
Offset Two-Distance Measurement
115
Missing Line Measurement
118
Measuring the Distance between 2 or more Points
118
Changing the Starting Point
120
Surface Area Calculation
122
Changing the Settings
126
Observation Conditions
126
Instrument Configuration
129
EDM Settings
131
Allocating User-Defined Tabs
135
Customizing Screen Controls
138
Allocating Key Functions
140
Changing Starkey Mode Icons
143
Units
145
Changing Password
146
Restoring Default Settings
147
Date and Time
147
Warning and Error Messages
148
Checks and Adjustments
151
Circular Level
151
Tilt Sensor
152
Collimation
155
Reticle
156
Image Sensor Reticle
158
Optical Plummet
160
Additive Distance Constant
161
Power Supply System
163
Prism System
164
Opptional Accessories
165
Specifications
168
Explanations
175
High Accuracy with the 360° Prism
175
Manually Indexing the Vertical Circle by Face Left, Face Right Measurement
176
Regulations
177
Index
