ASSEMBLY PROCEDURE

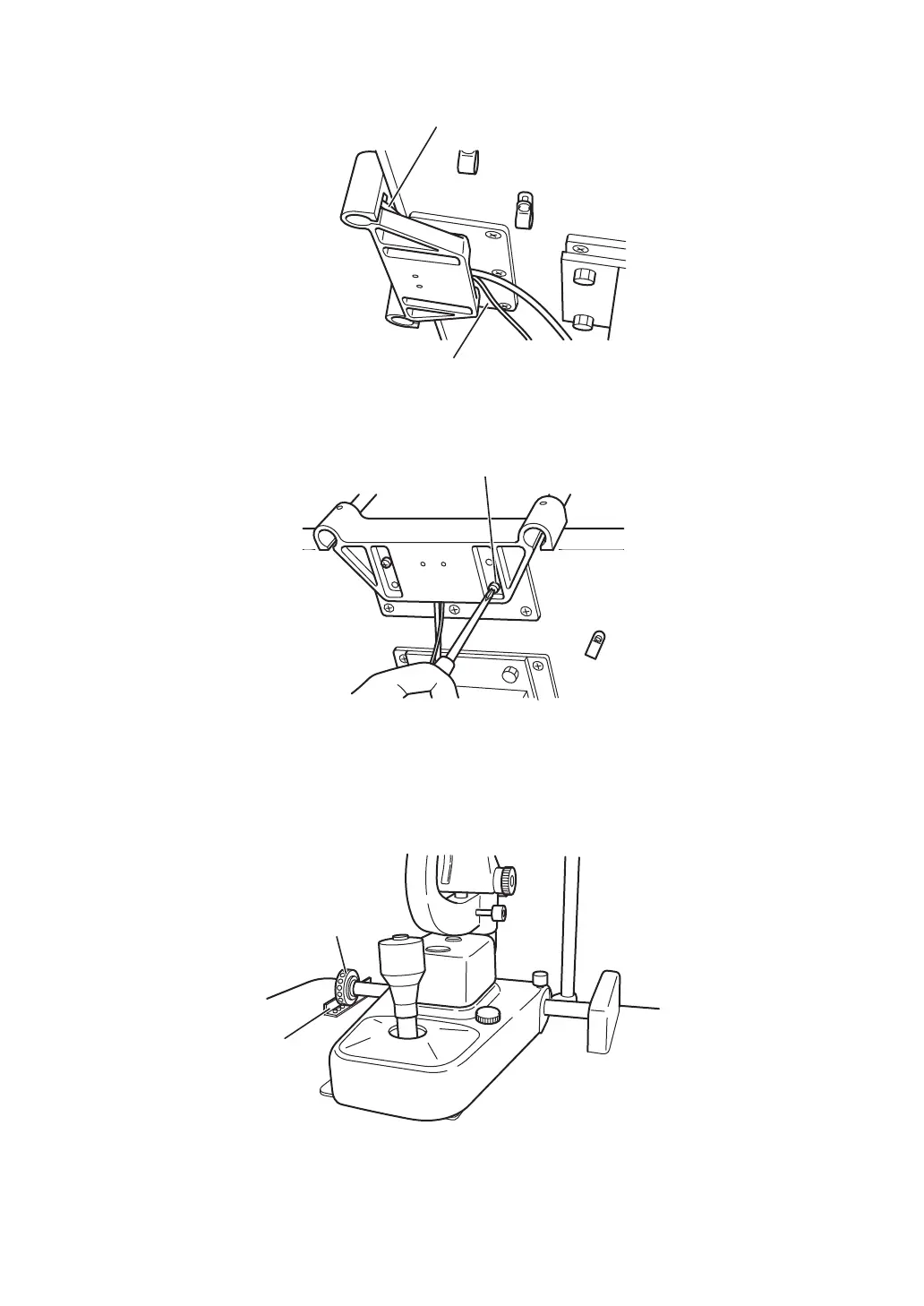

(2) Mounting the Chinrest
* Remove the four screws which are attached to the chinrest mounting plate with the Phillips
screwdriver.
* Place the chinrest cord in the gap between the chinrest mounting plate and the chinrest
assembly. While making sure that the cord is not being pinched by the mounting plate, re-
tighten the previously removed screws.
(3) Mounting the Base Assembly and Rail Covers
* After checking to see that the main unit moves smoothly on the rails, remove the four screws
which are attached to the rails with the screwdriver. Place the rail cover to the rail, and
retighten the previously removed screws.
Chinrest cord
Chinrest mounting plate
Screw
Wheel
Rail
To Next Page
