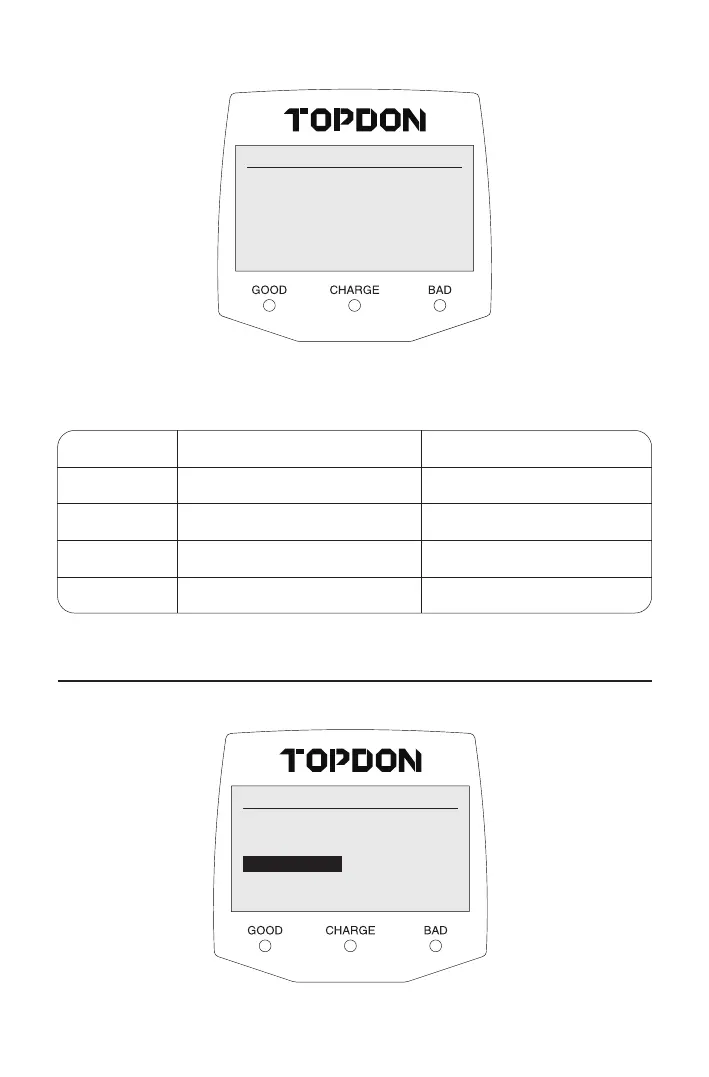

5) Press "Enter" and then the result will show as below (See Figure 4.3.6).
Refer to the table below to better understand the test result.
Figure 4.3.6
Charging Test
CHARGING LOW
12.95V
12.95V
20mV
Loaded
Unloaded
Ripple
Item
1
2
3
4
Cranking Voltage (V)
V < 12.8
12.8 ≤ V < 13.2
13.2 ≤ V < 15
V ≥ 15.0
Conclusion
No Output
Charging Low
Charging Normal
Charging High
4. Review Data
4.1 Select "4. Review Data".
Figure 4.4.1
Main Menu
1.Battery Test
2.Cranking Test
3.Charging Test
4.Review Data
5.Language
6.About
