Topfield TBF-100HD - Rear Panel Connections

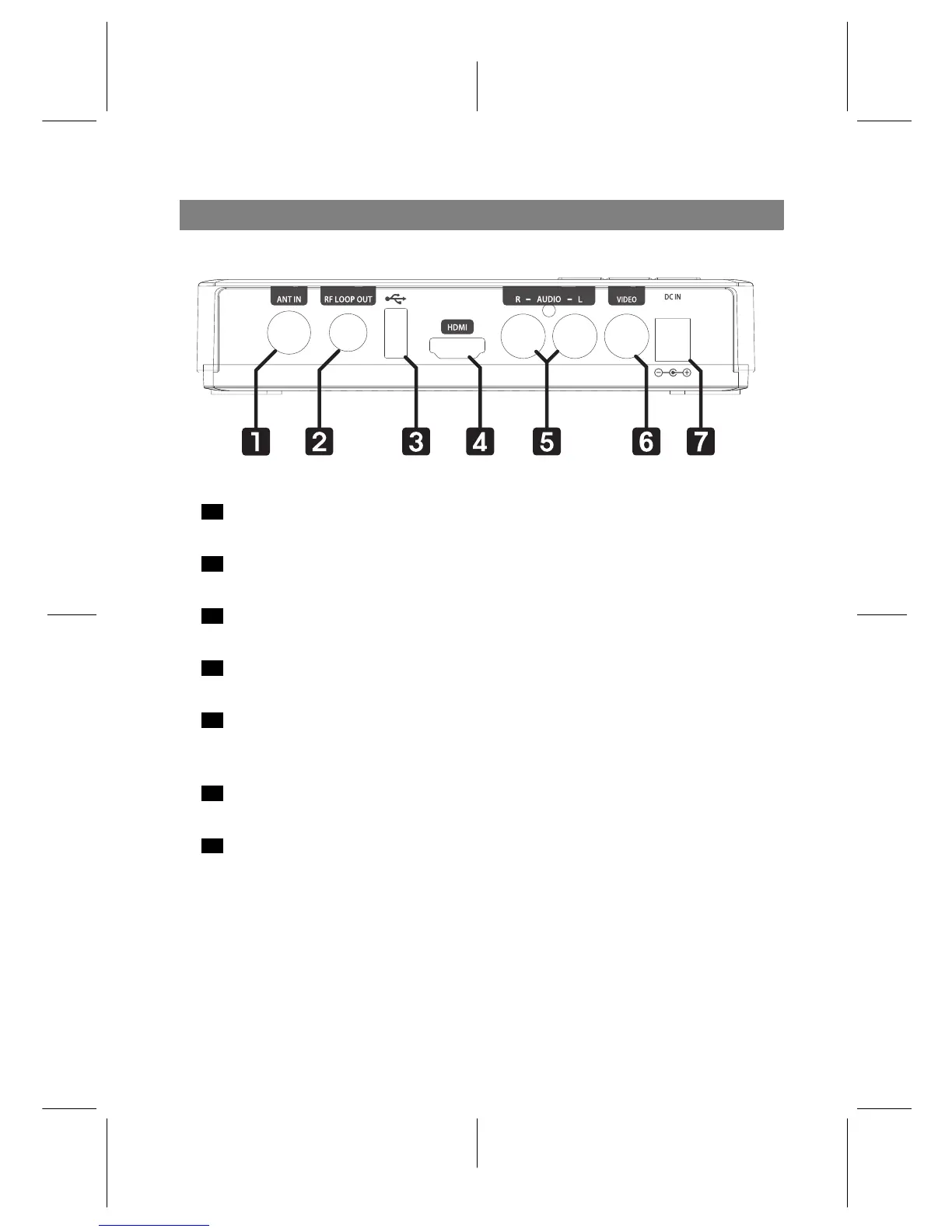

Rear Panel
.
.
.
1
ANT IN Terrestrial broadcasting signal input socket
(5V, Max.100mA)
.
.
.
2
RF LOOP OUT Terrestrial broadcasting signal output socket through the
ANT IN socket for another digital receiver
.
.
.
3
USB USB port for firmware update and data transfer.
(USB 2.0 Host, 5V DC, 500mA Max.)
.
.
.
4
HDMI Audio and video output socket for the high definition tele-
vision set
.
.
.
5
AUDIO R/L Stereo audio output socket for the television set or the au-
dio receiver
(white/red)
.
.
.
6
VIDEO Composite video output socket for the television set
(yellow)
.
.
.
7
DC IN Power jack
