2.6 Station Settings 11
DiSEqC 1.1 and DiSEqC 1.0
This digital receiver is designed to be DiSEqC 1.1 compatible.
This allows multiple antennas to be connected to one digital
receiver at the same time. If you have two or more fixed an-
tennas, then it is recommended to use a DiSEqC 1.1 switch.
If you have an only DiSEqC 1.1 switch, it is possible to connect
up to 4 antennas. Set the DiSEqC 1.0 to Disable and select an
item in DiSEqC1.1. If you use a DiSEqC1.1 switch and DiSEqC
1.0 switches, it is possible to connect up to 16 antennas. Con-
nect the DiSEqC1.1 switch to the digital receiver and connect
the DiSEqC 1.0 switches to the DiSEqC1.1 switch.

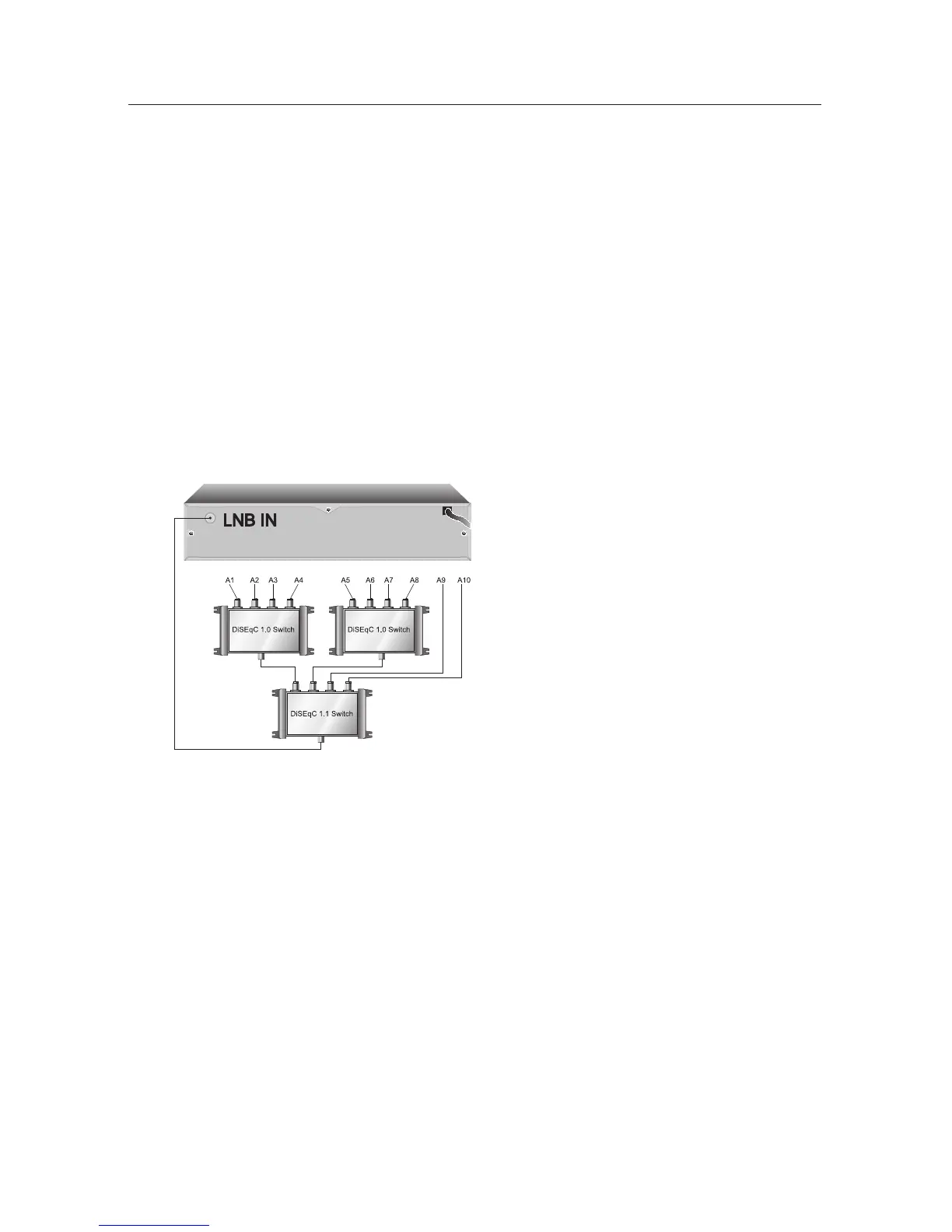

Set the DiSEqC 1.1 parameter and DiS-
EqC 1.0 parameter according to the an-
tenna configuration. For example, to
select A7 in the figure, set the DiS-
EqC1.1 parameter to 2 of 4 and the
DiSEqC1.0 parameter to 3 of 4.
