3.10
4 WINGS
2 RIGHT WINGS
2 LEFT WINGS
Fig.
36
Fig.
37
Fig.
38
Fig.
39
Fig.
40
25
INSTRUCTIONS FOR INSTALLATION AND USE

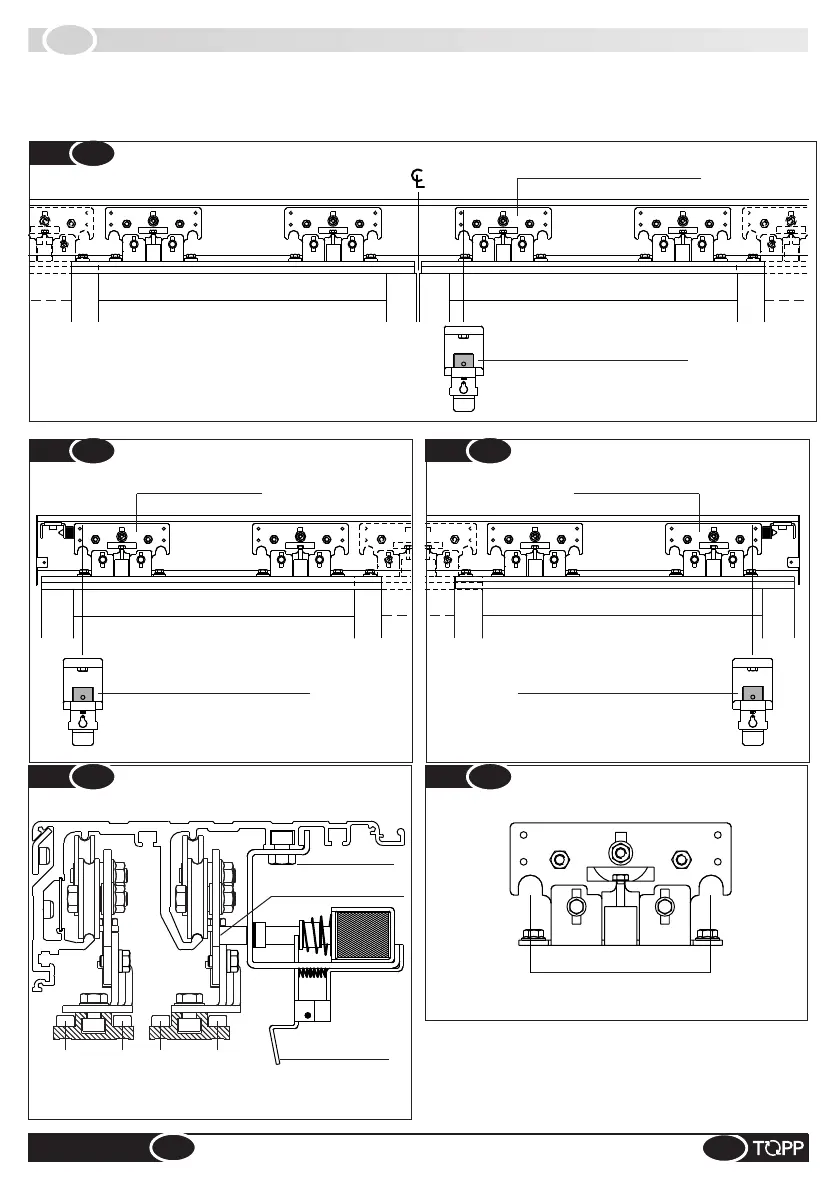

INSTALLING THE DOOR BLOCK
During installation, make sure that when the door is closed with the block on, it must be possible to open the door manually
by at least 2-3 mm. This tolerance is necessary to enable the block to be released without difficulty.
Right door front carriage
Door block with manual
release incorporated
Front carriage
Door block with manual
release incorporated
Front carriage
Door block with manual
release incorporated
Fastening screw
Carriage block fastener
Manual release
Carriage block fastener
Attention!: The door block system is not to be considered
as a device for protection against break-ins.
To release and open the door, push the manual release
lever under the casing forward and, at the same time, pull
the door with your hand until it opens.
K200T
-K280T
EN
