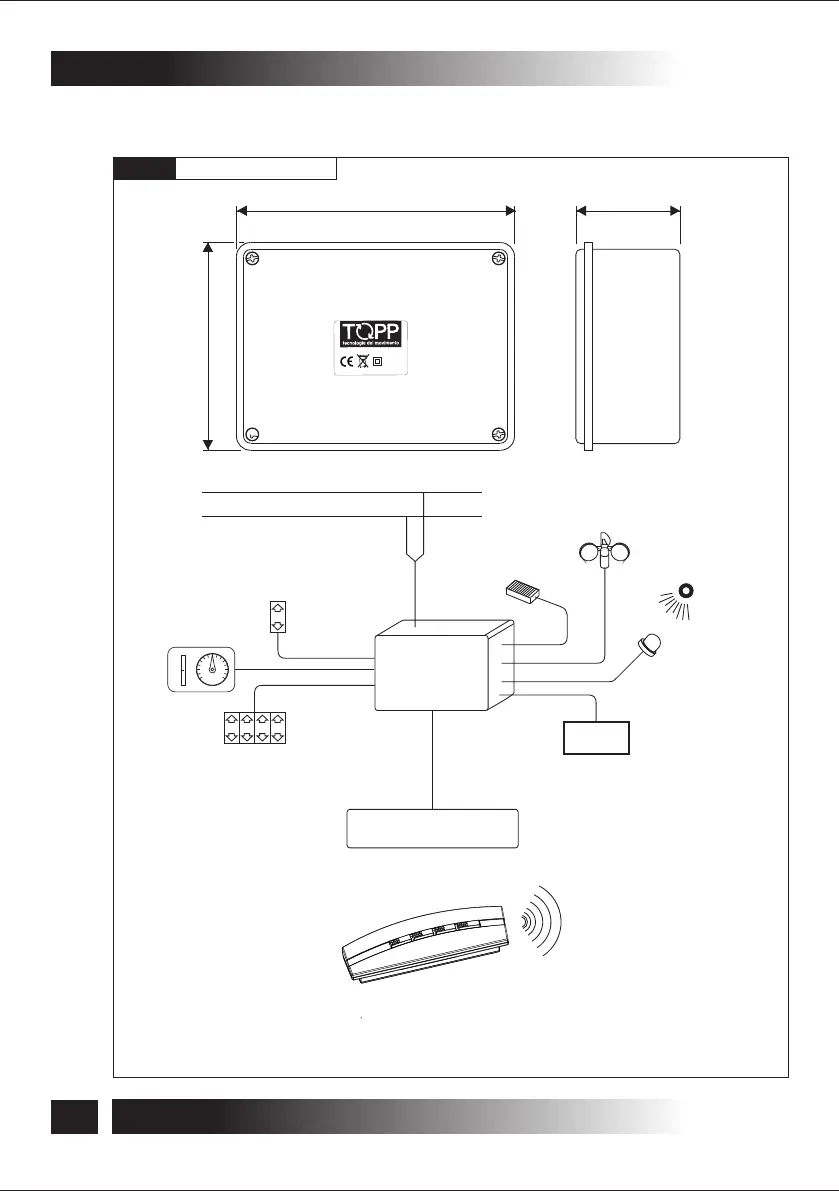

3.2- DENOMINATION OF THE COMPONENTS AND DIMENSIONS
Fig.2
Dimensions in mm
160
120
75
230V - 50Hz MAINS
WIND
SENSOR
RAIN
SENSOR
SUN
SENSOR
CONTROLS OF ALL
MOTORS CONNECTED
FEEDING AND
CONTROL UNIT
CONTROLS OF
SINGLE OUTPUTS
24Vdc/230Vac MOTORS
(see Table 1)
433 Mhz RADIO
REMOTE CONTROL
AC8
UNIT CONTROL
