22” LCD Color Monitor Topview A2281Wd+
10

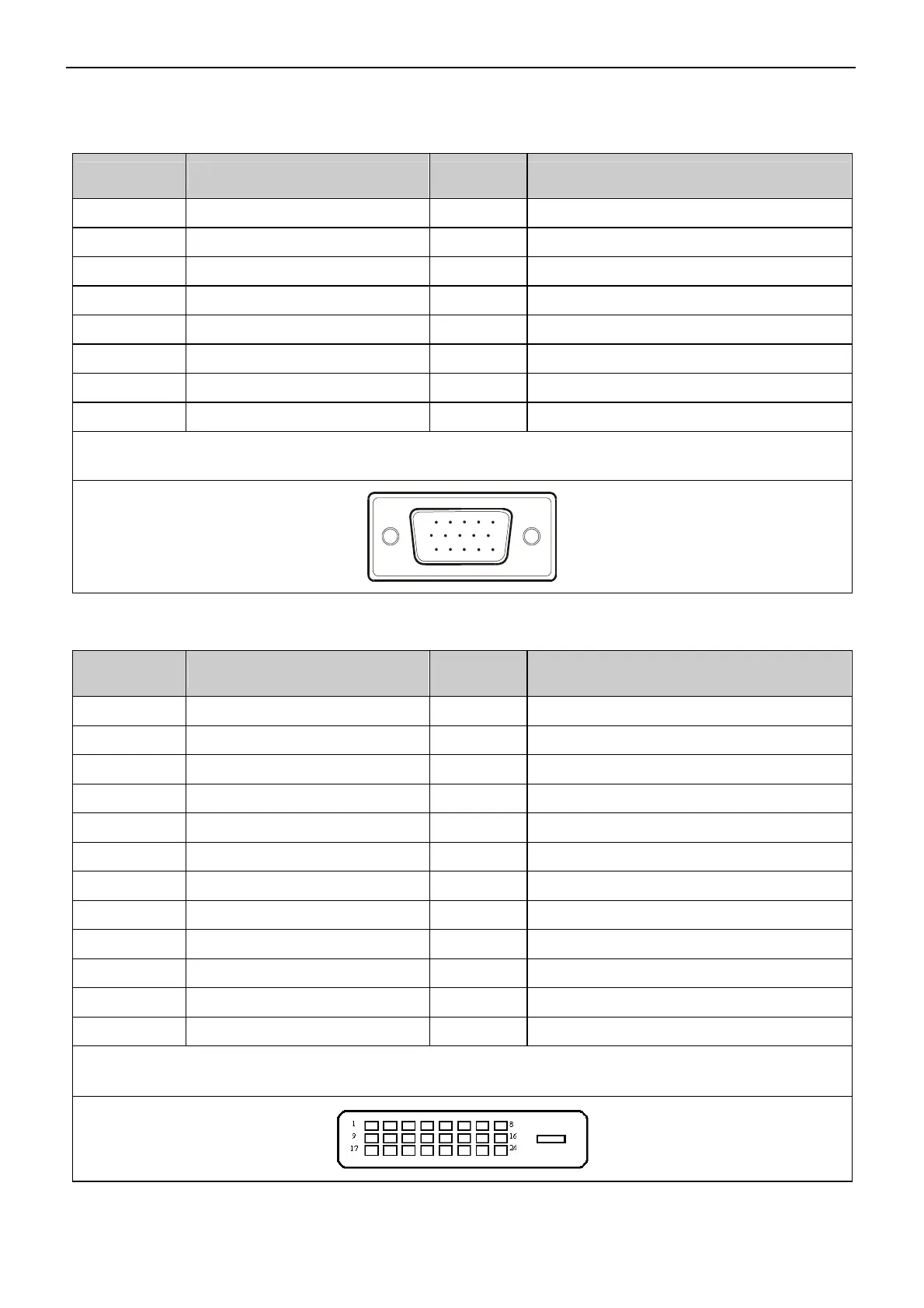

4. Input/Output Specification
4.1 Input Signal Connector
Pin No. Description Pin No. Description
1. Red Video 9. +5V
2. Green Video 10. Logic Ground
3. Blue Video 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue Ground
15 - Pin D-Sub connector
15
6
10
11 15
Pin No. Description Pin No. Description
1. TMDS Data2- 13. TMDS Data3+
2. TMDS Data2+ 14. +5V Power
3. TMDS Data 2/4 Shield 15. GND(return for +5V H. sync, V. sync)
4. TMDS Data4- 16. Hot Plug Detect
5. TMDS Data4+ 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19. TMDS Data 0/5 Shield
8. Analogue Vertical Sync 20. TMDS Data5-
9. TMDS Data1- 21. TMDS Data5+
10. TMDS Data1+ 22. TMDS Clock Shield
11. TMDS Data 1/3 Shield 23. TMDS Clock+
12. TMDS Data3- 24. DDC TMDS Clock-
24 - Pin DVI-D connector
