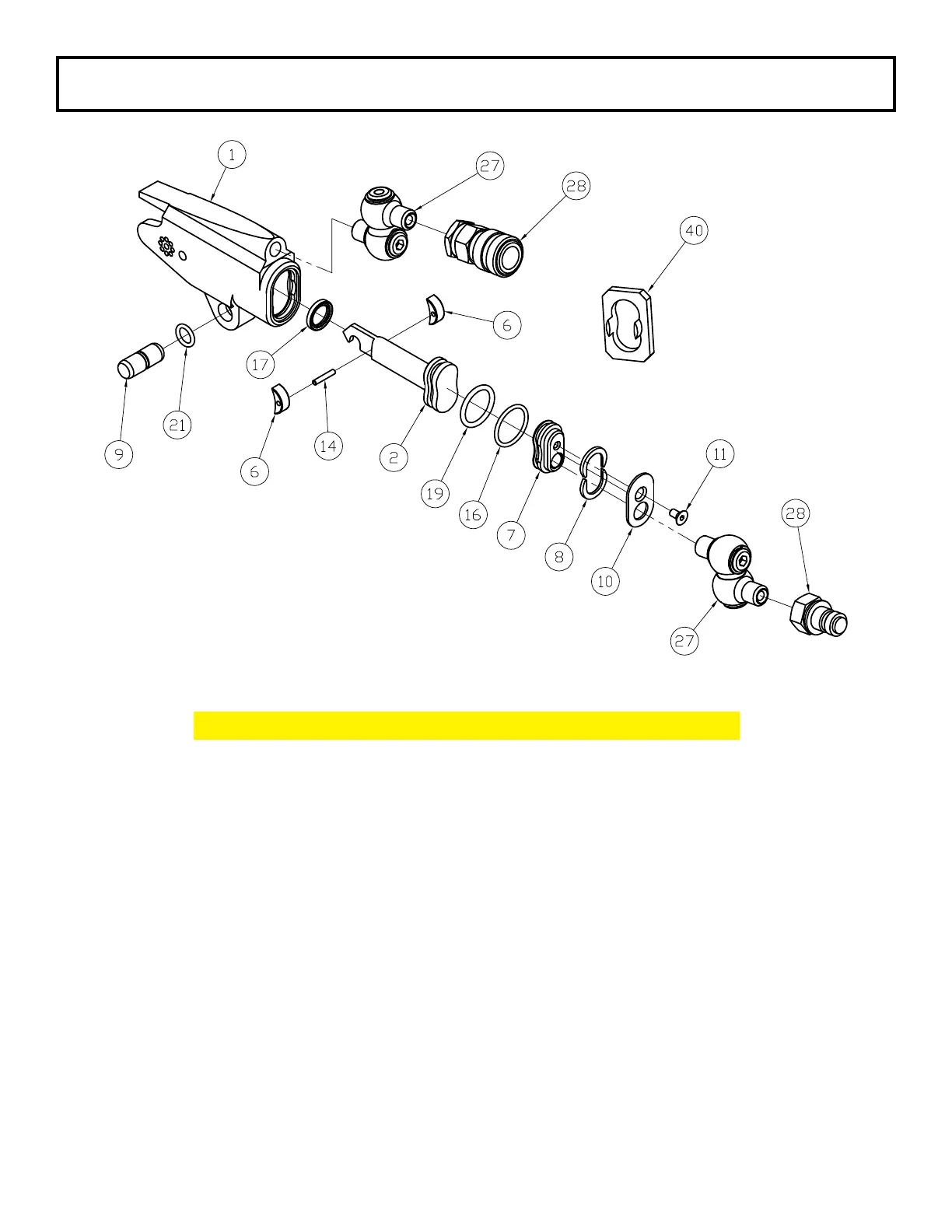

TX-2 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-2-C01 1
2 Piston TX-2-C03 1
6 Slider TX-2-C09 2
7 End Cap TX-2-C11 1
8 Retaining Ring TX-2-C13 2
9 Link Pin TX-2-C15 1
10 End Cover TX-2-C17 1
11 End Cover Screw TX-2-C23 1
14 Slider Pin TX-2-C27 1
16 End Plug Seal TX-2-C29 1
17 Rod Seal TX-2-C31 1
19 Piston Seal TX-2-C33 1
21 Link Retaining Spring TX-2-C53 1
27 Swivel Assembly STX-8M-4M 2
28 Coupler Set HC-S-100 1
40 Seal Insertion Tool ATX-2-ST
