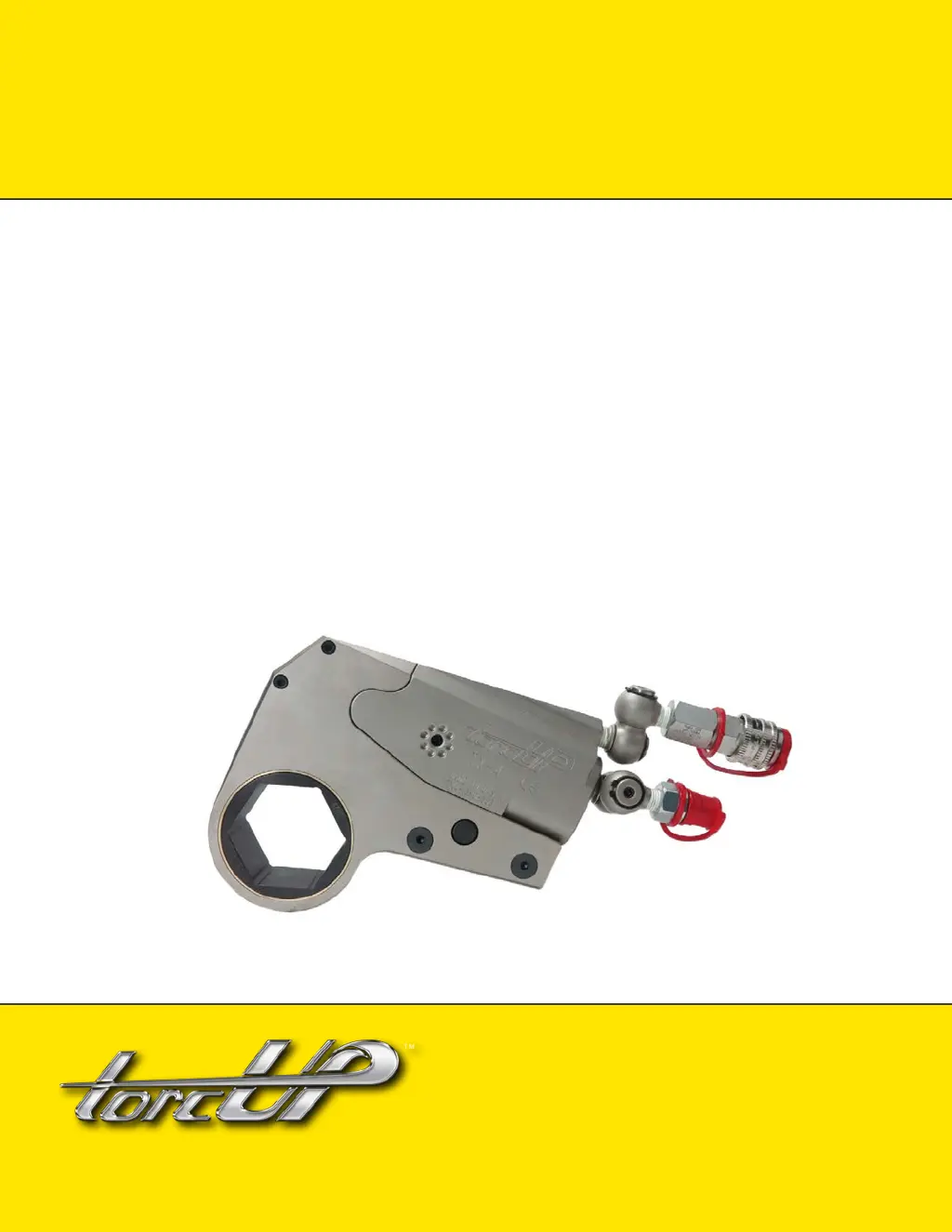

OPERATION AND MAINTENANCE

MODELS TX-1, TX-2, TX-4, TX-8, TX-16, TX-32, TX-45

MANUAL

TX Series

Low Prole Hydraulic Torque Wrenches

TX Series

Phone: +1 610-250-5800

Fax: +1 610-250-2700

Toll Free: 1-888-TORCUP-1

Email: sales@torcup.com

Website: www.torcup.com

1025 Conroy Place, Easton PA 18040 U.S.A.

Other manuals for TorcUP TX-45

Operating And Maintenance Instructions20 pages

Questions and Answers

A
Andrew WoodsAug 5, 2025
Why is my TorcUP TX-45 pump not building up pressure?
- F
  frankkingAug 5, 2025
  If your TorcUP Power Tool pump isn't building up pressure, several factors could be at play. Begin by checking the relief valve for any defects, and consider adjusting or replacing it if necessary. Ensure that your air supply and hose size meet the recommendations outlined in the pump manual. For electric pumps, verify that the amperage, voltage, and extension cord size are compliant with the pump manual's requirements. Replace the gauge if it is defective. Also, check the oil level and replenish the pump reservoir if it's low. Lastly, inspect the pump filter for clogs; clean or replace it as needed.
B
Bryan FrostAug 9, 2025
What to do if my TorcUP TX-45 Power Tool tightens immediately when turned on?
- A
  Anthony BrownAug 9, 2025
  If your TorcUP Power Tool tightens immediately upon activation, the hose connections are likely reversed. To correct this, depress the advance button to release the tool, then switch off the pump while it's in the advance position. Finally, reverse the hose connections.
R
Richard HillAug 13, 2025
How to fix a TorcUP Power Tool when the piston will not advance or retract?
- A
  Alison CrawfordAug 13, 2025
  If the piston of your TorcUP Power Tool isn't advancing or retracting, start by checking the coupler connections to ensure they are securely attached to both the tool and the pump. Replace any couplers that are defective. If the issue persists, the remote control switch may be faulty, requiring replacement of the switch or control pendant. Another potential cause is dirt in the direction-control valve of the pump unit, which would necessitate disassembling the pump and cleaning the valve.
L
larabradleyAug 17, 2025
What to do if the cylinder of my TorcUP TX-45 will not build up pressure?
- J
  John ClarkAug 17, 2025
  If your TorcUP Power Tool's cylinder isn't building up pressure, it could be due to several reasons. Start by checking the piston seal and end plug seal for leaks, and replace any defective o-rings. Also, inspect the retaining screws for shearing and replace any that are broken. Finally, a defective coupler could also be the cause, so replace any that are faulty.
A
Andrea SummersAug 22, 2025
Why won't the piston retract on my TorcUP TX-45?
- D
  Douglas WaltersAug 22, 2025
  If the piston on your TorcUP Power Tool won't retract, first ensure that the hose connections are correct: the advance on the pump should connect to the advance on the tool, and the retract on the pump should connect to the retract on the tool. Next, verify that the retract hose is securely connected. Lastly, check for a broken retract pin or spring and replace them if necessary.
T
Todd EstesAug 27, 2025
How to troubleshoot a TorcUP TX-45 Power Tool when the ratchet will not turn?
- R
  Richard YoungAug 27, 2025
  If the ratchet on your TorcUP Power Tool isn't turning, it could be due to a buildup of grease or dirt in the teeth of the ratchet link and drive segment. Disassemble the ratchet and clean out any grease or dirt. Alternatively, the teeth on the ratchet or drive segment may be worn or broken, requiring replacement of the damaged parts.
G
gconnerAug 30, 2025
What causes erratic pressure readings in a TorcUP TX-45 Power Tool?
- K
  Karen RichardAug 31, 2025
  If you observe erratic pressure readings on your TorcUP Power Tool, the gauge is likely defective and needs to be replaced.

Summary

Operation and Maintenance Manual

Introduction and Safety Warnings

Covers manual overview, safety warnings, and general tool usage.

Placing the Tool in Service

Instructions for connecting the tool, setting torque, and operating the wrench.

Lubrication Guide

Step-by-step guide for lubricating the tool using Marine Moly Grease.

Technical and Dimensional Data

Wrench Specifications

Provides detailed technical and dimensional data for TX series wrenches.

Torque Conversion Charts

Detailed charts for converting hydraulic pressure to torque output for various models.

Parts Identification

Cylinder Assemblies

Exploded views and part numbers for cylinder assemblies.

Ratchet Link Assemblies

Exploded views and part numbers for ratchet link assemblies.

Maintenance Procedures

Disassembly Instructions

Instructions for disassembling cylinder assemblies and ratchet links.

Assembly Instructions

Step-by-step guide for reassembling cylinder assemblies and ratchet links.

Troubleshooting Guide

Common Issues and Solutions

Identifies common problems and provides solutions for the torque wrench.
