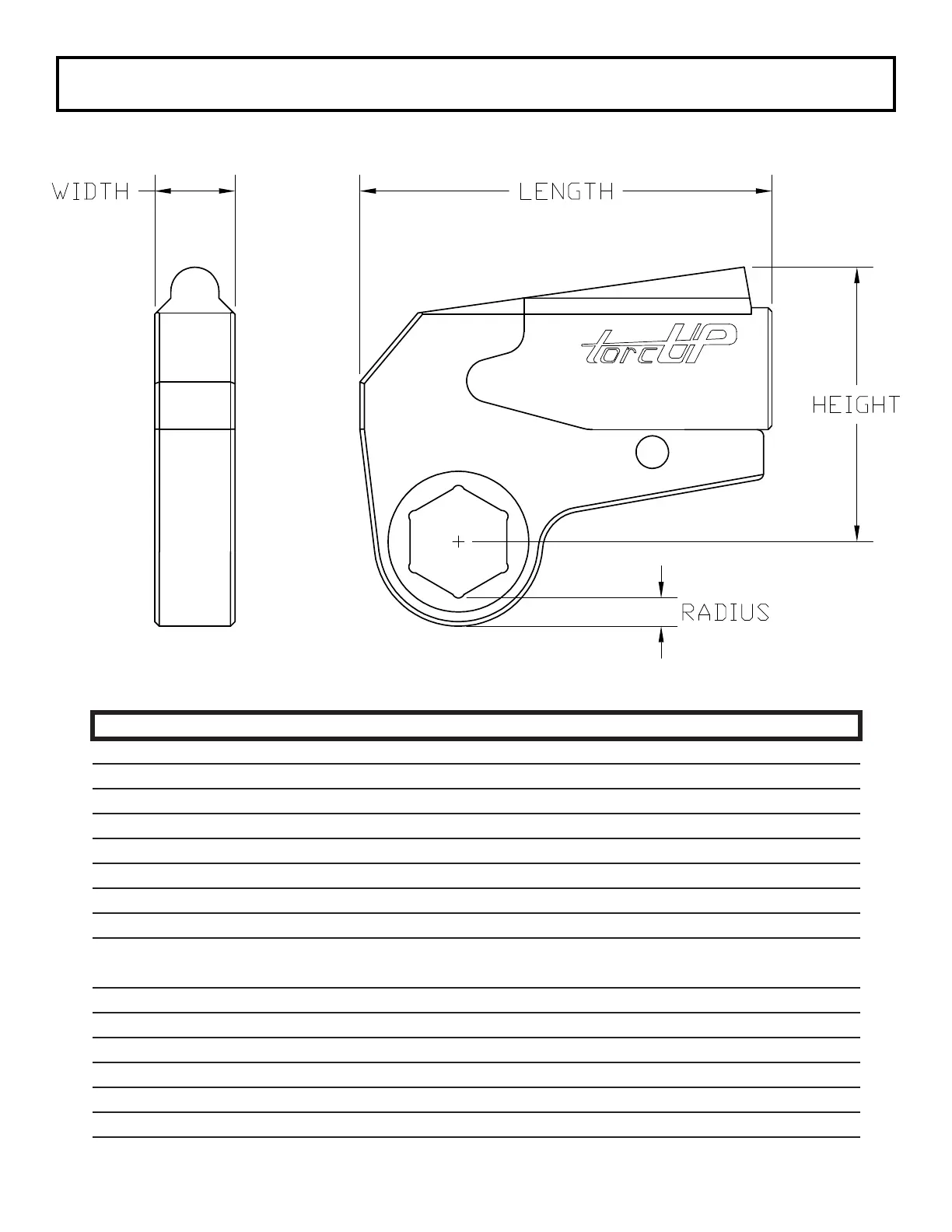

TX Series Wrench Technical & Dimensional Data
Model Number TX-1 TX-2 TX-4 TX-8
Min. Torque (ft/lbs) 45 192 395 830
Max. Torque (ft/lbs) 560 1928 3950 8630
Min. Torque (nm) 61 260 535 1125
Max. Torque (nm) 759 2614 5355 11699
Output Accuracy +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100%
Cylinder Weight (lbs/kg) 1.0/0.5 3.5/1.6 6.0/2.7 11.7/5.0
Link Weight
(lbs) 1.0-1.0 2.4-3.5 5.4-7.6 11.9-14.5
(kg) 0.45-0.45 1.0-1.5 2.4-3.4 5.5-6.5
Length (in/mm) 4.37/111.0 6.45/163.8 7.87/199.9 10.18/258.6
Width (in/mm) 0.78/19.8 1.25/31.8 1.63/41.4 2.05/52.1
Radius (in/mm) 0.23/5.8 0.36/9.1 0.46/11.7 0.54/13.7
Height (in/mm) 3.25/82.6 4.00/101.6 5.60/142.2 7.00/177.8
Hex Range From 1/2”/13mm 3/4”/19mm 1”/27mm 1 7/8”/49mm
Hex Range To 2”/50mm 2 9/16”/65mm 3 1/8”/80mm 4 5/8”/120mm
