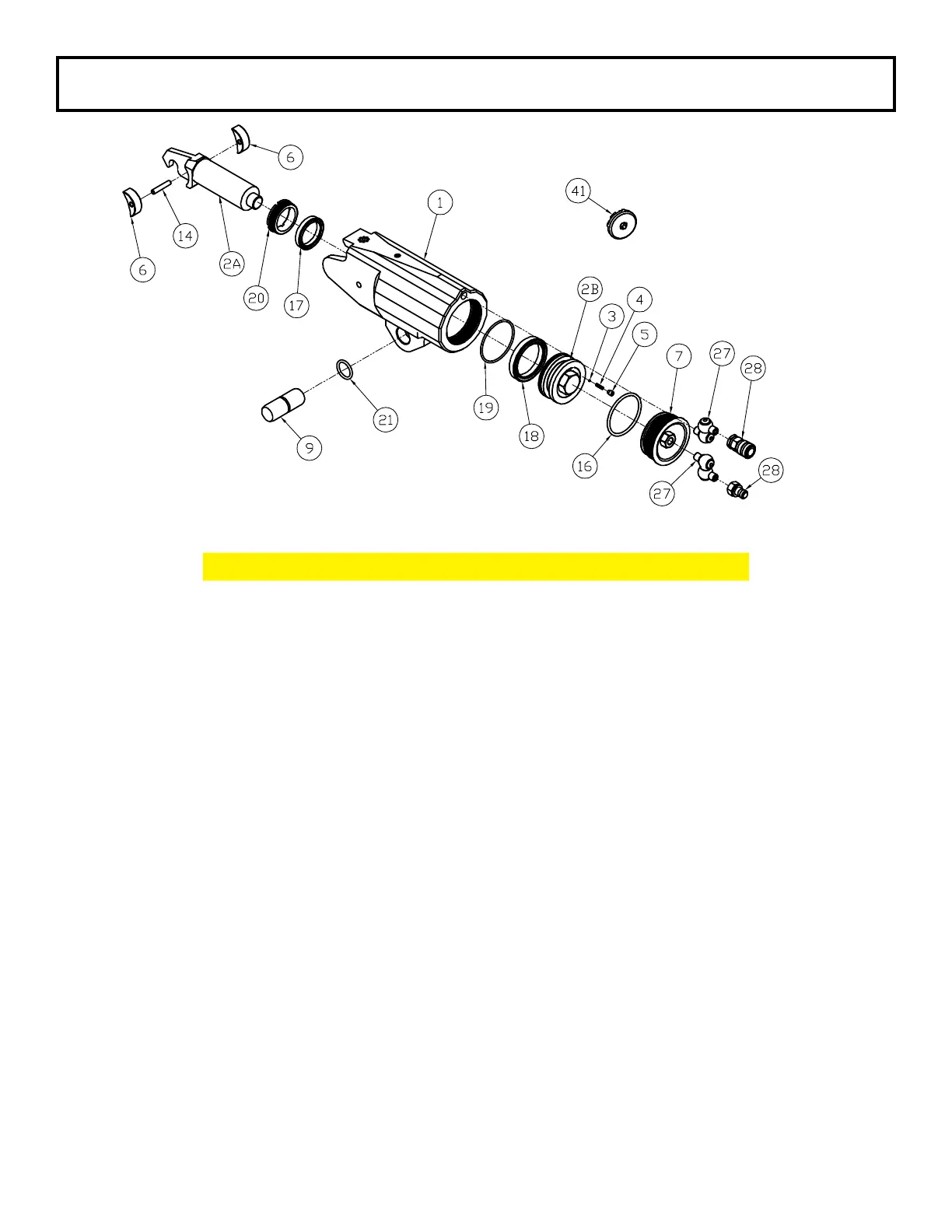

TX-45 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-45-C01 1
2A Piston Rod TX-45-C03-1 1
2B Piston Cap TX-45-C03-2 1
3 Valve Ball TX-45-C03-3 1
4 Valve Spring TX-45-C03-4 1
5 Valve Cup TX-45-C03-5 1
6 Slider TX-45-C09 2
7 End Cap TX-45-C11 1
9 Link Pin TX-45-C15 1
14 Slider Pin TX-45-C27 1
16 End Plug Seal TX-45-C29 1
17 Rod Seal TX-45-C31 1
18 Piston Cup Seal TX-45-C32 1
19 Piston Seal TX-45-C33 1
20 Rod Bushing TX-45-C51 1
21 Link Retaining Spring TX-45-C53 1
27 Swivel Assembly STX-4M-4M 2
28 Coupler Set HC-S-100 1
41 Gland Removal Tool ATX-45-GW
Piston Assembly (2A, 2B, 3, 4, 5) TX-45-C03
