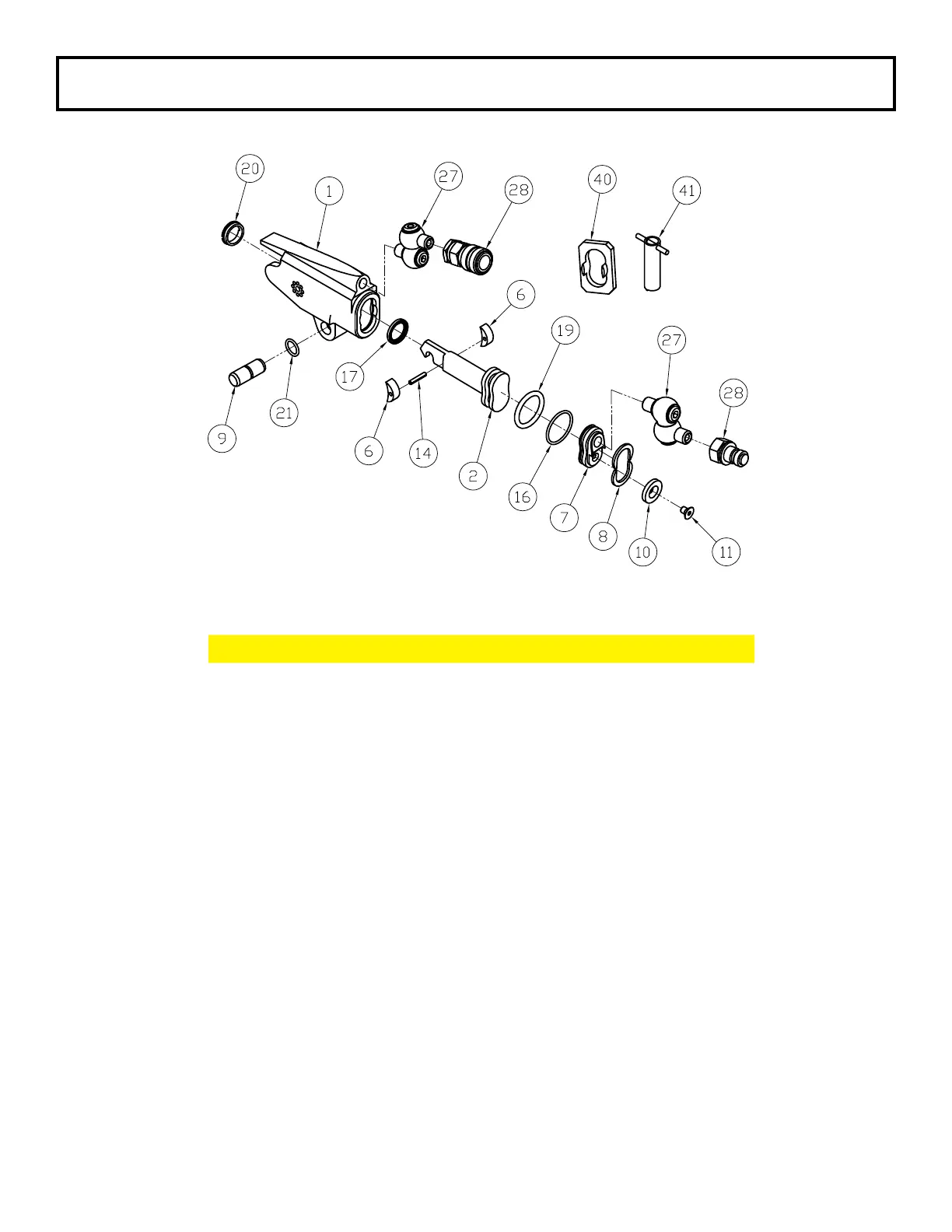

TX-8 Series Cylinder
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TX-8-C01 1
2 Piston TX-8-C03 1
6 Slider TX-8-C09 2
7 End Cap TX-8-C11 1
8 Retaining Ring TX-8-C13 2
9 Link Pin TX-8-C15 1
10 End Cover TX-8-C17 1
11 End Cover Screw TX-8-C23 1
14 Slider Pin TX-8-C27 1
16 End Plug Seal TX-8-C29 1
17 Rod Seal TX-8-C31 1
19 Piston Seal TX-8-C33 1
20 Cylinder Gland TX-8-C51 1
21 Link Retaining Spring TX-8-C53 1
27 Swivel Assembly STX-4M-4M 2
28 Coupler Set HC-S-100 1
40 Seal Insertion Tool ATX-8-ST
41 Gland Removal Tool ATX-8-GW
