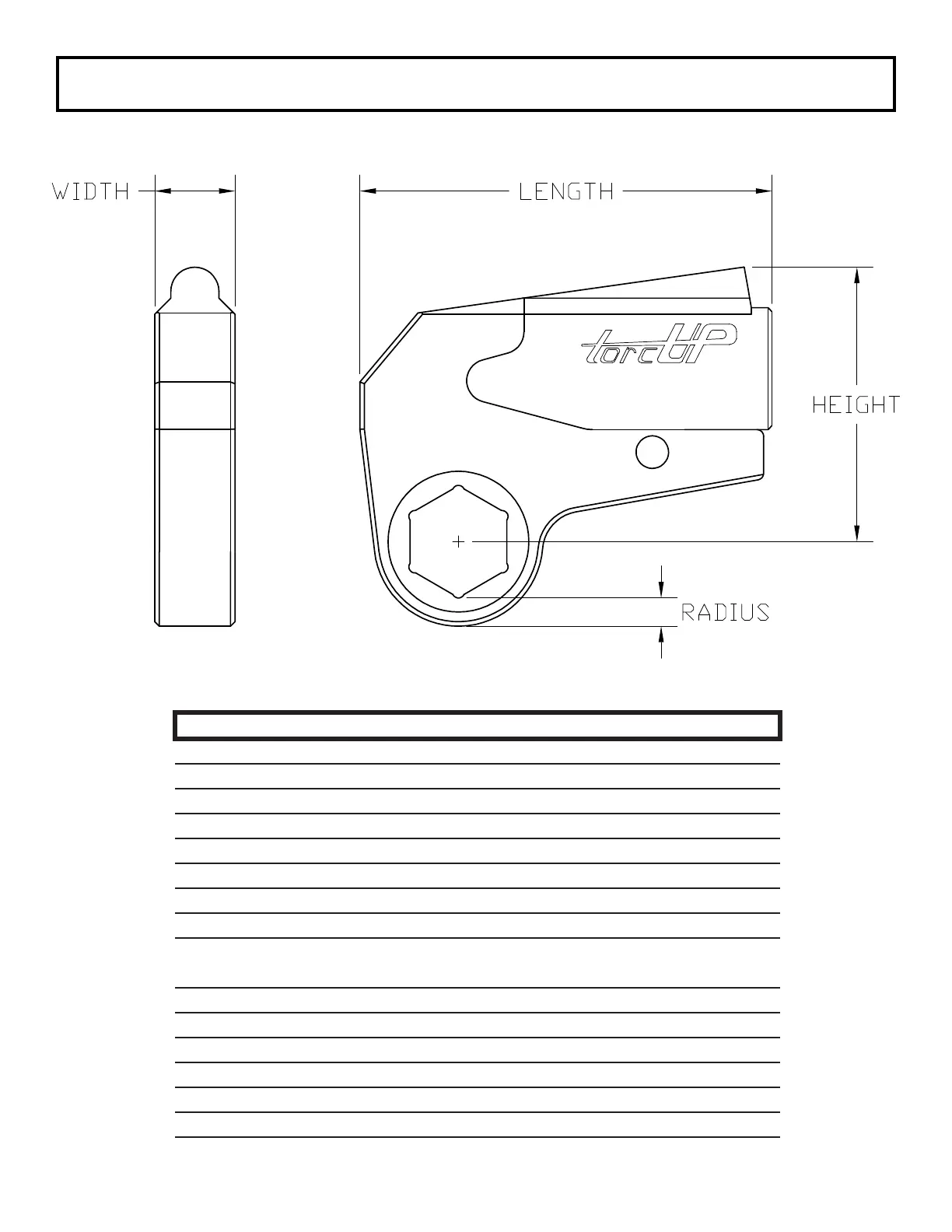

TX Series Wrench Technical & Dimensional Data
Model Number TX-16 TX-32 TX-45
Min. Torque (ft/lbs) 1560 3220 4850
Max. Torque (ft/lbs) 16600 35650 47380
Min. Torque (nm) 2115 4365 6575
Max. Torque (nm) 22503 48327 64239
Output Accuracy +/-3% +/-3% +/-3%
Repeatability 100% 100% 100%
Duty Cycle 100% 100% 100%
Cylinder Weight (lbs/kg) 16.0/7.3 26.0/11.5 29.0/13.0
Link Weight
(lbs) 21.0-28.0 29.0-39.5 29.0-39.5
(kg) 9.5-13.0 13.0-17.9 13.0-17.9
Length (in/mm) 12.93/328.4 15.80/401.3 16.75/425.5
Width (in/mm) 2.50/63.5 3.24/82.3 4.88/124.0
Radius (in/mm) 0.65/16.5 0.93/23.6 0.93/23.6
Height (in/mm) 7.58/192.5 9.50/241.3 10.28/261.1
Hex Range From 2 3/16”/55mm 3 1/8”/80mm 3 1/8”/80mm
Hex Range To 5 5/16”/135mm 7 7/8”/200mm 7 7/8”/200mm
