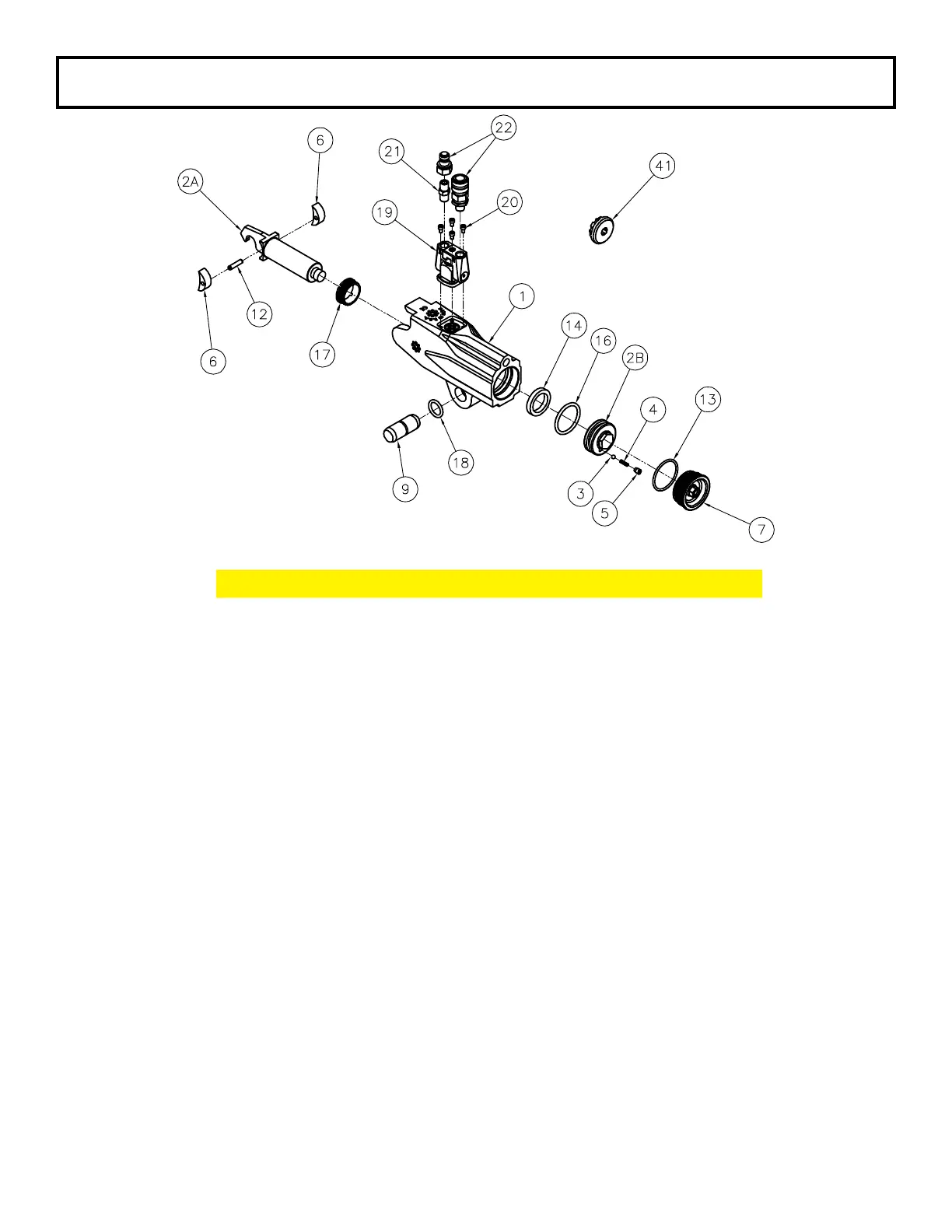

TXU-16 Cylinder Swivel Low Prole Hydraulic Torque Wrench
Part Numbers for Ordering
ITEM NAME PART # QTY.
1 Housing TXU-16-C01 1
2A Piston Rod TX-16-C03-1 1
2B Piston Cap TX-16-C03-2 1
3 Valve Ball TX-16-C03-3 1
4 Valve Spring TX-16-C03-4 1
5 Valve Cup TX-16-C03-5 1
6 Slider TX-16-C09 2
7 End Cap TXU-16-C11 1
9 Link Pin TX-16-C15 1
12 Slider Pin TX-16-C27 1
13 End Plug Seal TX-16-C29 1
14 Rod Seal TX-16-C31 1
16 Piston Seal TX-16-C33 1
17 Cylinder Gland TX-16-C51 1
18 Link Retaining Spring TX-16-C53 1
19 Uniswivel Assembly USL-00 1
20 Uniswivel Post Screw USL-23 4
21 Male 1/4” NPT to Male 1/4” NPT F004004 1
22 Male Coupler HC-M-100 1
23 Female Coupler HC-F-400 1
41 Gland Removal Tool ATX-16-GW
42 End Plug Wrench ATX-16-EPW
Piston Assembly (2A, 2B, 3, 4, 5) TX-16-03
