Torin TR6453 - Assembly Diagram

7

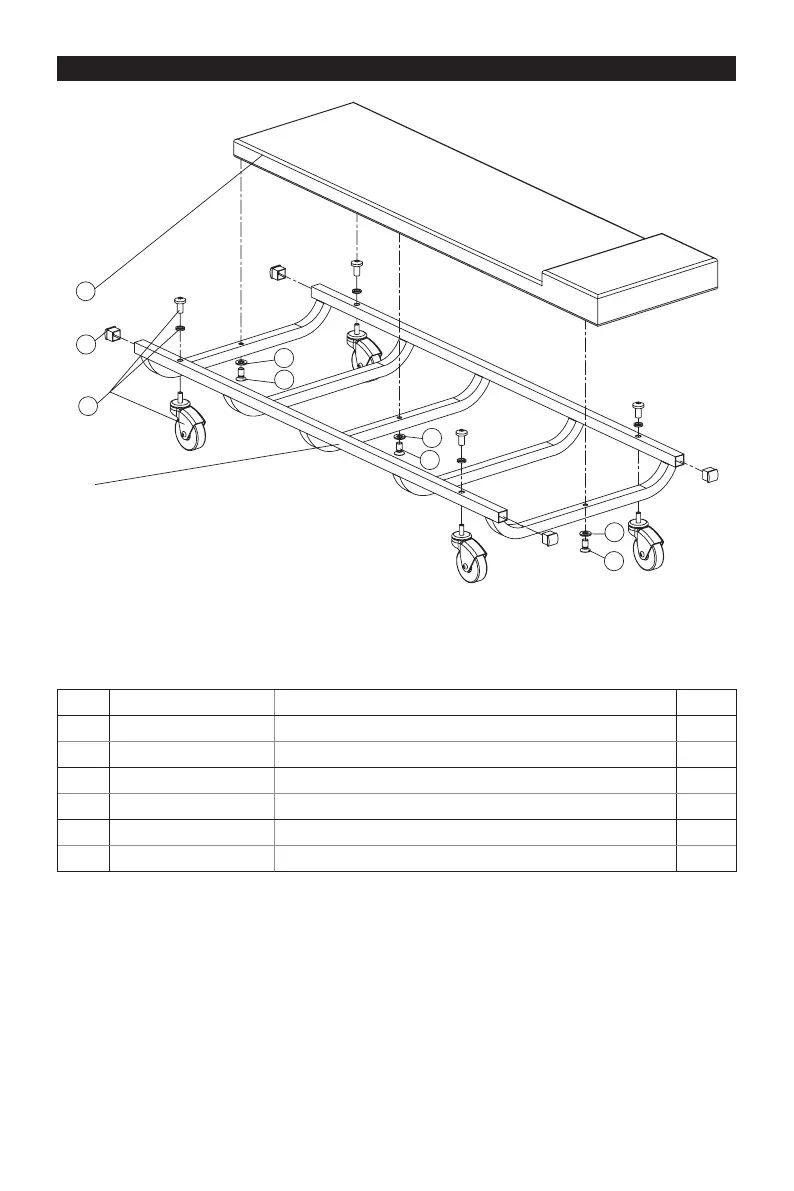

ASSEMBLY DIAGRAM
REF# PART # DESCRIPTION QTY
1 TR6451.1 Vinyl pad 1
2 TR6452-1 Plastic end cap 4
3
TR6452.1 Caster assembly
4
4 Metal frame base 1
5 GB97.1-6 Washer M6 3
6 GB818-M6x35 Cross-recess screw M6x35mm 3
Safe Operating Temperature is between 40°F – 105°F (4°C - 41°C)
