3. 5. Spare Parts
3. 5. 1. Order for spare parts
When ordering spare parts, let us have the following information without fail.
• Pump type No. and size
• Manufacturing No.
( These numbers are identified on the name plate attached to the pump )
• Part name.
• Part No.
( Refer to attached List of Components )
• Required quantity.
• Material code.

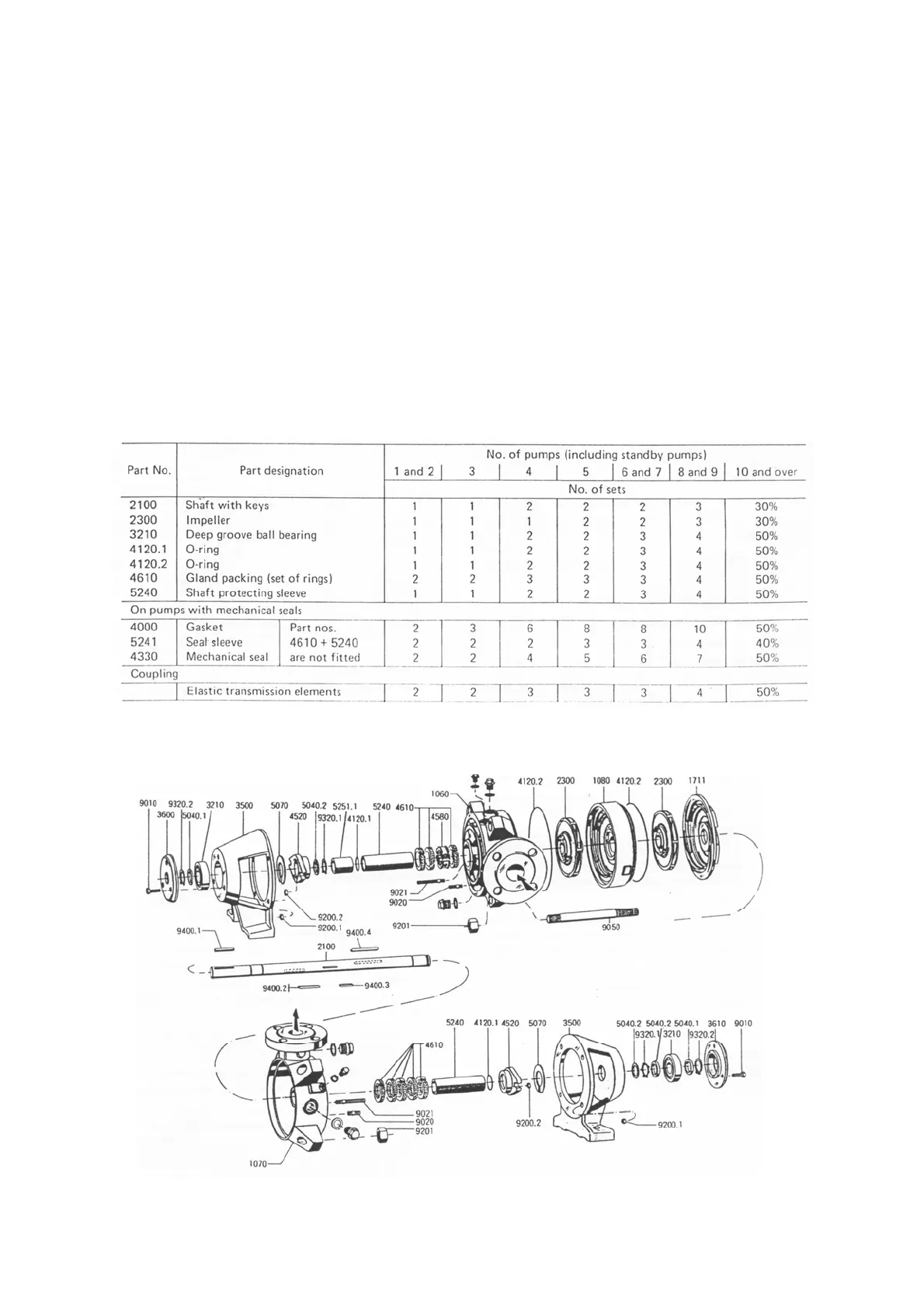

3. 5. 2. Recommended List of Spare Parts for 2 Year’s Operation.
3. 6. Exploded View and List of Components
