INSTALLATION
5. Attach the access panel to the left rear panel from the outside of the enclosure with 11 M5 × 0.8 - 10
screws.

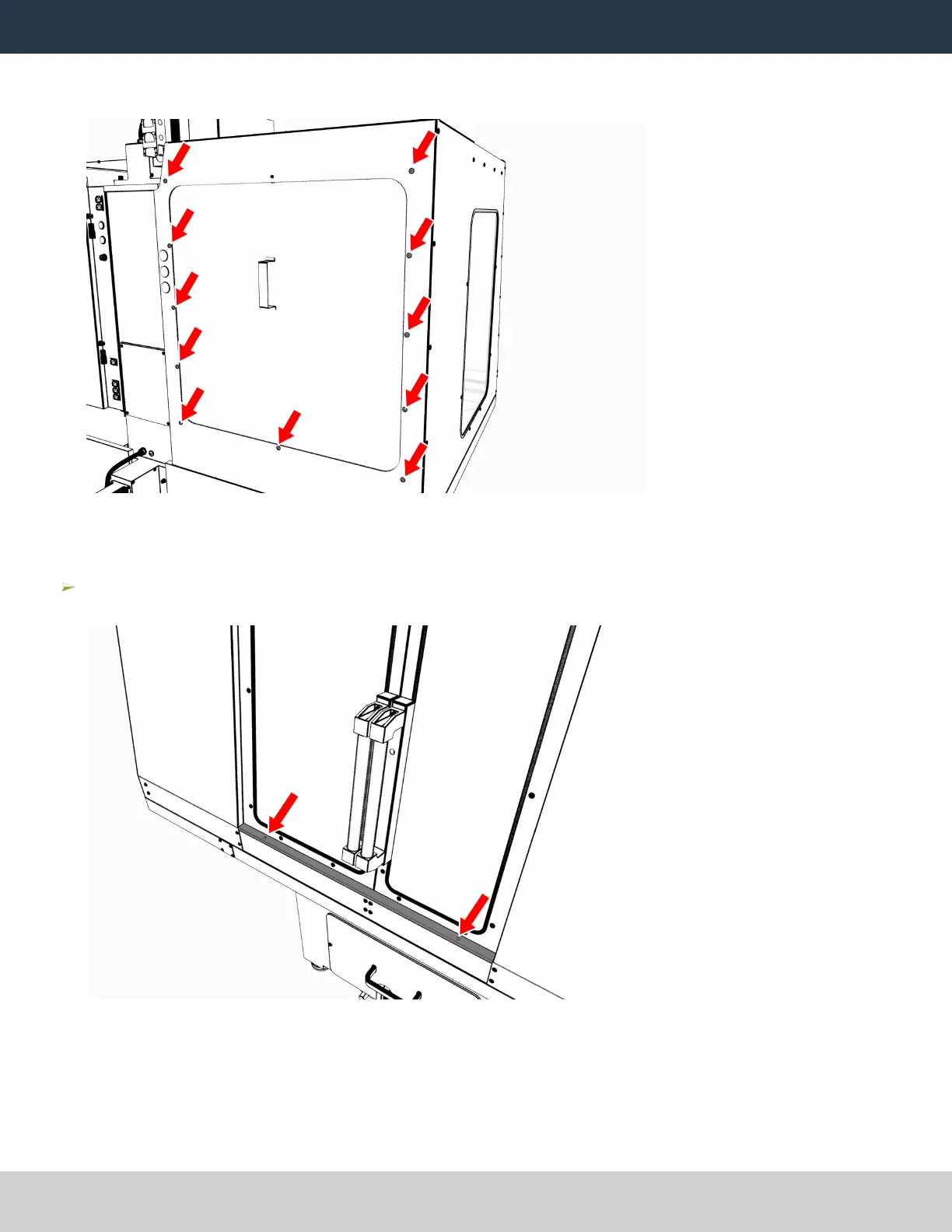

Figure 37: Access panel attached to the left rear panel.
Install the Stainless Steel Wear Guard
Find the stainless steel wear guard that you set aside earlier.
Attach it to the lower front panel with two M5 × 0.8 - 10 screws.
Figure 38: Stainless steel wear guard attached to the lower front panel.
