INSTALLATION

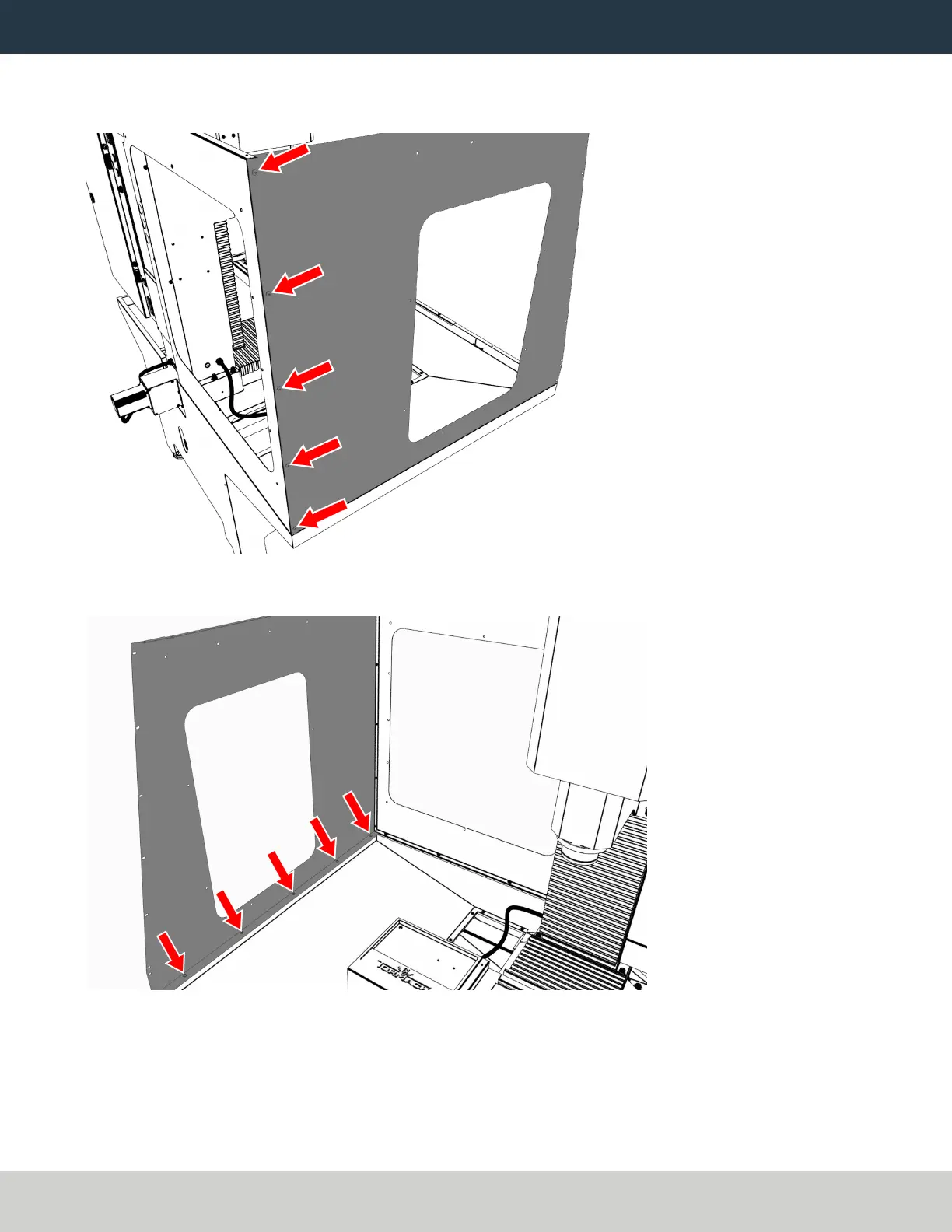

Install the Left Side Panel
1. Attach the left side panel to the left rear panel with five M5 × 0.8 - 10 screws.
Figure 2: Left side panel attached to the left rear panel.
2. Attach the left side panel to the left chip pan with five M6 × 1.0 - 12 screws.
Figure 3: Left side panel attached to the left chip pan.
Page 5
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10535: Installation Guide: 1100M Enclosure (0522A)
