INSTALLATION
3. Loosely attach one horizontal window retainer to the bottom of the right side panel's window opening with
two M5 × 0.8 - 10 screws.

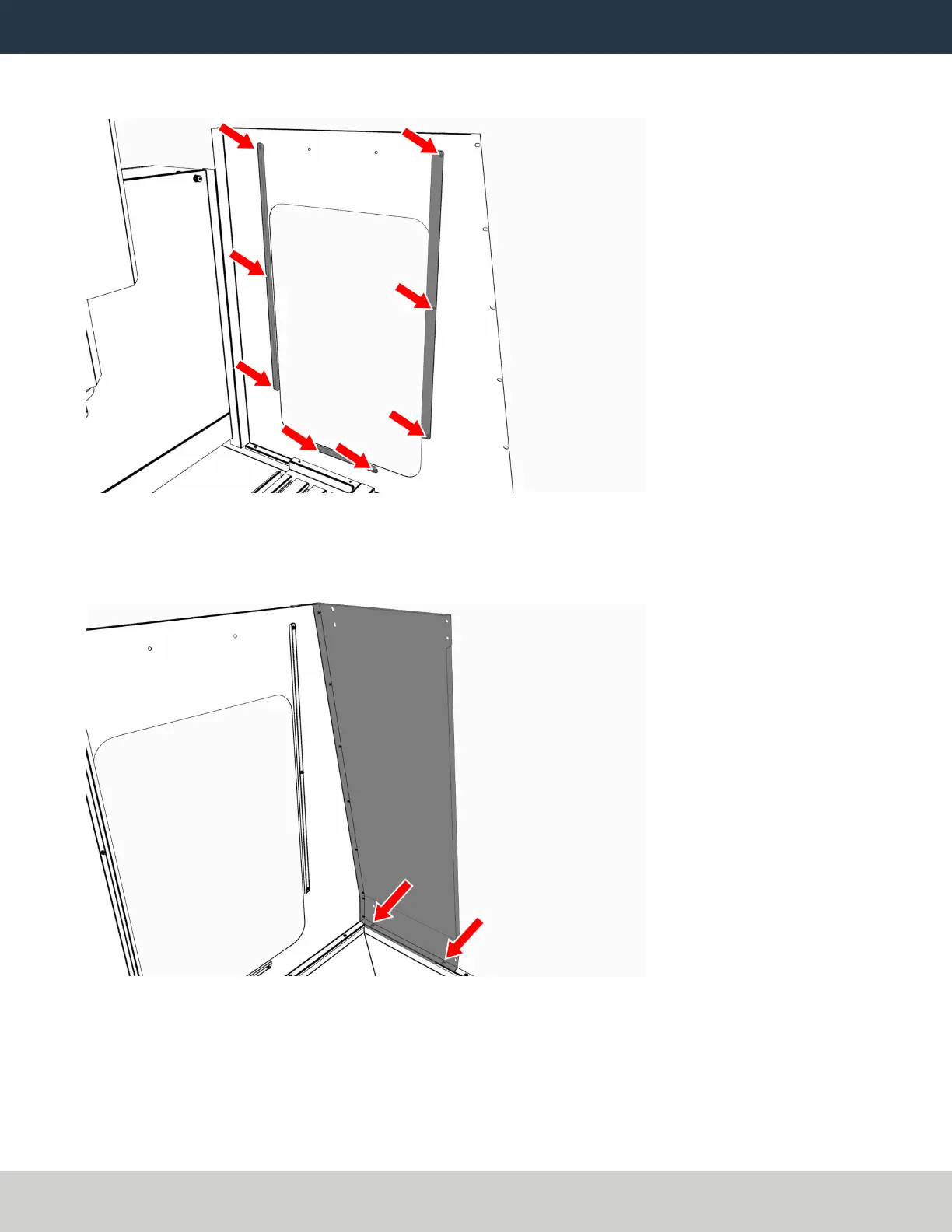

Figure 7: Side window retainers attached to the right side panel.
Install the Right Front Panel
1. Attach the right front panel to the right chip pan with two M6 × 1.0 - 12 screws.
Figure 8: Right front panel attached to the right chip pan.
