Tormach 770M Installation Guide

2.1 INSTALLATION

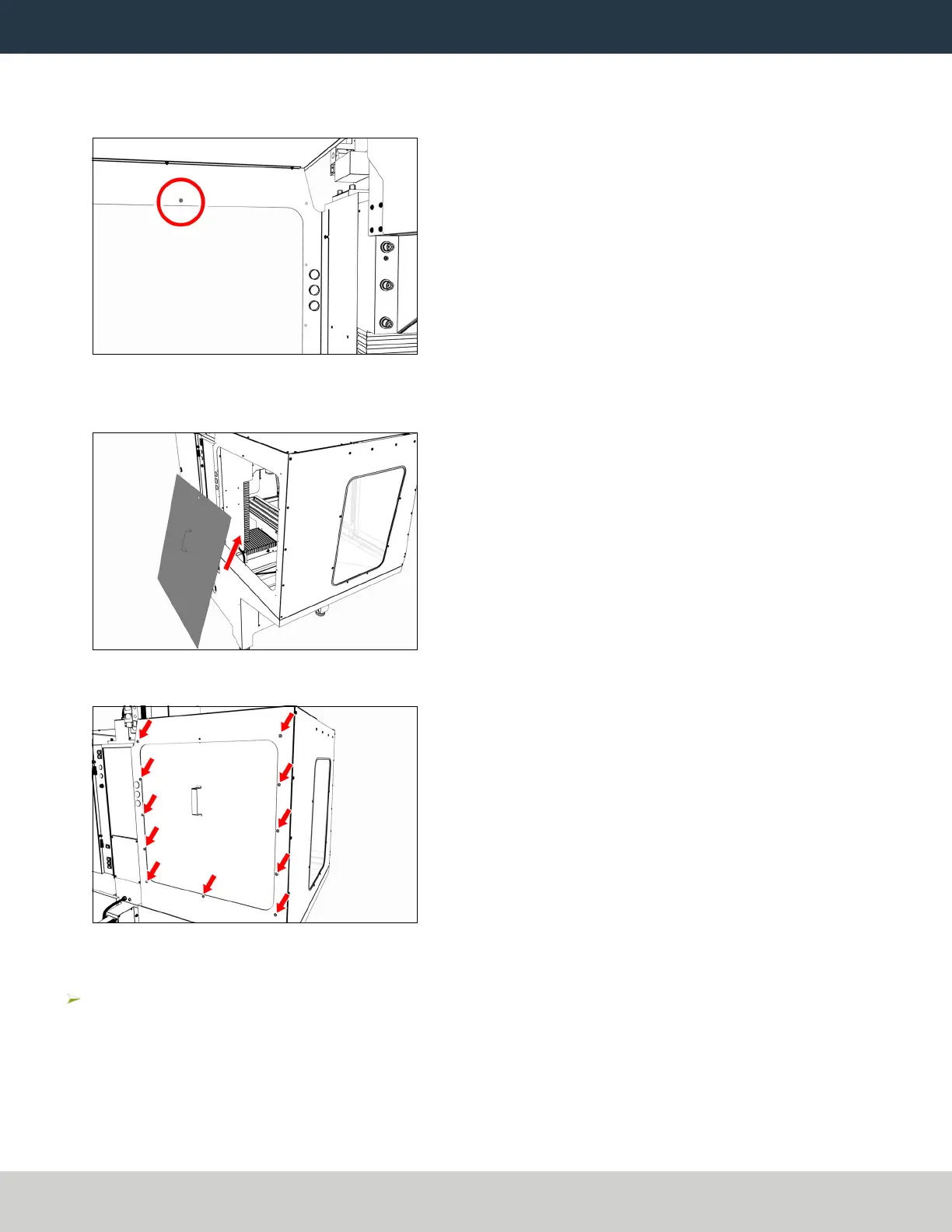

3. Find the threaded hole toward the top center of the left rear panel. Then, loosely install one M5 × 0.8 - 10 screw from the inside of the
enclosure.
This screw supports the access panel while you install the remaining fasteners.
Figure 2-35: Supporting screw inside the left rear panel.
4. Tilt the access panel and put it through the opening on the left rear panel. Then, hang it inside the enclosure on the installed M5 × 0.8 - 10
screw.
Figure 2-36: Access panel moving inside the enclosure.
5. Attach the access panel to the left rear panel from the outside of the enclosure with 11 M5 × 0.8 - 10 screws.
Figure 2-37: Access panel attached to the left rear panel.
2.1.7 Install the Stainless Steel Wear Guard
Find the stainless steel wear guard that you set aside earlier.
Attach it to the lower front panel with two M5 × 0.8 - 10 screws.
Page 20
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
