Tormach 770M Installation Guide

2.1 INSTALLATION
3. Slowly slide one window through the left top panel's window opening and into the two installed vertical window retainers. Take care to not
scratch the window. When finished, verify that the window rests on the bottom horizontal window retainer.

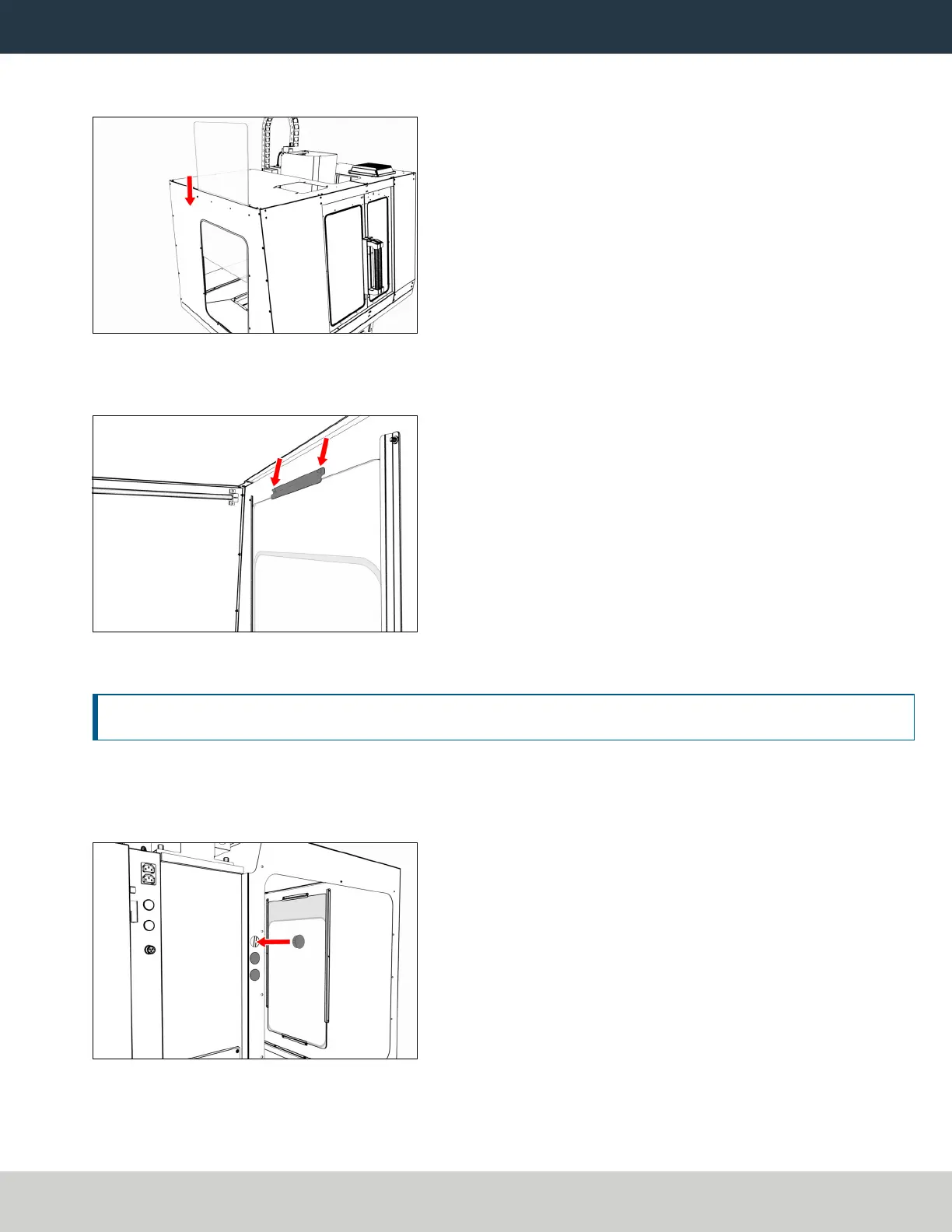

Figure 2-32: Window sliding into the window opening.
4. Push a strip of rubber trim onto the edge of one horizontal window retainer. When finished, use shears or a knife to cut the excess trim.
5. Attach one horizontal window retainer above the window on the left side panel with two M5 × 0.8 - 10 screws.
Figure 2-33: Horizontal window retainer attached above the window.
6. Tighten all screws on the window retainers to secure the window.
NOTICE! To prevent window damage from over-tightening, use your fingers to tighten the screws.
7. Repeat Steps 1 through 6 for the window on the right side panel.
2.1.6 Install the Access Panel
1. Push three round hole plugs into the three holes on the left rear panel.
Figure 2-34: Round hole plugs pushed into the left rear panel.
2. Push a strip of rubber trim to the edge of the access panel opening on the left rear panel. Verify that the trim covers the entire perimeter of the
opening. When finished, use shears or a knife to cut the excess trim.
Page 19
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
