Tormach 770M Installation Guide

2.1 INSTALLATION
3. Attach one floodlight retainer to either side of the lights with two sets of two M5 × 0.8 - 10 screws.
Verify that the floodlight is centered over the opening before hand-tightening the floodlight retainers.

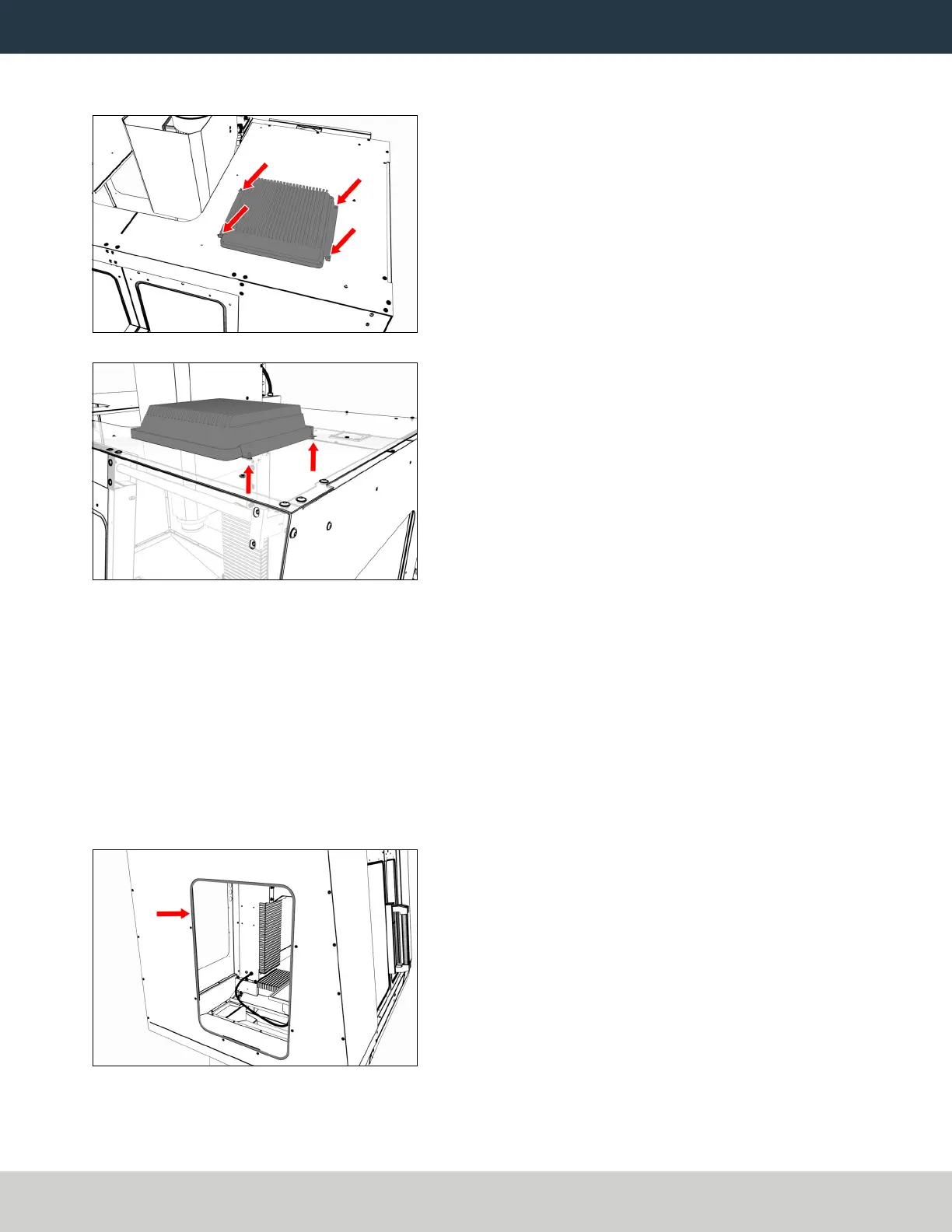

Figure 2-29: Floodlight attached to the top panel.
Figure 2-30: Attached floodlight from the inside of the enclosure.
4. Repeat Steps 1 to 3 to install the floodlight on the left side.
5. Connect the short power cable from the Enclosure Cable Kit to the plug on the right floodlight.
6. Connect the long power cable from the Enclosure Cable Kit to the plug on the left floodlight.
7. Route the power cables from the floodlights to the electrical cabinet.
8. Plug the floodlights into the Enclosure Lights outlet on the back of the electrical cabinet.
9. Attach the floodlights' power cables to the five wire tie anchors on the left and right top panels with five wire ties.
2.1.5 Install the Side Windows
1. Rubber trim is required to prevent leaks around the window openings:push a strip of rubber trim to the edge of the window opening on each
side panel. Verify that the trim covers the entire perimeter of the window. When finished, use shears or a knife to cut the excess trim.
Figure 2-31: Rubber trim pushed onto the window opening.
2. Remove and discard the protective plastic film from the windows.
Page 18
©Tormach® 2022
Specifications subject to change without notice.
tormach.com
TD10536: Installation Guide: 770M Enclosure (0522A)
