Tormatic B-600 - Input STOP A; Input STOP B; Power supply 24 V DC, max. 100 mA (switched)

37
Installation
B-600 / B-800 / B-1000

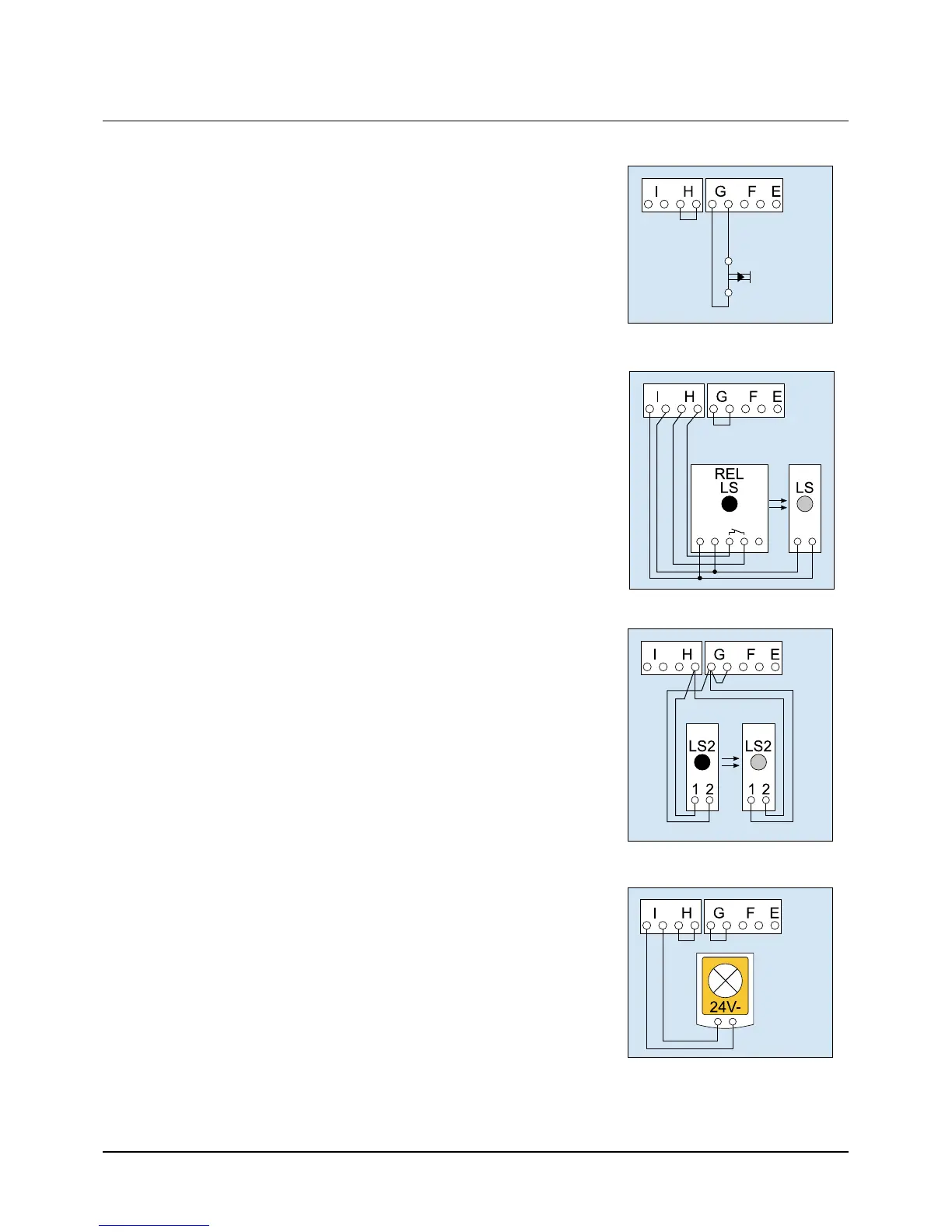

3. Input STOP A
The drive is stopped or the start-up is suppressed via this input.
G - Connection for slip contact (accessory) or emergency stop.
4. Input STOP B
This input activates the automatic reversal of the drive during closing.
H - Connection 4-wire photoelectric sensor (e.g. LS5)
- +-+
G // H - Connection of photoelectric sensor LS2 (please refer to the
connection points of the photoelectric sensor manual for use of
other photoelectric sensors)
5. Power supply 24 V DC, max. 100 mA (switched)
I - Connection for e.g. 24V signal light (accessory)
