tormek SVM-00 - Mounting the Knife; Mount Knife in SVM-00 Holder; Mount Knife in SVM-45 Jig

4
EN

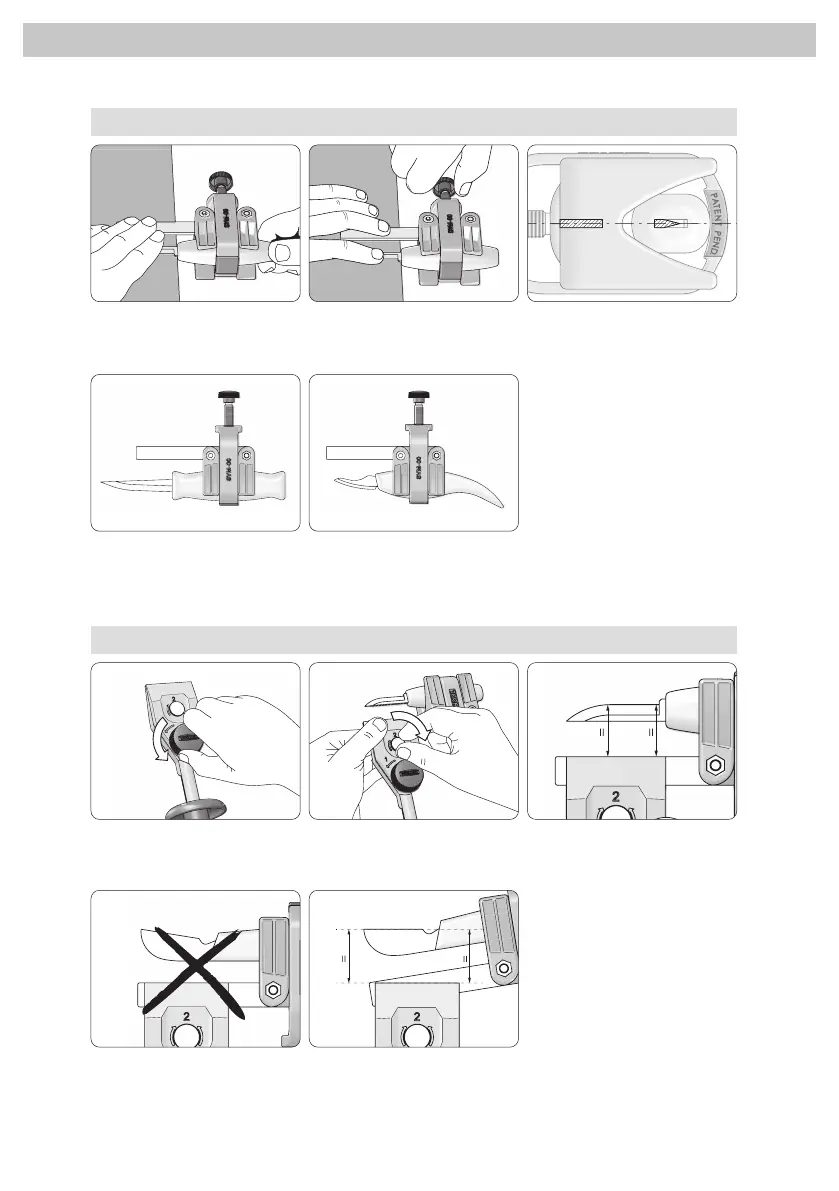

Mount the knife in the holder
whilst lying at on a table edge.
Press the Guide Bar and the
knife blade against the table.
Lock the knife with the Knob.
Check that the knife blade
is in line with the Guide Bar.
1. Mount the knife in the SVM-00 Small Knife Holder
Check that the Knob is loose. Mount the Guide Bar
in the jig with the small
adjustment screw.
Check that the knife edge
isparallel to the SVM-45.
Tighten the large black knob.
2. Mount the knife in the SVM-45 Knife Jig
The shape of the knife handle determines how far into the holder
the knife needs to be mounted. Make sure it is secured.
Wrong. The edge of the knife
is not parallel to SVM-45.
Right. The edge of the knife
is parallel to SVM-45.
Mounting the knife
