109

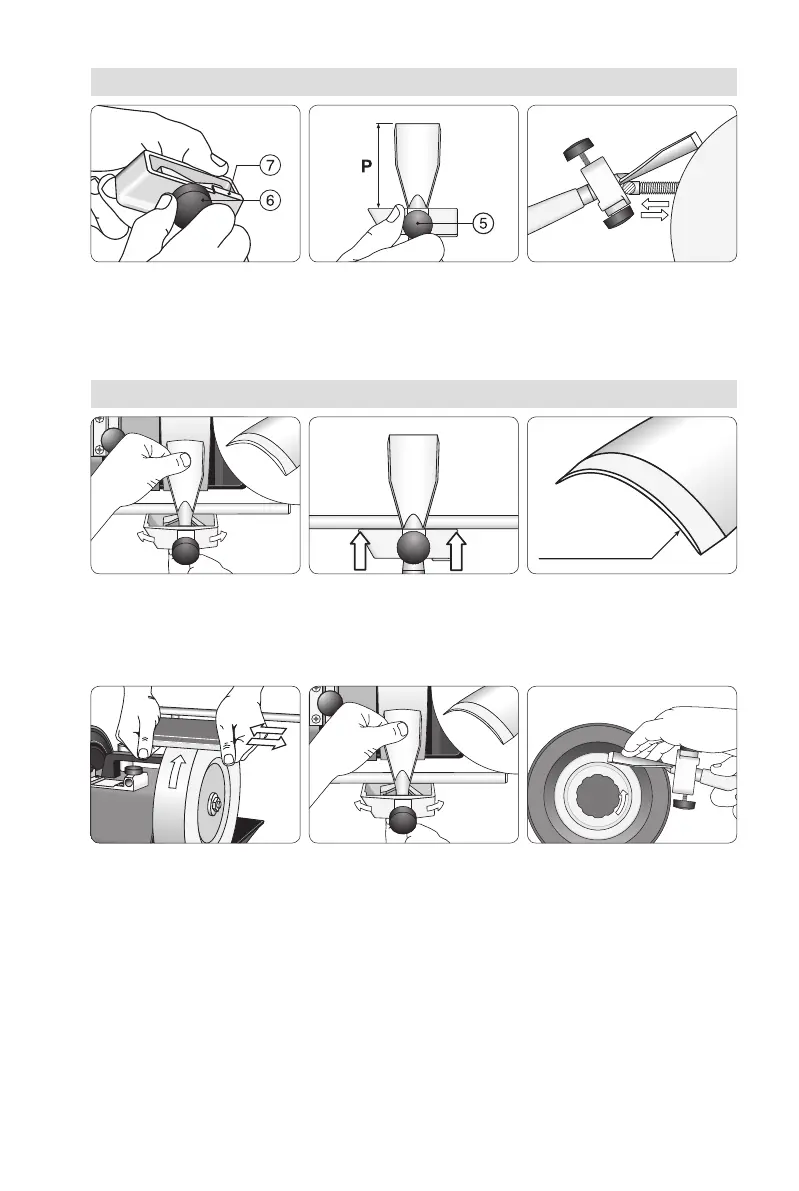

Lock the seat with the bottom
screw (6) in the straight posi-
tion, (0°). The seat should touch
the stop (7).
Mount the gouge protruding (P)
75–100 mm (3–4") and lock it
with the top screw (5).
Set the edge angle by adjusting
the Universal Support. When
replicating an existing angle,
use the Marker Method.
Mounting the tool and setting the jig
Always grind where the line of
light is thickest whilst rolling the
tool on the Universal Support.
Ensure that the entire flange
of the jig is in contact with the
Universal Support.
Check frequently where the
grinding is taking place. Grind
until you have a thin and even
line of light.
Grinding
Line of light
Grade the grindstone for fine
sharpening with the fine side
ofthe Stone Grader SP-650.
Continue grinding. Check the
result frequently.
Remove the burr on the leather
honing wheels so that you can
more clearly observe the line
of light.
To Next Page
