Tornado 97562 User Manual

7
Return the oor machine to the upright position
and adjust the handle to an operating position.
Recommended handle position is close the waist
with arms extended down. Lock the cam release
lever into position. NOTE: The hardened steel
cam release lever does not require extreme
tightening to effectively hold the handle in
position. Over-tightening the cam release lever
will shorten the functional life of the lever. To
remove drive block, brush or attachment: Lay the
oor machine on its back again and disengage
clutch plate slot from driving plate lugs by turning
it clockwise.

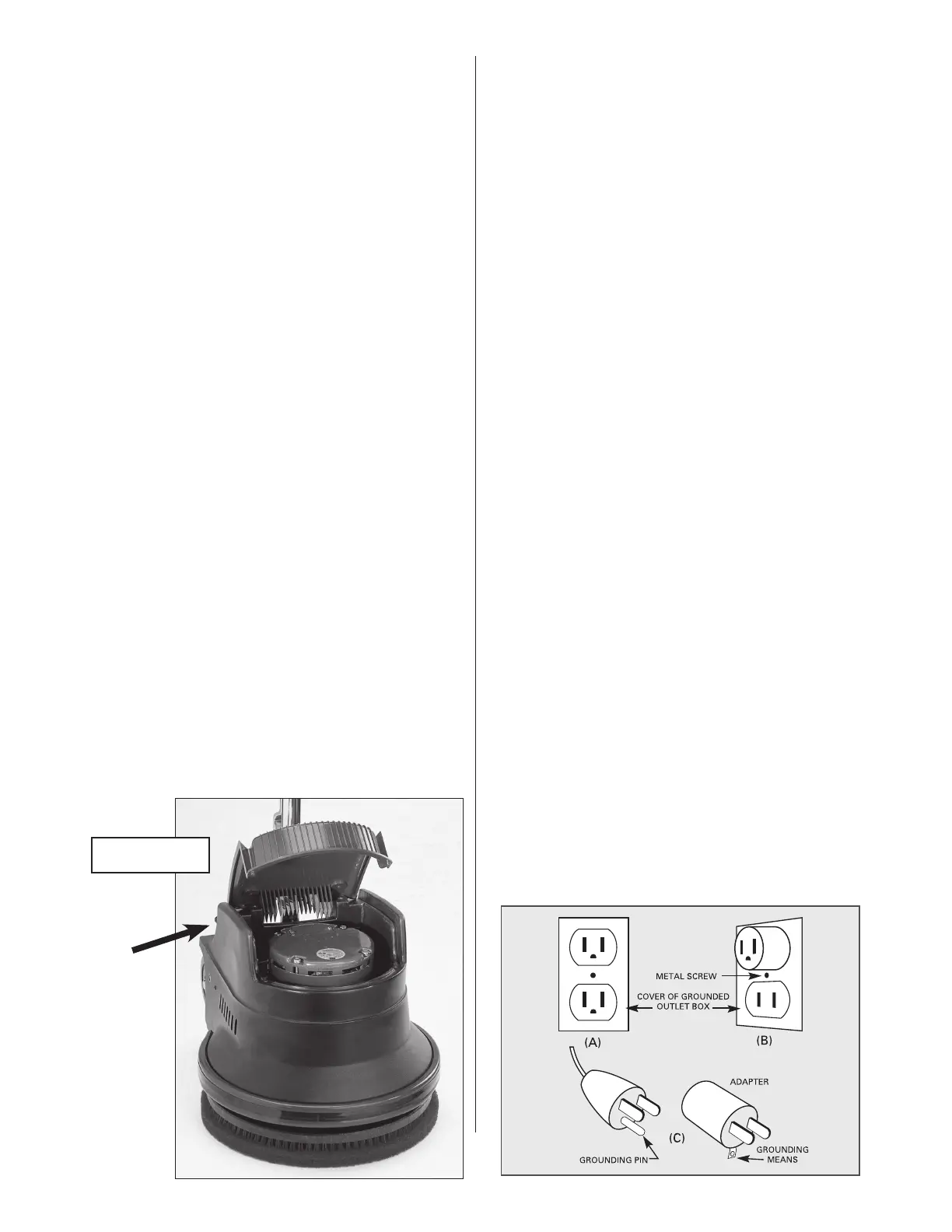

Figure #1
Figure #2
HOW TO OPERATE THE MACHINE
First, install the pad driver and pad, brush,
or other attachment to be used. Plug the
machine in as directed and lower the handle to
the desired operating height and lock in place
using the cam lever handle. Push the safety
switch forward (see gure #3) and squeeze the
switch triggers beneath the handle grips. This
activates the motor and stars the block, brush or
attachment in operation. Each time your release
the triggers the safety switch will reset. You will
need to follow the direction above to restart the
machine. CAUTION: When leaving the machine
unattended, disconnect the wall plug and return
the handle to the “locked” upright position to
prevent accidental starting.
TO GUIDE YOUR FLOOR MACHINE
To the Right: raise the handle slightly. The
higher the handle is lifted, the faster the machine
will move to the right. To the Left: lower the
handle until the machine moves to the left.
The more the handle is lowered the faster the
machine will move to the left.
gure 4
Switch
Trigger
Safety
Switch
TO INSTALL THE OPTIONAL SOLUTION TANK
Mount the solution tank to the front of the
handle and attach with mounting brackets and
knobs. Position the solution tank control handle
horizontally and below the switch lever of the
machine and adjacent to the right handle grip.
Remove the plug from the motor housing and
insert the (long) extension tube adaptor and
secure at bottom of machine with the retainer.
The solution tank should be used only with a
shower feed drive block or bush.
TRANSPORTING THE MACHINE
Place the handle in the upright position. Lock the
handle cam release lever. Tip the machine back
and transport on the wheels.
