Tornado 99720 BD 26/14 User Manual


BEFORE USE
The machine is supplied with suitable packing
for forklift truck handling.
The total weight is 269 lbs.
Packing dimensions:
Base: 54.13 in x 26.18 in
Height: 46.65 in.
ATTENTION:
Do not place more than 2 pallets on top of
each other.

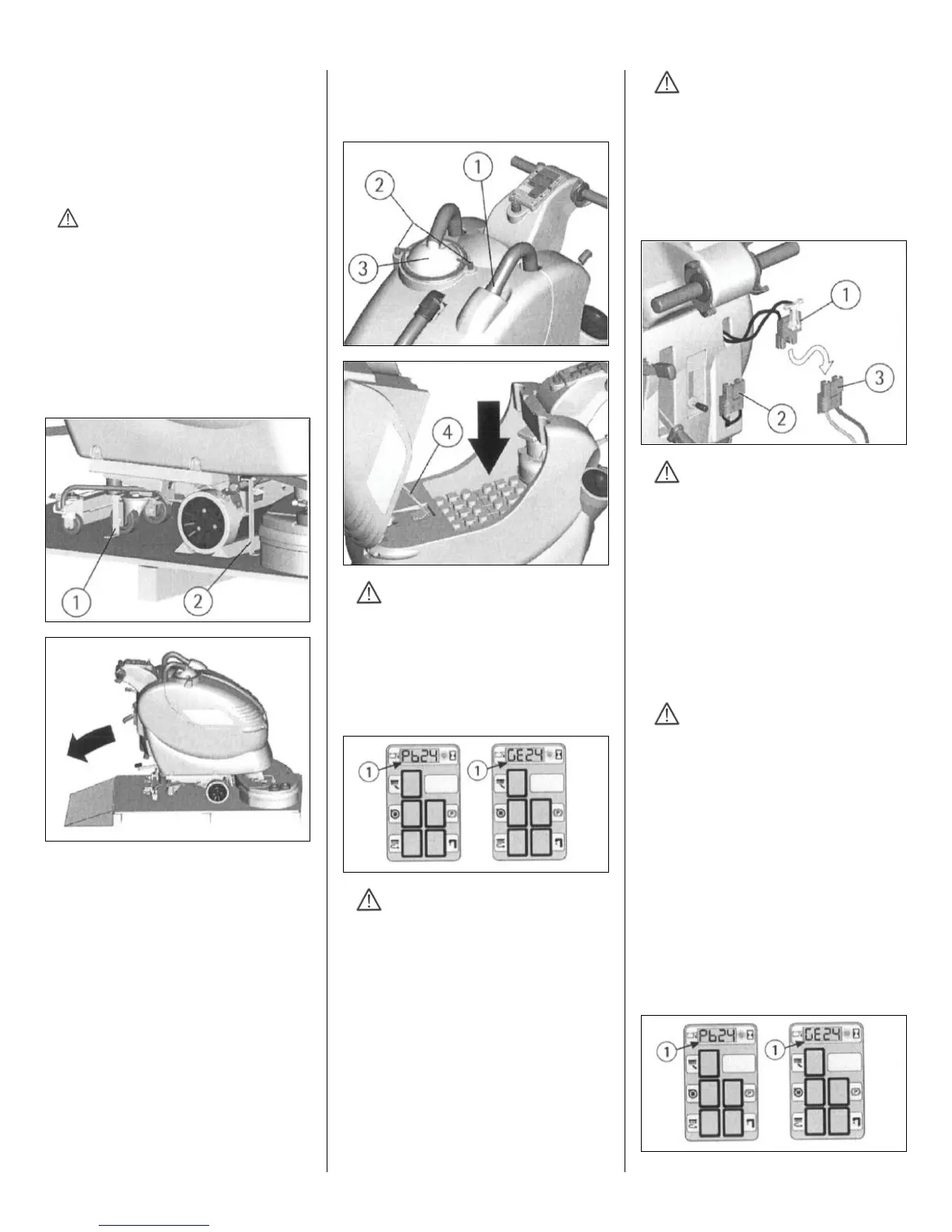

UNPACKING THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets (1+2) that secure the
machine to the pallet.
3. Move the machine backwards, as indicated
in the figure, avoiding heavy contacts to
mechanical parts.
4. Keep the pallet and the brackets for future
transport.
BATTERY INSTALLATION AND
SETTING THE BATTERY TYPE
This machine is equipped either with two
batteries at 12V in serial connection or elements
of DIN-type assembled together and connected
in series for a total of 24 Volt, placed in its
appropriate compartment under the recovery
tank. It must be handled using suitable lifting
equipment (due to weight, consider the type of
batteries chosen, and coupling system).
The batteries must be in accordance with CEI
21-5 Norms.
For battery installation, proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning
the blocking levers (3).
3. Lift the recovery tank by rotating it and keep
it in place using the bar (4).
4. Place the batteries in the compartment.
5. Connect the terminals, respecting the
polarities, avoiding contact with other parts that
could create short circuit.
6. Reassemble all parts.
ATTENTION:
The machine and its battery check card show
the use of traditional lead batteries.
CHECK SETTING OF THE CHECK CARD
ON THE INDICATOR (1).
In case of WET battery installation, it is
necessary to set the battery check card.
Please contact an authorized technical
assistant.
ATTENTION:
Strictly follow manufacturer/distributor
indications for the maintenance and recharge
of the batteries. Specialized staff, using
suitable protection accessories, must execute
all installation and maintenance operations.
BATTERY CHARGER
Be sure that the battery charger is suitable for
the installed batteries both for their capacities
and type (lead/acid or WET and equivalent).
In the plastic bag containing the use and
maintenance you will find the coupling
connector for the charger. It must be assembled
onto the cables of your charger. Follow the
instructions given by the manufacturer.
ATTENTION:
Qualified staff must carry out this operation. A
wrong or faulty cable connection can create
serious damages or injuries.
BATTERY RECHARGING
Bring the machine on a leveled surface.
Plug in the battery connector (1), placed in the rear
part of the machine, to the connector (3) of the
battery charger.
ATTENTION:
Never charge a WET battery with a non-
suitable recharger. Strictly follow the
instructions supplied by the battery and
charger manufacturer.
In order not to cause permanent damage to the
batteries, it is necessary to avoid their complete
discharge. Provide recharging within a few
minutes after the battery discharge signal starts
blinking.
NOTE: Never leave batteries completely
discharged even if the machine is not used. In
case of a traditional battery, please check the
electrolyte level every 20 recharging cycles and
fill them up with distilled water when necessary.
ATTENTION:
For the recharge of the batteries, it is necessary
to strictly follow all the indications given by the
manufacturer/distributor. Qualified staff must
carry out all the installation and maintenance
operations. Danger: Gas exhalations, emission
of corrosive liquids. Do not approach in case of
fire.
BATTERY DISPOSAL
Hand over exhaust batteries, classified as
dangerous waste, to an authorized institution
according to the current laws.
BATTERY CHARGE LEVEL INDICATOR
WHEN THE MACHINE IS SWITCHED ON,
THE DISPLAY (1) SHOWS THE SETTING OF
THE BATTERY CHECK CARD:
GE 24: check card set for WET batteries.
Pb 24: check card set for lead batteries.
