BATTERY POWER LEVEL INDICATOR
The battery power level gauge is located on the upper control panel. The gauge has red, yellow and green
LEDs to indicate the amount of power left in the batteries.
On lead acid battery-equipped units, when the discharge level reaches the rst red LED, it is a good time
to nish your scrubbing application and recharge the unit. If you do choose to continue scrubbing, when
the last red LED begins to ash, the unit will shut down the brush motor but leave the vacuum and traction
drive operational to perform nal water recovery and transport back to storage. This function not only
serves as an indicator that your battery level has reached a point where recharging is required, but also
protects the batteries from being fully discharged.
AGM battery-equipped units should not be used after the last yellow LED goes out leaving only red LEDs.
Using the unit beyond this point can reduce the life of the batteries.
NOTE: The traction drive battery power level gage also displays fault codes. The LEDs will ash specic fault
codes if a fault is detected. See Troubleshooting section for LED fault codes.
MACHINE PREPARATION
USING YOUR ON-BOARD CHARGER
CHARGING THE BATTERIES WITH AN ON-BOARD CHARGER
Before using your unit for the rst time, fully charge your batteries.
1. These units are equipped with an on-board charger.
2. The on-board charger is equipped with a 9 foot long cord that can be plugged directly into a 120V outlet.
3. The cord wrap on the unit has a quick-release hook. The lower hook allows the user to slip the cord o
and then the cord can be lifted o the upper hook, all without having to unravel the entire cord.

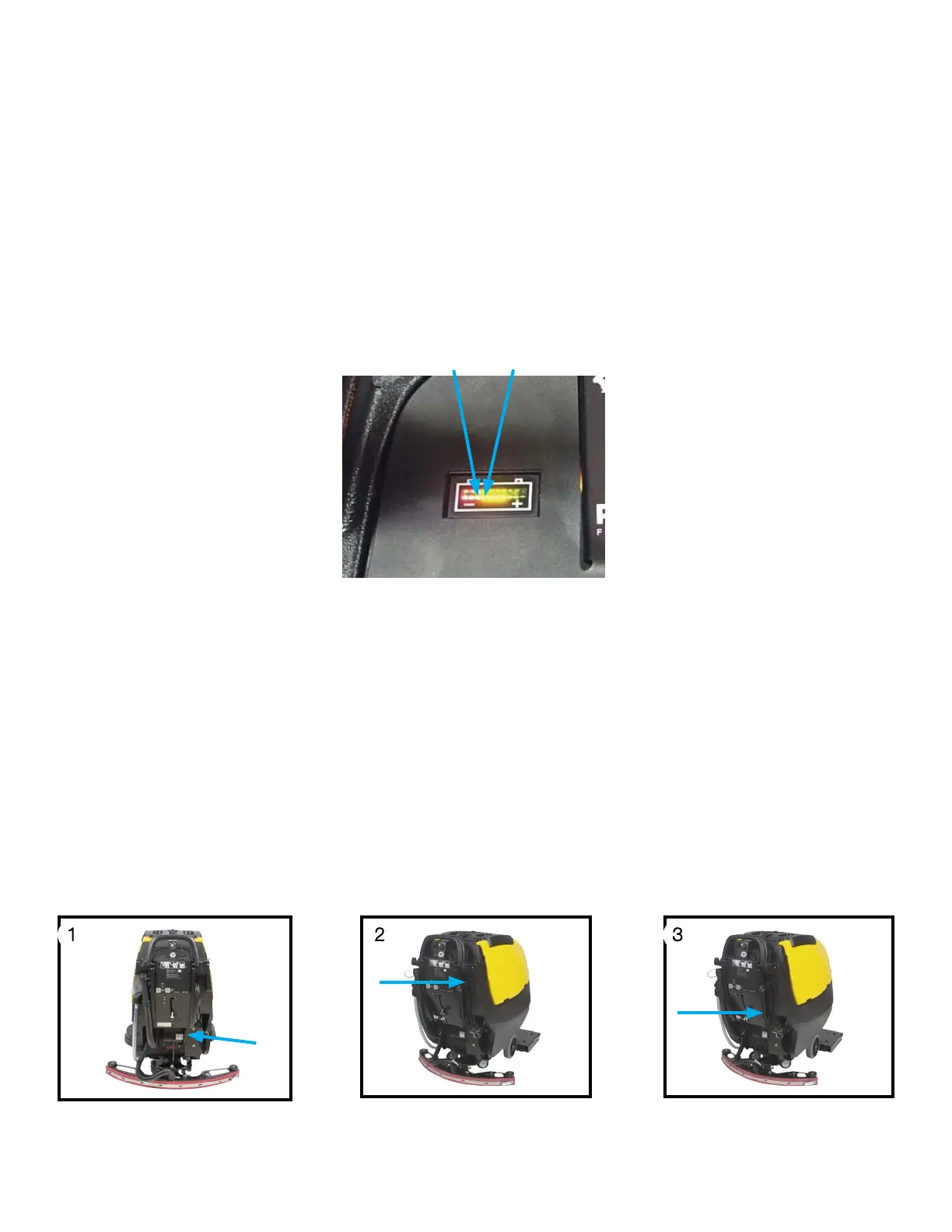

Battery Level Indicator -
Traction Drive Models
Recharge AGM
batteries
Recharge lead
acid batteries
Quick release hook
3
On-board charger
1
On-board charger cord wrap
2
