tornos MULTIDECO 26/6 - Surface Load; Levelling

INSTALLATION – MULTIDECO 26/6 – MULTIDECO 32/6i
300381 en – 06/02 Chap. 3.2.2 /5
3.2 INSTALLATION
3.2.1 Surface load
∆ Caution!
Take account of the admissible loading of the floor depending on the
machine equipment to be installed
– approximately 12 daN/cm
2
.

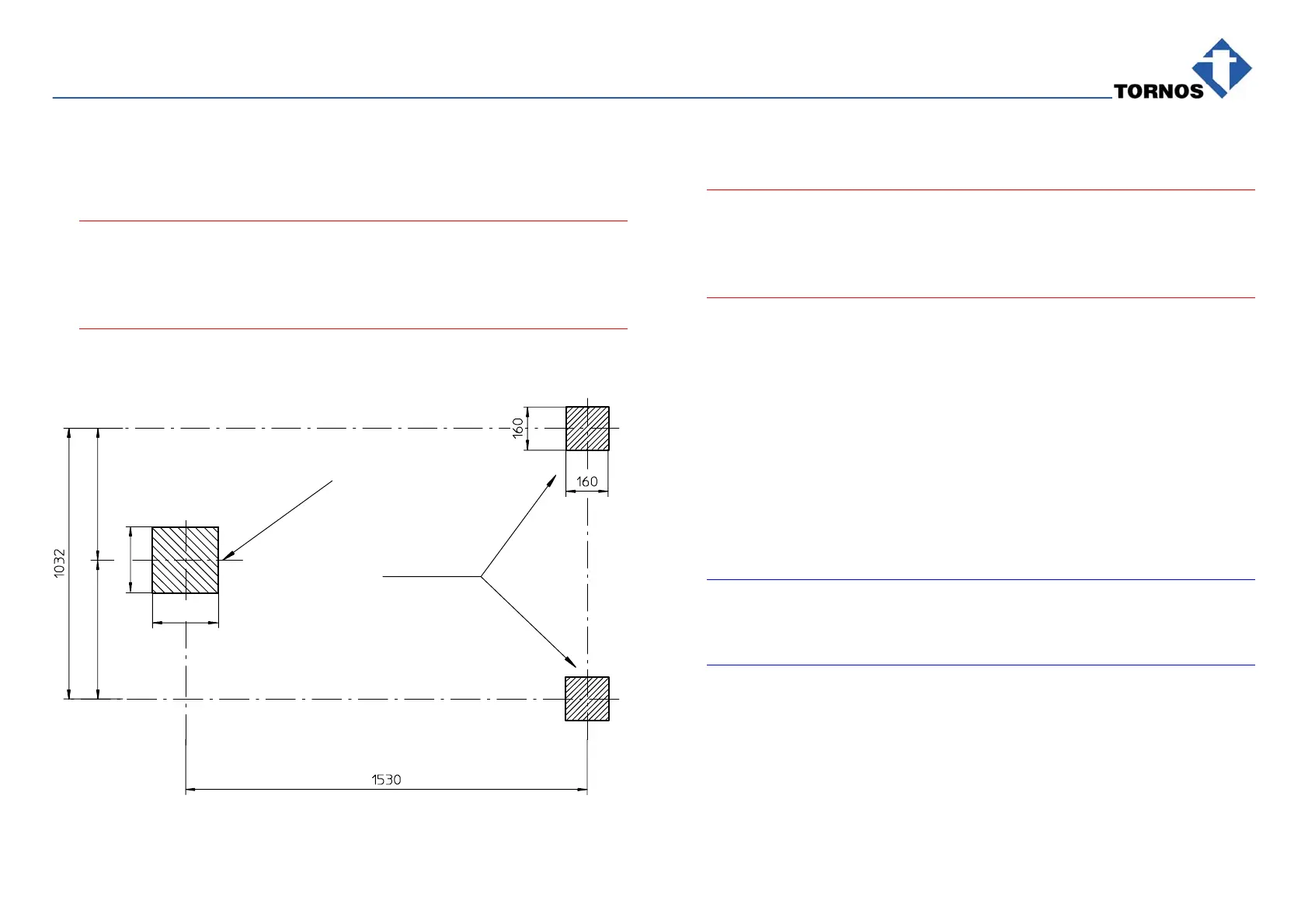

P = Floor loading per levelling pad.
P = 2500 kg
P = 5000 kg
250
=
250
=
3.2.2 Levelling
∆ Caution!
To ensure correct functioning of the machine under the best possible
conditions, the levelling procedure described hereafter must be strictly
complied with.
The machine must be installed on a hard, stable, vibration–free floor. If this
is not available, cast a concrete bedding.
While the machine is lifted, remove 4 (transport) plates 1, insert instead 2 bolts
10 of levelling elements 15 in the holes and keep screwing nuts 11 until level-
ling elements 15 rest against the bed plates, switch cabinet side.
Put the base definitively down on the floor directly or in a flat sump, ensuring
that the third support element is set in place (250 x 250 mm, see Fig. oppo-
site).
⇒ Note:
The switch cabinet rollers must touch the floor. Ties 5 are then relieved
from carrying the weight of the cabinet.
Perform levelling carefully by turning the screws 17 of the levelling elements
15.
Use a precision spirit level: 0.020 mm/1000 mm, positioned on the base in
front of the control frame (Figs. 302 to 305).
