INSTALLATION – MULTIDECO 26/6 – MULTIDECO 32/6i
300381 en – 06/02 Chap. 1.4 /2
1.4 INSTALLATION OF AN IEMCA barfeeder for MULTIDECO 26/6
∆ Attention !
For impeccable operation of the BARFEEDER–LATHE assembly
TORNOS have issued instructions with the characteristics & functions
required for the feeder–lathe interface. The instructions are entitled :
INTERFACE SPECIFICATIONS FOR STOCK TUBE OR BARFEEDER
These specifications must be strictly complied with to avoid malfunction-
ing of the bar feeding system, which might be imputed to the lathe.
TORNOS declines any liability whatsoever, should a damage or acci-
dent be imputed to a tube / feeder which do not conform to the said
specifications &/or standards in force.
BARFEEDER INSTALLATION
Action Notes

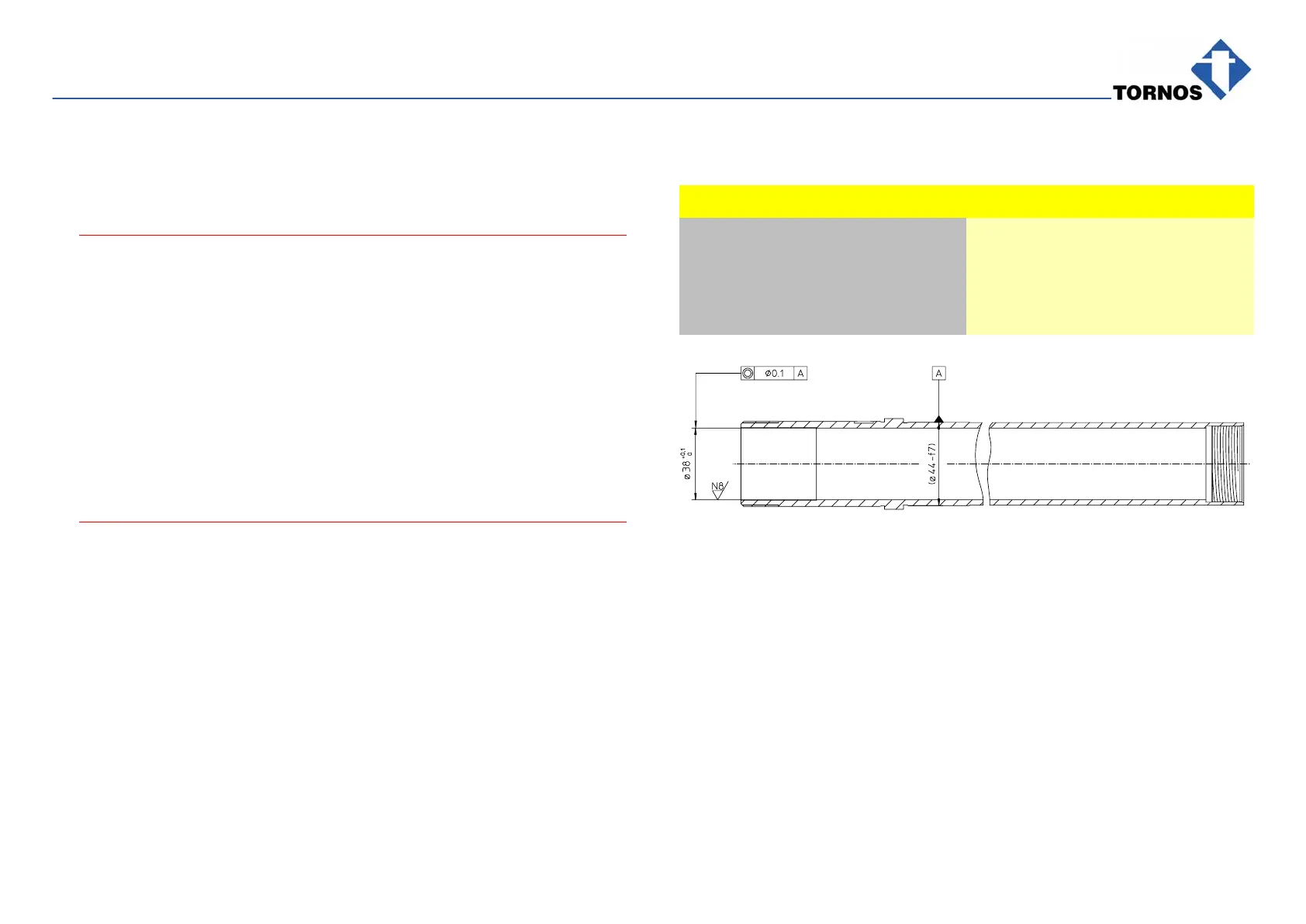

– Remove feed mechanism 1 and
stock feed tube 2.
Fig. 112
– Turn dia. 38 in bronze rings. Fig. 111
111
