Adjusting Maximum Mow-Ground Speed (continued)

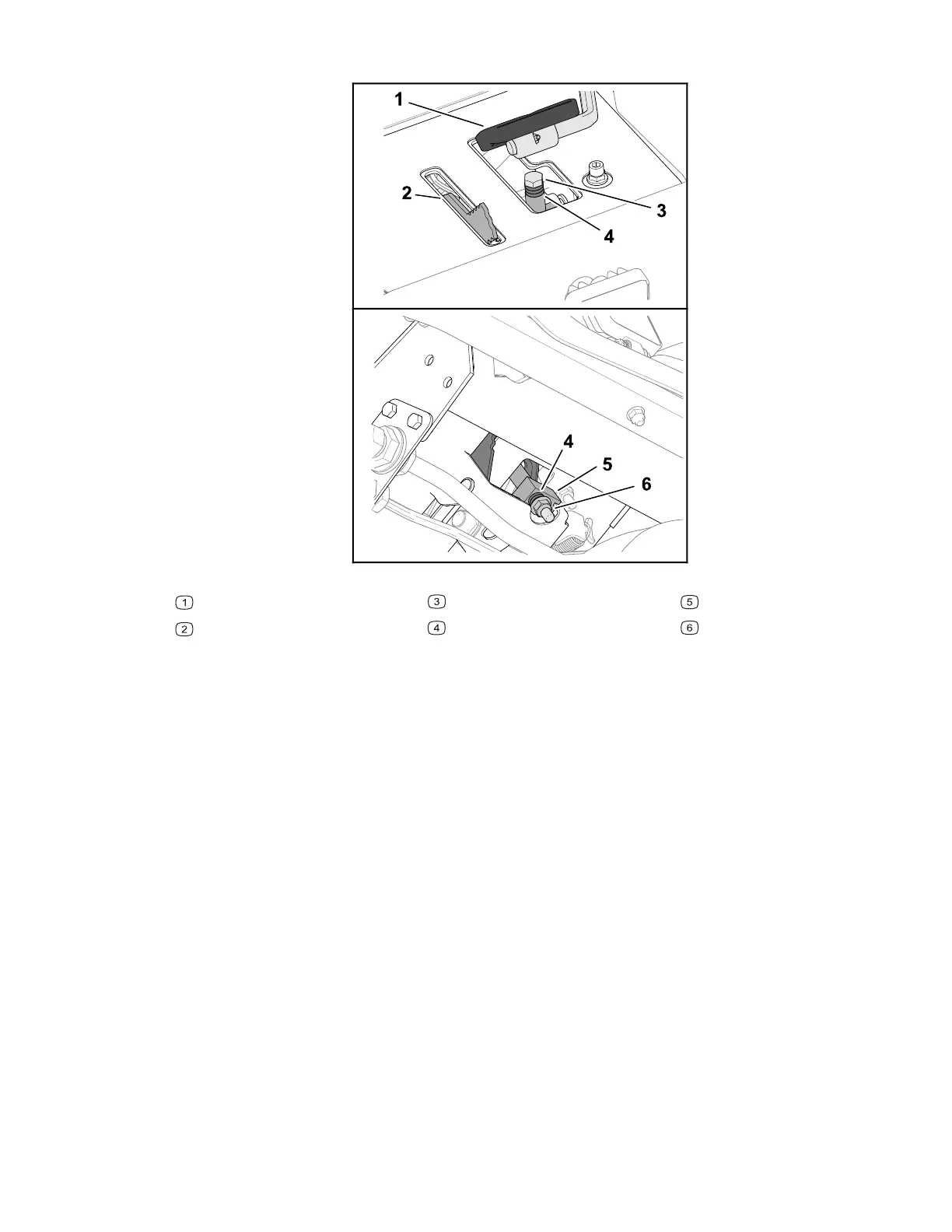

G425372
Traction pedal
Mow-speed limiter
Stop bolt
Short spacers
Mow-stop block
Flange locknut
4. Position the long spacer above the mow-stop block.
5. Position the short spacers as you determined in step 2.
6. Secure the spacers to the mow-stop block with the stop bolt and flange locknut that you
removed in step 3.
Note: You must install all 6 short spacers and the long spacer.
7. Set the mow speed in the InfoCenter.
Setting the Mow Speed in the InfoCenter
The mow speed setting in the InfoCenter is used by the TEC to adjust reel speed of the
cutting units to the maximum mow-ground speed.
1. In the InfoCenter, access the Main Menu.
2. In the Main Menu, press the middle button until the Settings option is highlighted, and
press the right button.
3. In the Settings Menu, press the middle button until the Protected Menus option is
highlighted, and press the right button.
4. In the Protected Menus screen, enter the PIN code.
Maintenance: Drive System Maintenance Page 6–34 3466-702 A
