Overview of the InfoCenter Display (continued)
Release the switch. Bulb
Switch Change to the indicated
state.
Engine rpm/status—
indicates the engine
speed (rpm)
Hydraulic fluid
temperature
High: over allowed range Low: under allowed
range
Out of range Fan is reversed
Stationary regeneration
required

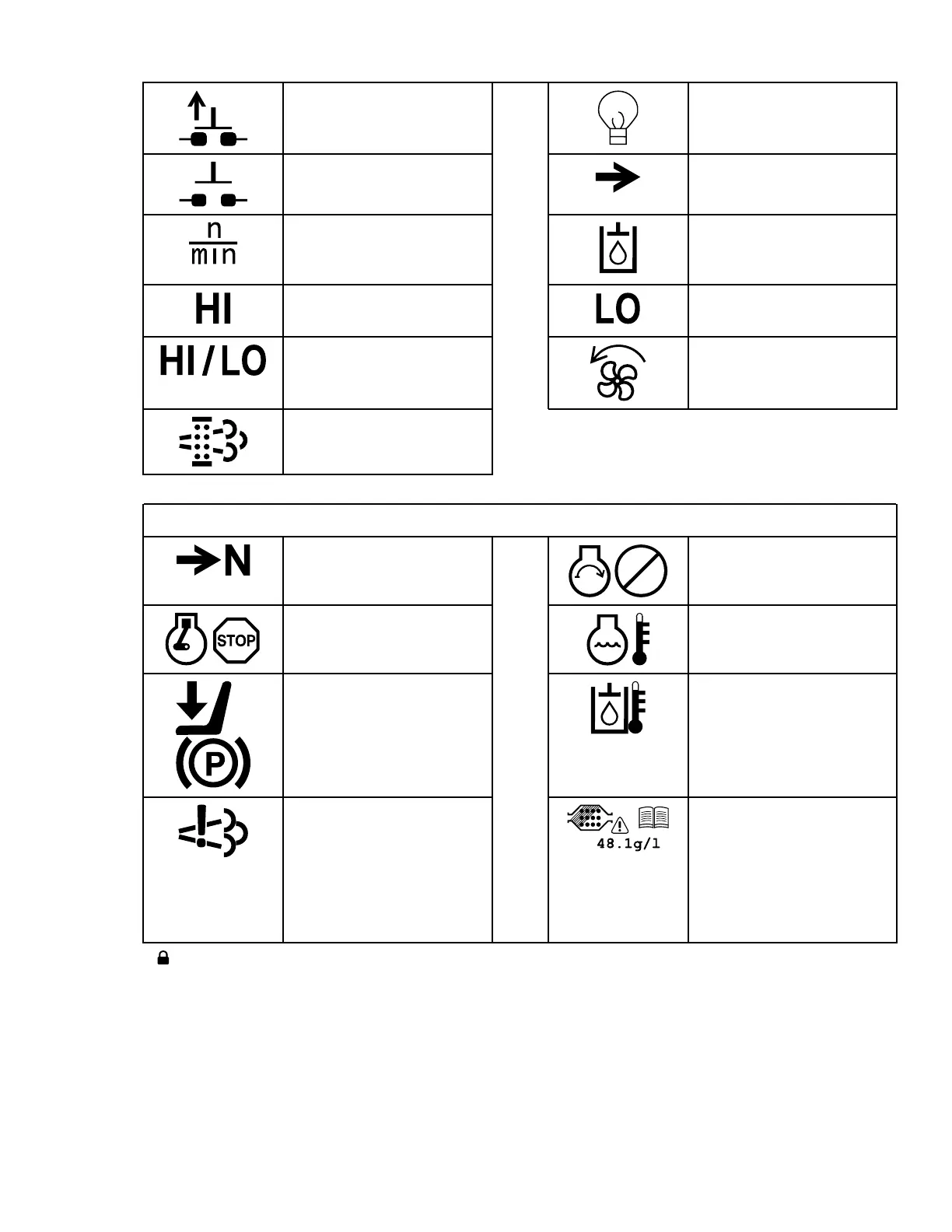

Symbols are often combined to form sentences. Some examples are shown below
Put the machine into
Neutral.
Engine start is denied.
Engine shutdown Engine coolant is too hot.
or
Sit down or set parking
brake
Hydraulic fluid is too hot.
NOx control diagnosis
malfunction; drive the
machine back to the shop
and contact your
authorized Toro
distributor (software
version F and later).
DPF ash-accumulation
notification
* Accessible only by entering PIN
Overview of the Menus
To access the InfoCenter menu system, press the menu access button while at the main
screen. This brings you to the main menu. Refer to the following tables for a synopsis of the
options available from the menus:
3466-702A Page 5–7 Operation: Before Operation
To Next Page
