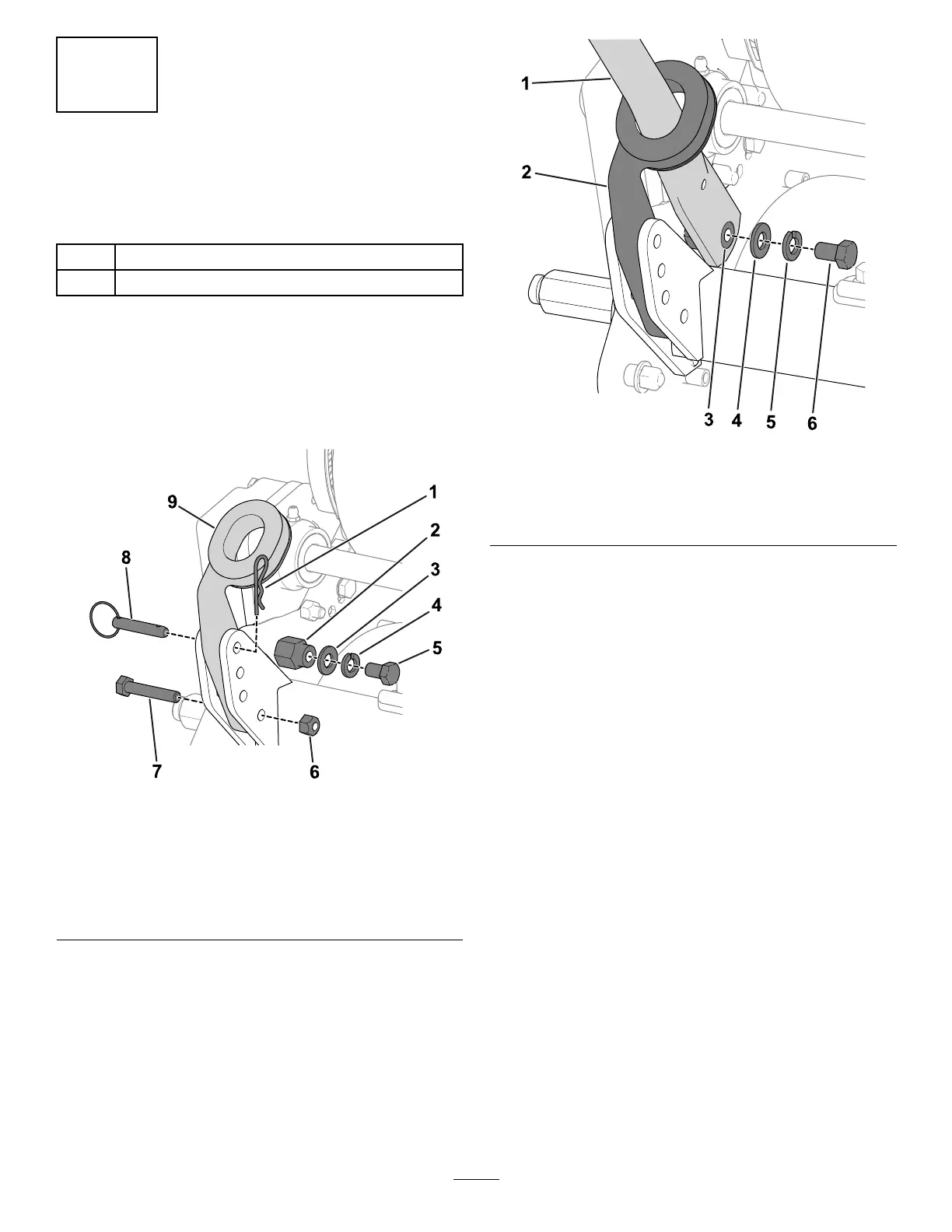

8
Specifications
General Specifications
Engine
Kawasaki, air cooled, overhead valve, 4 cycle, 3.7 horsepower, 2.36 x 1.73 bore
and stroke, 7.57 cu. in. (124 cc) displacement, 8.4:1 compression ratio, 11 ft.-lb.
(15 N⋅m) @ 1400 rpm. Electronic ignition, maximum noise suppression muffler.
2.64 quart (2.5 l) fuel tank capacity.
Traction Drive
Engine to countershaft drive: two “A” section V-belts. Countershaft to differential
drive: 5 mm pitch timing belt. Differential to drum drive: 8 mm pitch timing belt.
Differential Peerless Series 100
Transport Clutch Belt idler
Brake Band drum
Transport Tires Quick detachable, 3.00/3.25 x 6, 32.5 tread width
Traction Drum Dual cast aluminum, 7.5 in. (19 cm) dia.
Controls
Engine has recoil starter, On/Off switch and choke. Handle has throttle lever,
traction engage lever and service/ park brake lever. Mower has reel drive engage
lever. Safety devices: neutral interlock system.
Handle Loop style, 1 in. (2.5 cm) dia.
Reel Construction 5 in. (12.7 cm) dia., 8 carbon steel blades welded to 6 stamped steel spiders
Bedknife and Bedbar
Single edged high carbon steel bedknife, hardened to Rc 48-54. Fastened to
machined, cast iron bedbar. 1/8 in. (0.3 cm) bedknife, standard
Height-of-Cut Range 1/8 to 1-1/4 in. (0.3 to 3.2 cm)
Reel Clutch Jaw type
Grass Basket Molded polyethylene
Model 04048 Model 04052 Model 04060
Clip .16 in. (.4 cm) .16 in. (.4 cm) .23 in. (58.4 cm)
Width of Cut 18 in. (46 cm) 21 in. (53 cm) 26 in. (66 cm)
Total Width 33 in. (84 cm) 36 in. (91 cm) 41 in. (104 cm)
Total Height 41-1/2 in. (105.4 cm) 47 in. (119 cm) 41-1/2 in. (105.4 cm)
Total Length 54-1/4 in. (137.8 cm) 59 in. (150 cm) 54-1/4 in. (137.8 cm)
Dry Weight 200 lb. (91 kg.)
1
208 lb. (94 kg.)
1
229 lb. (104 kg)
1
1
With basket and Wiehle roller, without wheels or grooming reel
