onthedipstick,addoiltobringtheoilleveltotheFULL
mark.Donotoverll.
Important:Keeptheengineoillevelbetweenthe
upperandlowerlimitsontheoilgauge;theengine
mayfailifyourunitwithtoomuchortoolittleoil.
1.Parkthemachineonalevelsurface,shutoffthe
engineandremovethekey.
2.Removethedipstickandwipeitwithacleanrag
(Figure34).
Important:Removethedipstickwhilelling
theenginewithoil.Whenaddingengine
oilorllingoil,theremustbeclearance
betweentheoillldeviceandtheoilll
holeinthevalvecoverasshowninFigure
33.Thisclearanceisnecessarytopermit
ventingwhenlling,whichpreventsoilfrom
overrunningintobreather.

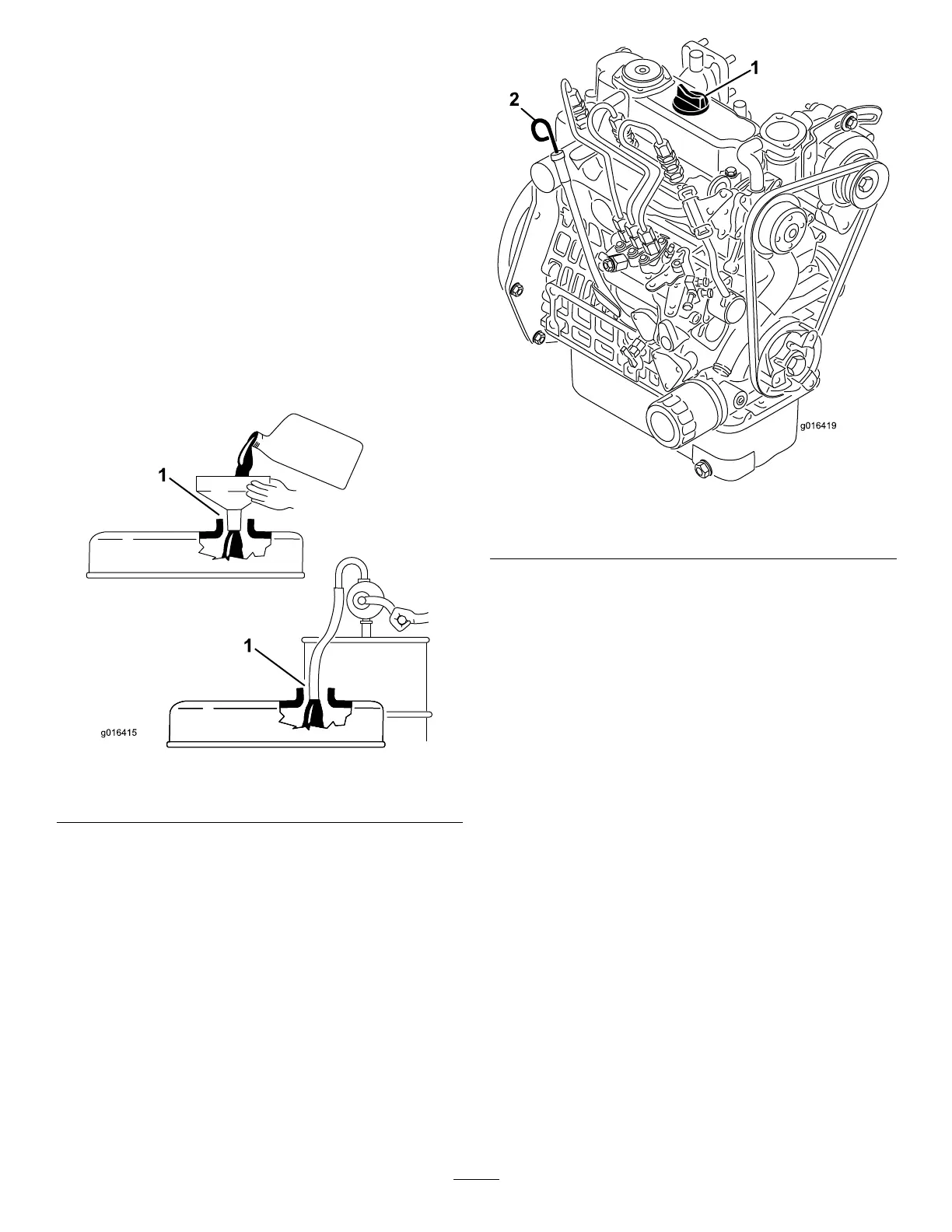

g016415
Figure33
1.Noteclearance
g016419
Figure34
1.Fillercap2.Dipstick
3.Pushthedipstickintothetubeandmakesureit
isseatedfully.
4.Removethedipstickfromthetubeandcheck
thelevelofoil.
Note:Iftheoillevelislow,removethellercap
fromthevalvecoverandslowlyaddenough
oiltoraisetheleveltotheFULLmarkonthe
dipstick.
Addtheoilslowlyandchecktheleveloften
duringthisprocess.Donotoverll.
5.Replacethedipstick.
6.Startandruntheengineatidlefor30seconds,
thenshuttheengineoff.Wait30seconds,then
repeatsteps2through5.
7.Installthellercapanddipstickrmlyinplace.
ChangingtheEngineOilandFilter
ServiceInterval:Aftertherst50hours
Every150hours
1.Removethedrainplug(Figure35)andlettheoil
owintoadrainpan.Whentheoilstops,install
thedrainplug.
35
