Toro 08120 - Routing Coolant Hoses

6
Routing the Hoses
Parts needed for this procedure:
6
Cable tie
2 Band clamp
1 W ater valve
3 Hose
Procedure
1. Disconnect the existing coolant hose from the
side of the coolant tank ( Figure 20 ) and shorten
the hose by 23 cm (9 inches).
Retain the band clamp for reuse.

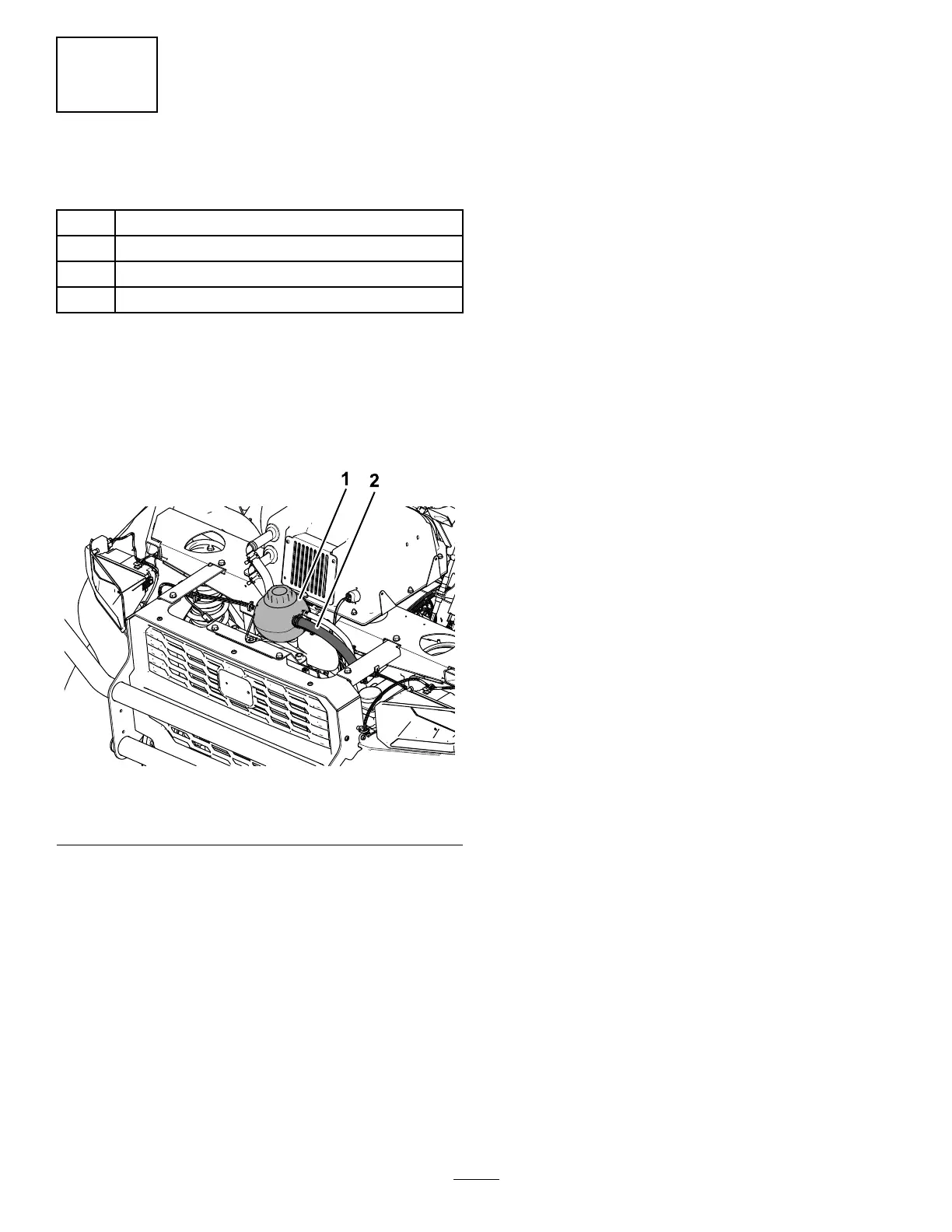

g409844
Figure 20
1. Coolant tank
2. Existing coolant hose
