Toro 30344 - Product Overview; Controls

ProductOverview

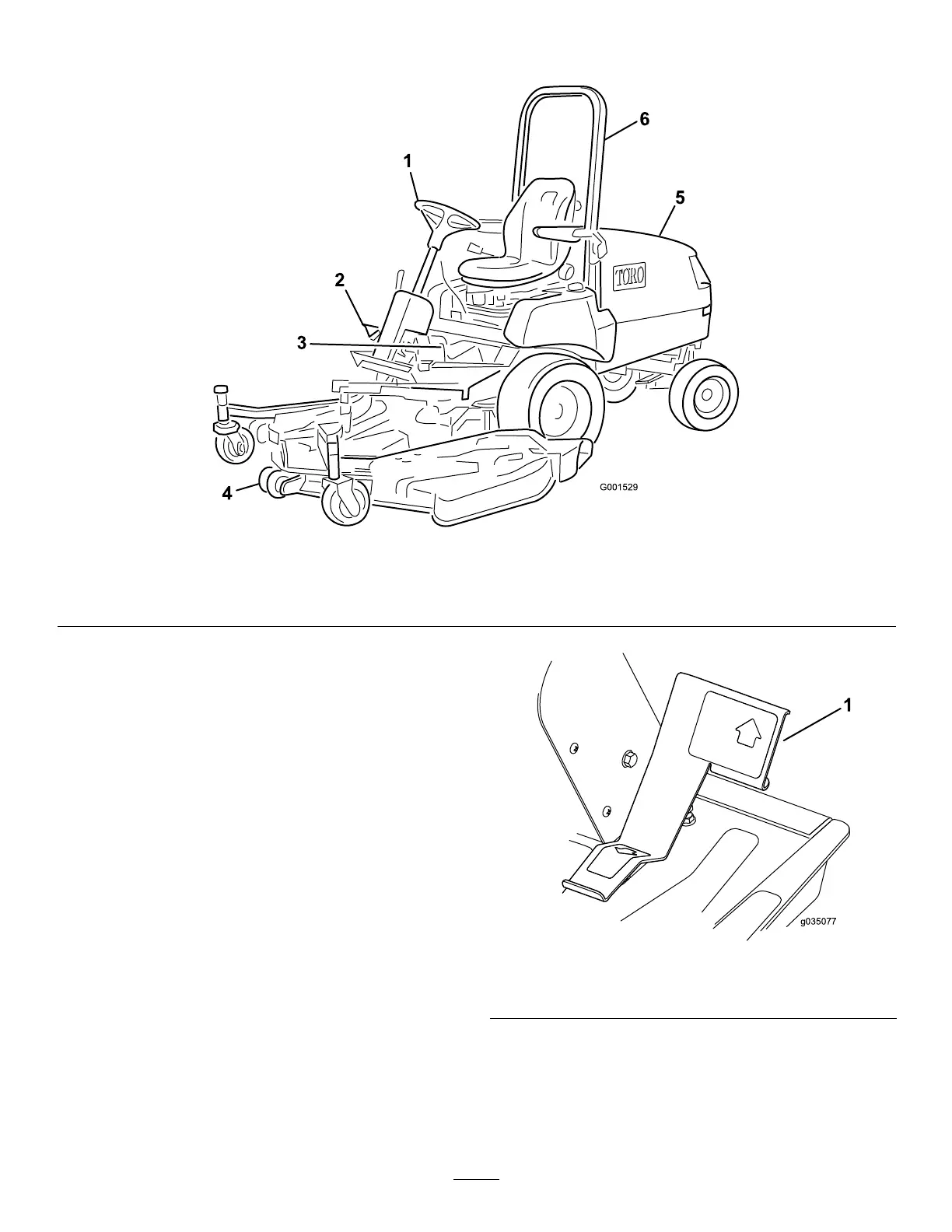

g001529
Figure14
1.Steeringwheel
3.Brakes
5.Hood/enginecompartment
2.Tractionpedal
4.Cuttingunit
6.Rollbar
Controls
TractionPedal
Thetractionpedal(Figure15)makesthemachine
moveforwardandrearward.Usingtheheeland
toeoftherightfoot,pressthetopofthepedalto
moveforwardandthebottomofthepedaltomove
rearward.Thegroundspeedisproportionatetohow
faryoupressthepedal.Formaximumgroundspeed,
youmustfullypresstractionpedalwhilethrottleisin
theFASTposition.Themaximumspeedforwardis
approximately16kp/h(10mph).Togetmaximum
powerunderheavyloadorwhenascendingahill,
havethethrottleintheFASTpositionwhilepressing
tractionpedalslightlytokeeptheenginespeed(rpm)
high.Whentheenginespeedbeginstodecrease,
releasethetractionpedalslightlytoallowtheengine
speedtoincrease.
g035077
Figure15
1.Tractionpedal
Tilt-SteeringControl
Thetilt-steeringcontrolisaleverontherightside
ofthesteeringcolumn(Figure16).Pullthelever
rearwardtoadjustthesteeringwheeltothedesired
20
