AdjustingtheTractionRod
Iftractionpedalrequiresmoreadjustment,adjustthe
tractionrod(Figure77)asfollows:
1.Removetheboltandnutsecuringtractionrod
endtothepedal.
2.Loosenthejamnutthatsecurestherodendto
thetractionrod(Figure77).
3.Rotatetheroduntilyouachievethedesired
length.
4.Tightenthejamnut(Figure77)andsecurethe
rodendtothetractionpedalwiththeboltand
nutremovedtolocktheangleofthefootpedal.

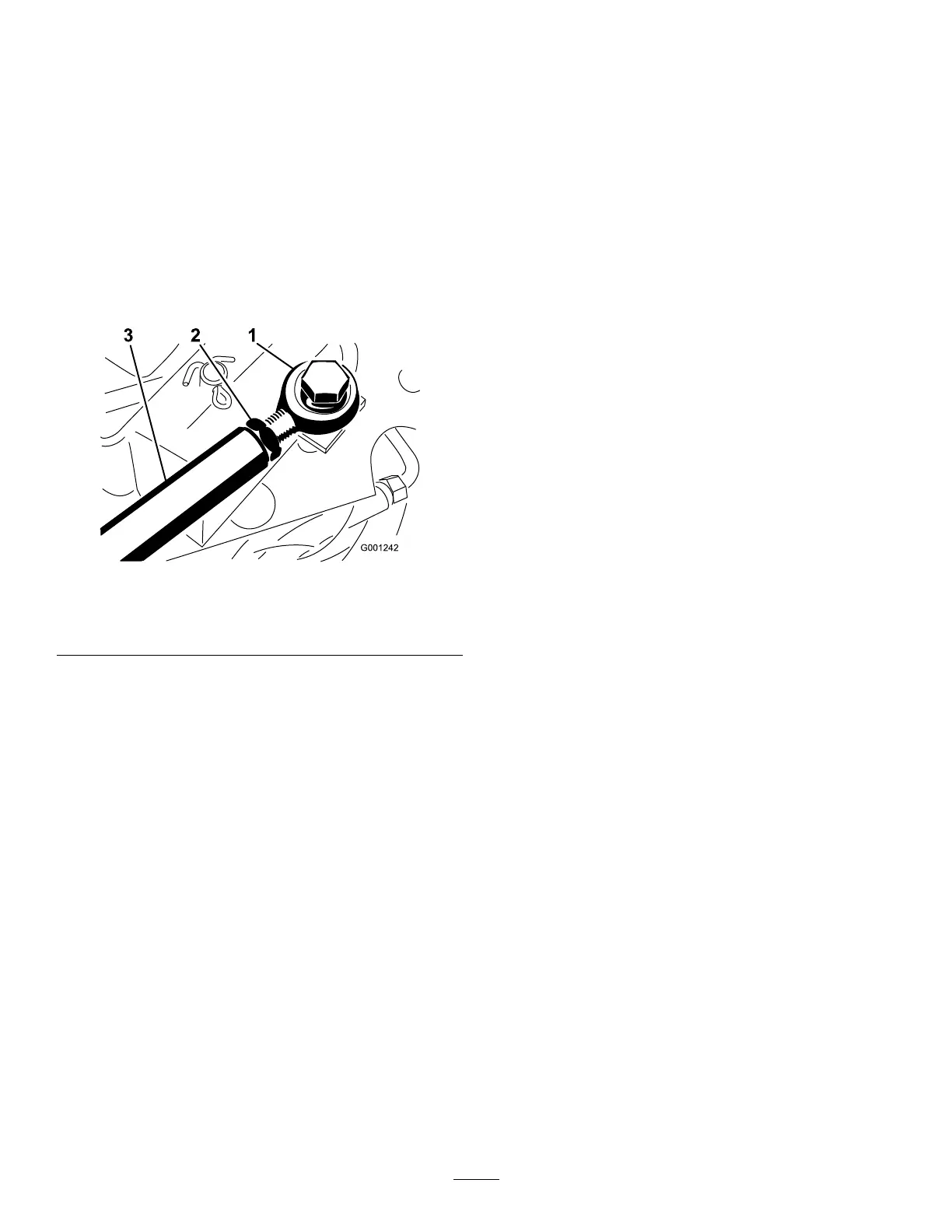

g001242
Figure77
1.Rodend3.Tractionrod
2.Jamnut
HydraulicSystem
Maintenance
HydraulicSystemSafety
•Seekimmediatemedicalattentionifuidisinjected
intoskin.Injecteduidmustbesurgicallyremoved
withinafewhoursbyadoctor.
•Ensurethatallhydraulic-uidhosesandlinesare
ingoodconditionandallhydraulicconnections
andttingsaretightbeforeapplyingpressureto
thehydraulicsystem.
•Keepyourbodyandhandsawayfrompinhole
leaksornozzlesthatejecthigh-pressurehydraulic
uid.
•Usecardboardorpapertondhydraulicleaks.
•Safelyrelieveallpressureinthehydraulicsystem
beforeperforminganyworkonthehydraulic
system.
HydraulicFluid
Specication
Themachinesreservoirislledatthefactorywith
highqualityhydraulicuid.
Hydraulicsystemcapacity:5.6L(6.0qt)
Hydraulicuid-typespecication:
ToroPremiumTransmission/HydraulicTractorFluid
(Availablein5gallonpailsor55gallondrums.Seeparts
catalogorT orodistributorforpartnumbers.)
Alternateuids:IftheT orouidisnotavailable,
youmayuseotherpetroleum-basedUniversal
TractorHydraulicFluids(UTHF)providedthatits
specicationsfallwithinthelistedrangeforallthe
followingmaterialpropertiesandthatitmeetsindustry
standards.Wedonotrecommendtheuseofsynthetic
uid.Consultwithyourlubricantdistributortoidentify
asatisfactoryproduct.
Note:T orodoesnotassumeresponsibilityfor
damagecausedbyimpropersubstitutions,souse
productsonlyfromreputablemanufacturerswhowill
standbehindtheirrecommendation.
