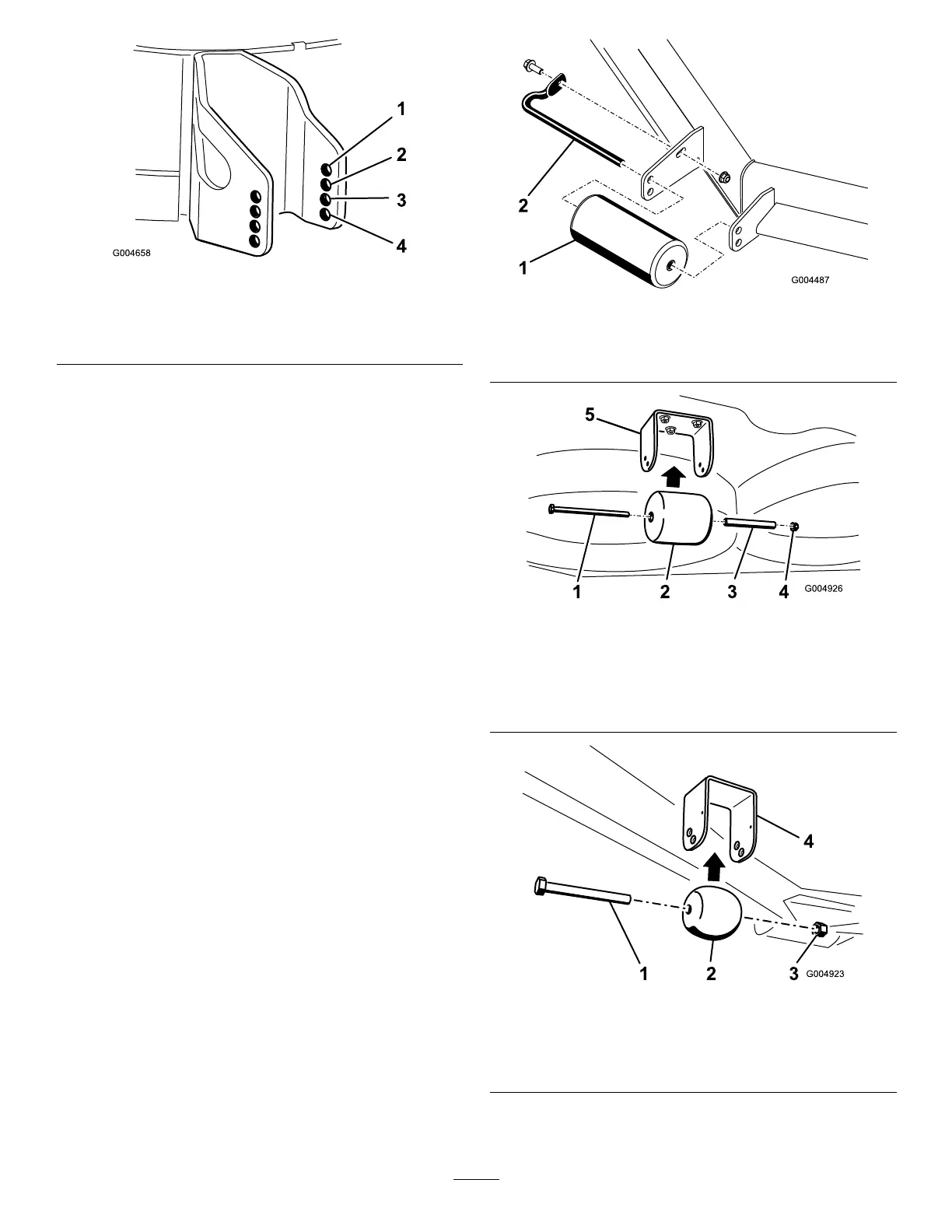

Figure9
1.1-1/2inches(38mm)3.2-1/2inches(63mm)
2.2inches(51mm)4.3inches(76mm)and
higher
5.Installtheangenutbushing,spacer,andbolt.
Torqueto40-45ft-lb(54-61N⋅m)(
Figure8).
AdjustingtheRollers
Mounttherollersinthelowerpositionwhenoperating
inheightofcutshigherthan2-1/2inches(64mm)and
inthehigherpositionwhenoperatinginheightofcuts
lowerthan2-1/2inches(64mm).
1.DisengagethePTO,releasethetractionpedaland
settheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stop
theengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Raisethefrontofthemachineandsupportiton
jackstands.
4.Removethefastenerssecuringeachrolleronyour
mowerandmovetherollersupordownasdesired;
referto
Figure10throughFigure14asapplicable
foryourmower.
Figure10
AllMowers
1.Frontroller
2.Rollershaft
Figure11
GuardianMowersOnly
1.Bolt4.Nut
2.Rearunder-mowerroller5.Bracket
3.Spacer
Figure12
GuardianMowerOnly
1.Bolt3.Nut
2.Frontunder-mowerroller4.Bracket
11
