Toro 30447 - Page 35

TractionUnit
ServiceInterval:Every50hours
•Brakeshaftpivotbearings(5)(
Figure37)
•Tractionpedalpivotbushing(1)(Figure38)
•Frontandrearaxlepivotbushings(2)(Figure39)
•Steeringcylinderballjoints(2)(Figure40)
•Tierodballjoints(2)(Figure40)
•Kingpinbushings(2)(Figure40).
Thetopttingonthekingpinshould
onlybelubricatedannually(2pumps).

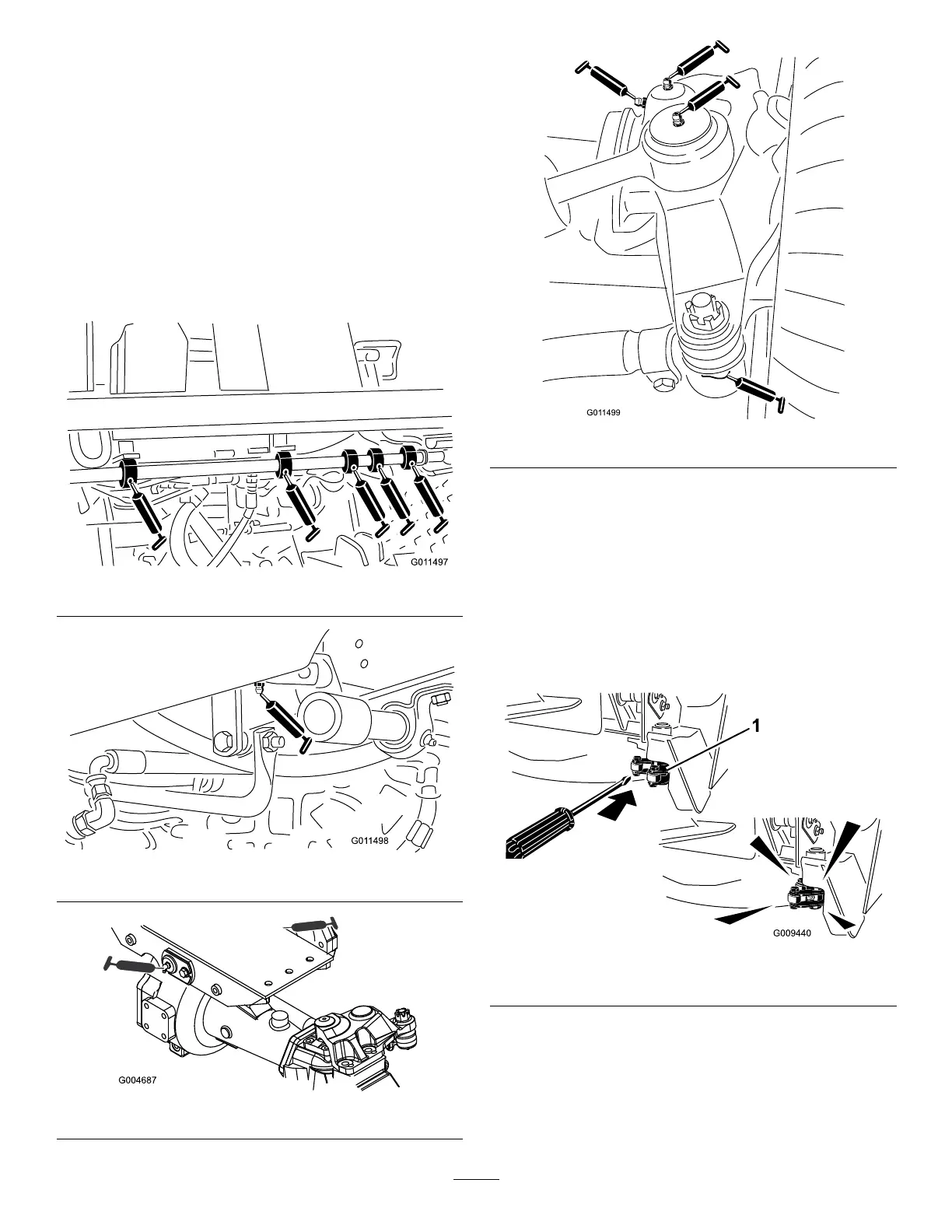

Figure37
Figure38
Figure39
Figure40
CenterCuttingUnit
Note:Deckmayhavetoberaisedtoexposethegrease
ttingsforthelatchpivotandthelowerlink.
•Latchpivot(2)(
Figure42)
Note:Thelatch(Figure41)mayneedtobe
manuallytrippedtogainaccesstothegreasetting.
Useaprybartocloseandre-openthelatch
Figure41
1.Latch
35
